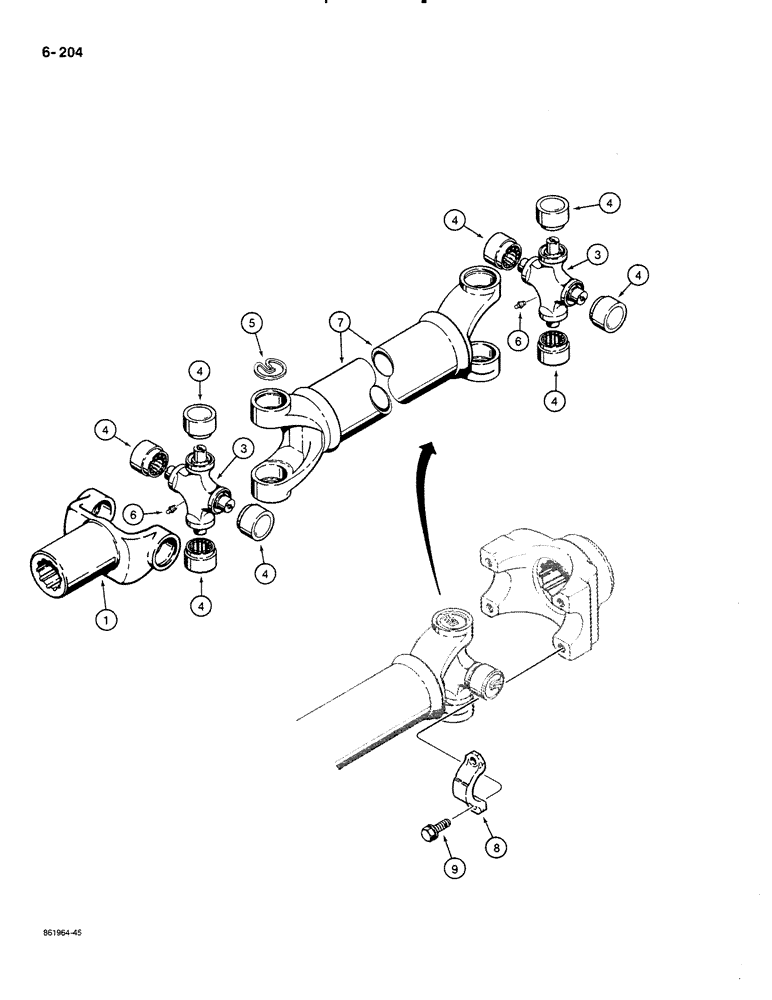

Запчасти Case 580K (06-204) - DRIVE SHAFT, POWER SHUTTLE TO TRANSAXLE (06) - POWER TRAIN

D133167

DRIVE SHAFT

SHAFT ASSEMBLY drive, to transaxle, Includes: Ref. 1 thru 7

1шт.

If placing an order for P/N D133167 for a four wheel drive unit, P/N N6834 must also be ordered.

1шт.

1

N9815

YOKE

end, to transaxle, Includes: Ref. 2

1шт.

The only difference between P/N N9815 and P/N N6834 is the length. P/N N9815 is 4.13" from center of cross holes to end of splined section of yoke. P/N N6834 is 3.3".

1шт.

P/N N9815 yoke is for 2 wheel drive tractors, P/N N6834 is for 4 wheel drive.

1шт.

2

N13653

PLUG

grease, not shown

1шт.

N14230

KIT

universal joint, Includes: Ref. 3 thru 6

2шт.

3

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

5

11256

SNAP RING

retaining

4шт.

6

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4"-28 NF taper

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT drive, power shuttle

1шт.

8

D124146

CLAMP

STRAP bearing

2шт.

9

D124151

BOLT

special

4шт.
