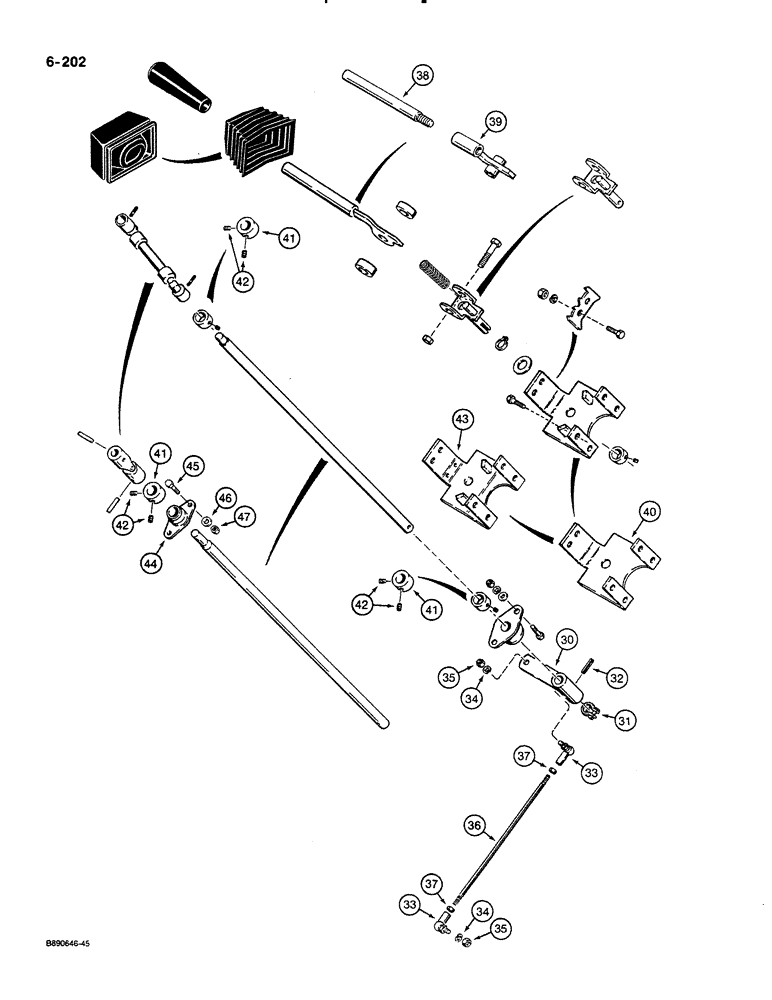

Запчасти Case 580K (06-202) - SHUTTLE CONTROL AND LINKAGE, USED ON MODELS WITH TILT/TELESCOPING STEERING COLUMN (06) - POWER TRAIN

30

D138713

LEVER

shuttle, lower

1шт.

31

D71880

CLAMP,22.23mm

adjustable, includes hardware

1шт.

32

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

1шт.

33

D63154

JOINT,1/4" - 28 x 1-1/3"

ball, 1/4"

2шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

35

129-121

NUT,1/4"-28, G5

2шт.

36

D143423

ROD

lever to power shuttle

1шт.

37

129-121

NUT,1/4"-28, G5

2шт.

38

D143608

ROD

pivot, shuttle control lever

1шт.

39

D143607

ARM

BRACKET pivot

1шт.

40

D144550

PLATE

BRACKET mounts to tilt/telescoping steering column, without stop blocks, if used

1шт.

41

D142939

COLLAR

ASSEMBLY locking, with 5/16" set screw, Includes: Ref. 42

2шт.

42

D143603

SET SCREW,5/16" - 18 x 8mm

set, torx socket headless, 5/16"-18 NC x 5/16", cup point, special

2шт.

43

D143765

BRACKET

mounts to tilt/telescoping steering column, with stop blocks, if used

1шт.

44

L15401

BEARING,15.89mm ID

Ref. 18A shuttle rod, in Figure 06-200

1шт.

45

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

46

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

47

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
