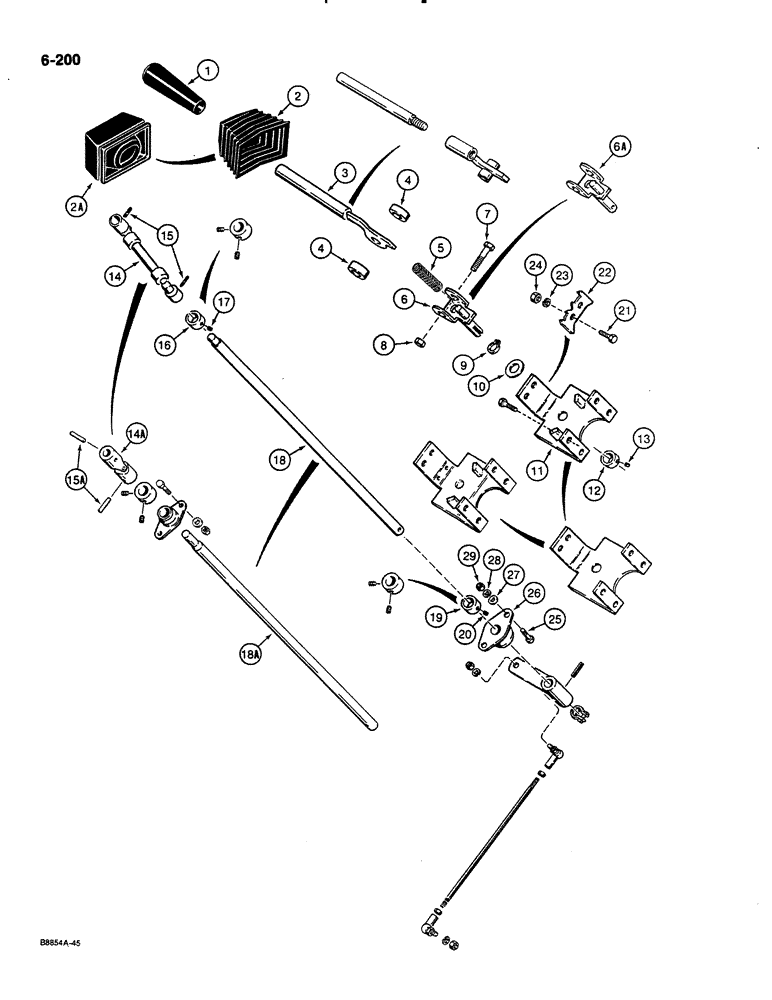

Запчасти Case 580K (06-200) - SHUTTLE CONTROL AND LINKAGE, USED ON MODELS WITH TILT/TELESCOPING STEERING COLUMN (06) - POWER TRAIN

1

D86694

KNOB

shuttle control lever

1шт.

2

D138175

BOOT

shuttle control rod, no longer available, order P/N D141958 boot

1шт.

2a

D141958

BELLOWS

BOOT shuttle control rod

1шт.

3

D138567

ARM

ROD pivot, shuttle control lever, no longer available, order P/N D143607 bracket and P/N D143608 rod, Ref. 38 and 39 in Figure 06-202

1шт.

4

D139015

SPACER

P/N D138567 pivot rod

2шт.

5

D124906

SPRING

detent

1шт.

6

D138338

LEVER ASSY.

CLEVIS rod, upper, with slot for key, Ref. 15, if used

1шт.

6a

D143768

ROD ASSY.

CLEVIS rod, upper, with hole for groove pin, Ref. 15A, if used

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

8

131-217

LOCK NUT

NUT light hex, self-locking, 3/8"-16 NC

1шт.

9

D95095

RING

RETAINER clevis

1шт.

10

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

11

D138382

PLATE

BRACKET mounts to tilt/telescoping steering column, with stop blocks, no longer available, order P/N D144550 bracket , Ref. 40 in Figure 06-202

1шт.

12

D138366

COLLAR

ASSEMBLY locking, used with Ref. 6 clevis, if used, Includes: Ref. 13

1шт.

13

178-882

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex socket, self-locking, 1/4"-20 NC x 3/8", cup point

1шт.

14

D144553

SHAFT ASSY.

JOINT, U, double, used with Ref. 18 rod, if used

1шт.

14a

D143767

JOINT

U, shuttle rod, used with Ref. 18A rod, if used

1шт.

15

D138592

KEY

square lock, 1/8", used with Ref. 6 clevis, if used

2шт.

15a

135-341

GROOVED PIN,3/16" x 1", Type F

Pin, Grooved, , Used with Ref. 6A clevis, if used 3/16" x 1", Type F

2шт.

16

D81756

COLLAR

ASSEMBLY locking, with 1/4" set screw, no longer used, order P/N D142939 collar, Ref. 41 in Figure 06-202, Includes: Ref. 17

1шт.

17

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex headless, 1/4"-20 NC x 1/4", cup point, plated

1шт.

18

D138460

ROD

lower, shuttle control, used with Ref. 14 U-joint, if used

1шт.

18a

D143766

ROD

lower, shuttle control, used with Ref. 14A U-joint, if used

1шт.

19

D81756

COLLAR

ASSEMBLY locking, with 1/4" set screw, no longer used, order P/N D142939 collar, Ref. 41 in Figure 06-202, Includes: Ref. 20

1шт.

20

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex headless, 1/4"-20 NC x 1/4", cup point, plated

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

22

D140692

LARGE PLATE

PLATE detent

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

26

L15401

BEARING,15.89mm ID

steering valve bracket

1шт.

27

195-103

WASHER,5/16"

flat, , plated 5/16"

2шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

2шт.
