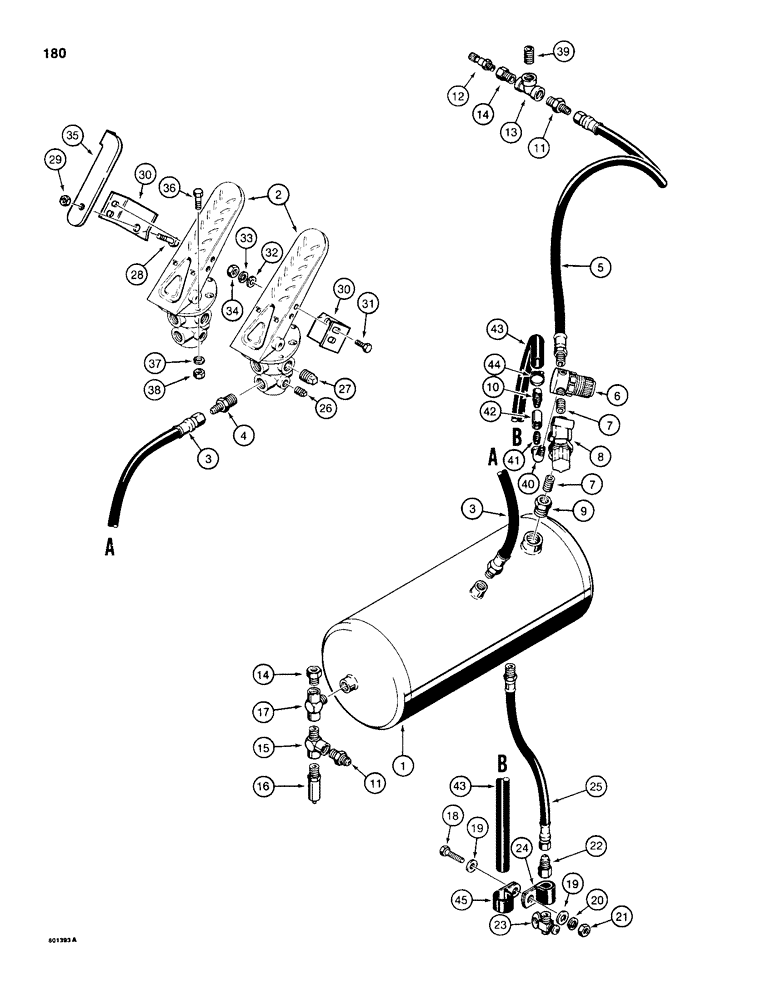

Запчасти Case 680H (180) - BRAKE SYSTEM, RESERVOIR TO PRESSURE VALVES AND TREADLES (07) - BRAKES

1

L57152

RESERVOIR ASSY.

TANK - air reservoir, for tank mounting see Figure 179A

1шт.

2

REF

INSTRUCTION

TREADLE - brake valve, parts list Figure 194

2шт.

3

L103343

HOSE,9.52 mm ID x 330.20 mm

Treadle Valve to Air Reservoir 9.52 mm ID x 330.20 mm

1шт.

4

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

5шт.

5

L106579

HOSE

- air supply, 36" (924 mm) long

1шт.

6

L72409

LOCK VALVE

VALVE - pressure reduction, parts list Figure 186

1шт.

7

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1"

2шт.

8

REF

INSTRUCTION

VALVE - pressure protection, parts list Figure 196

1шт.

9

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

ADAPTER - 1/2" NPT

1шт.

10

D38663

VENT

RELIEF VALVE - hydraulic reservoir

1шт.

11

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight, 1/4" x 1/4"

2шт.

12

L51311

LOCK VALVE

VALVE - hydraulic reservoir

1шт.

13

221-422

TEE,Pipe, 1/4" NPT

- pipe

1шт.

14

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

ADAPTER - 1/4" to 1/8" NPT

2шт.

15

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- pipe

1шт.

16

L48992

VALVE,1/4"

- safety

1шт.

17

217-1141

TEE,1/4"-18 Female x 1/4"-18 Male Br

- pipe

1шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

22

218-1032

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, Fem Pipe

CONNECTOR - female, 1/2" NPT x 1/2"

1шт.

23

L100385

COCK

VALVE - drain

1шт.

24

NLS

NO LONGER SERVICED

CLAMP - hose

1шт.

25

L103354

HOSE,6.35 mm ID x 406.40 mm

Drain 6.35 mm ID x 406.40 mm

1шт.

26

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4"

4шт.

27

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2"

4шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

29

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

30

L71273

BRACKET

- locking bar

2шт.

31

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

32

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

34

129-724

NUT

- hex, 1/4" - 20 NC

2шт.

35

L71180

BAR

- locking

1шт.

36

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

37

92-5

LOCK WASHER,5/16"

6шт.

38

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

6шт.

39

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - fitting

1шт.

40

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- 90 degree

1шт.

41

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - fitting

1шт.

42

221-326

COUPLING,Pipe, 1/8" NPT

ADAPTER - straight

1шт.

43

L53607

HOSE,127.00 mm ID x 762.00 mm, SAE 30R2 Type 3

15.9 mm ID x 762.00 mm, SAE 30R2, Type 3, Drain

1шт.

44

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

1шт.

45

R21385

CLAMP

- support

1шт.
