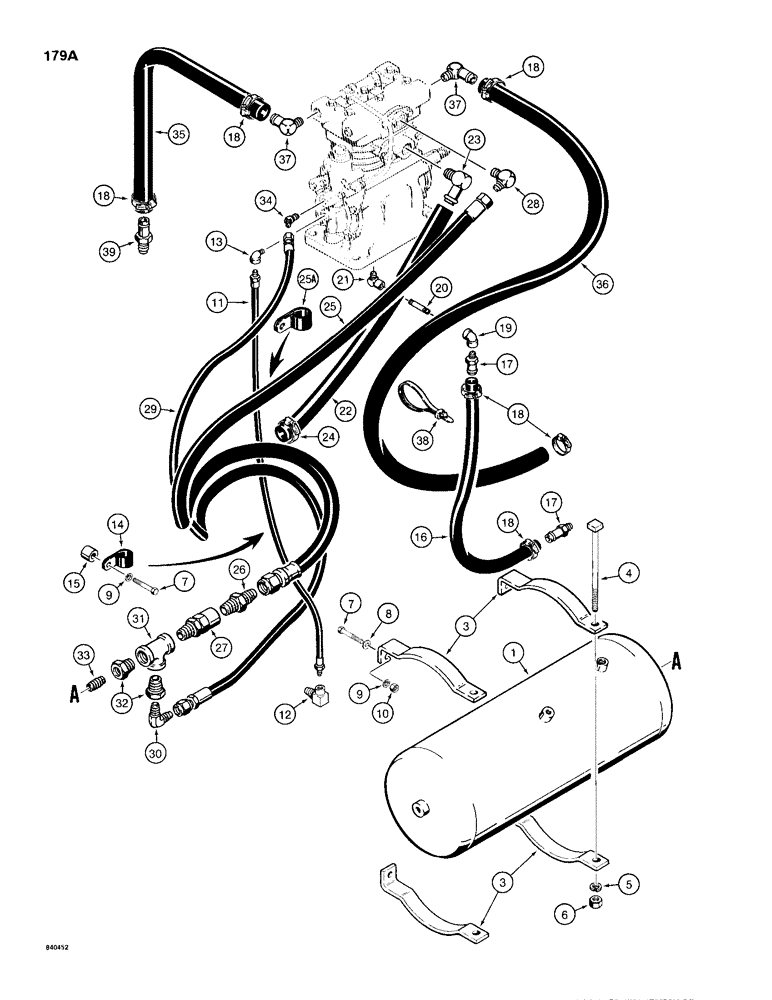

Запчасти Case 680H (179A) - BRAKE SYSTEM, RESERVOIR AND LINES (07) - BRAKES

1

L57152

RESERVOIR ASSY.

RESERVOIR - air

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - tank mounting, not shown, order Refs. 3-6 for service, Includes: Ref. 3 - 6

2шт.

3

L32871

SUPPORT

BRACKET - tank mounting

4шт.

4

17-696

BOLT,Sq Hd, 3/8" - 16 x 6", Gr 2

- square head, 3/8" - 16 NC x 6"

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2U

5шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

9

92-6

LOCK WASHER,3/8"

5шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

5шт.

11

L57976

HOSE ASSY.

HOSE - lubrication, 28" (711 mm) long

1шт.

12

L100969

FITTING

ELBOW - special

1шт.

13

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- 90 degree

1шт.

14

49838

CLAMP

- hose

1шт.

15

B18083

BUSHING

SPACER - pipe

1шт.

16

L71252

HOSE,12.7 mm ID x 508.00 mm, SAE 30R2 Type I

12.7 mm ID x 508.00 mm, SAE 30R2, Type I, Air Compressor Oil Return

1шт.

17

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

NIPPLE - 3/8" NPT x 1/2" long

2шт.

18

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

6шт.

19

221-376

ELBOW,90 Degree, 3/8" NPT

- 90 degree

1шт.

20

221-167

PIPE,Nipple, 3/8" NPT x 3 1/2"

NIPPLE - 3/8" NPT x 3-1/2" long

1шт.

21

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

- hose, 90 degree

1шт.

22

L74393

HOSE,0.75" ID x 15.00", SAE 20R1

Intake, Air Cleaner to Air Compressor 0.75" ID x 15.00", SAE 20R1

1шт.

23

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

- hose, 90 degree

1шт.

24

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

25

L103361

HOSE,0.50" ID x 62.00", SAE J1402

Air Compressor to Air Outlet 0.50" ID x 62.00", SAE J1402

1шт.

25a

R13931

CLAMP

- hose, air compressor air outlet

1шт.

26

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - straight, 1/2" NPT

1шт.

27

G45437

LOCK VALVE

CHECK VALVE - air compressor discharge

1шт.

28

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

29

L70915

HOSE ASSY.,0.25" ID x 64.00", SAE 1402 Type B

HOSE ASSY, 0.25" ID x 64.00", SAE 1402, Type B, To Governor

1шт.

30

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

1шт.

31

221-1424

TEE,Pipe, 1/2" NPT

- pipe

1шт.

32

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

ADAPTER - 1/2" NPT x 1/4" NPT

2шт.

33

221-1130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 1/4" NPT x 7/8" long

1шт.

34

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree

1шт.

35

L78846

HOSE ASSY.

HOSE - air compressor water supply, 25" (635 mm) long

1шт.

36

L106086

HOSE

- air compressor water return, 39" (991 mm) long, used before tractor SN 9145602, except not used on tractor SN 9145600

1шт.

36

L78847

HOSE - air compressor water return, 52" (1321 mm) long, used on tractor SN 9145600, 9145602, and after

1шт.

37

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

ELBOW - 90 degree, 3/8" NPT

2шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

39

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

CONNECTOR - 3/8" NPT x 5/8"

1шт.
