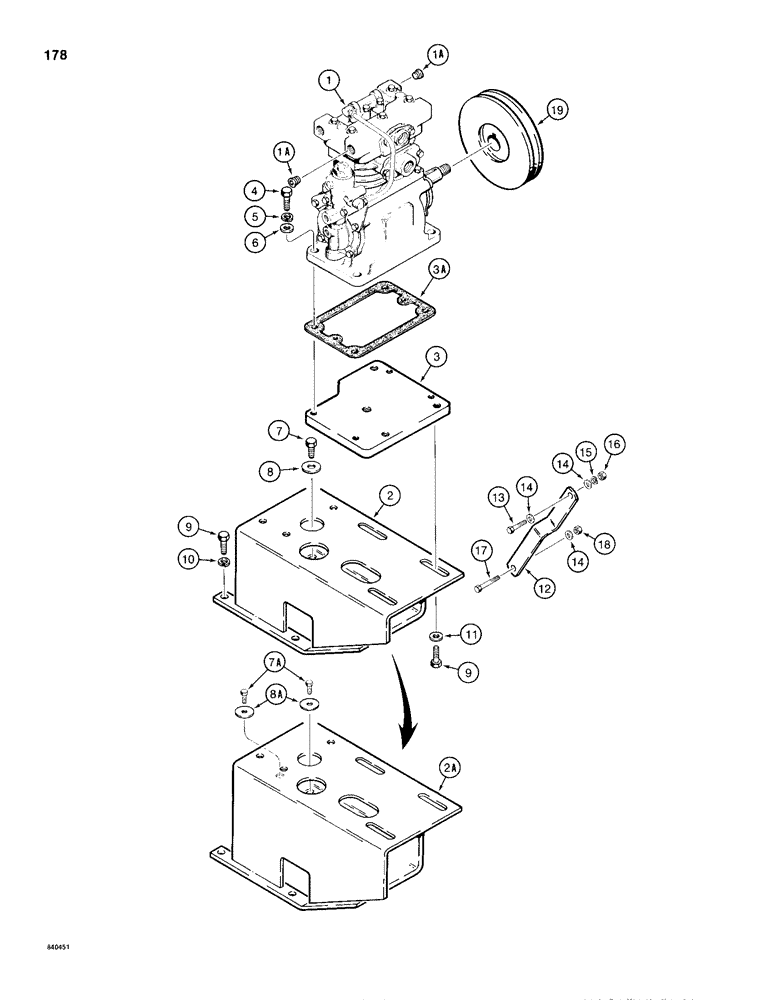

Запчасти Case 680H (178) - BRAKE SYSTEM, AIR COMPRESSOR MOUNTING (07) - BRAKES

1

REF

INSTRUCTION

AIR COMPRESSOR - brake, parts list Figure 188

1шт.

1a

221-1843

PLUG

- hex socket head, 3/8" NPT

2шт.

2

L103414

BRACKET

- air compressor mounting, used before tractor SN 9150700

1шт.

2a

L60898

BRACKET - air compressor mounting, used on tractor SN 9150700 and after

1шт.

3

L103411

PLATE ASSY.

PLATE - air compressor mounting

1шт.

3a

D80610

GASKET

- compressor to mounting plate

1шт.

4

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-7

LOCK WASHER,7/16"

4шт.

6

195-2043

WASHER,1/2" x 1 1/16" x .134"

- flat, 7/16"

4шт.

7

26-716

BOLT,Hex, 7/16" - 14 x 1", Gr 8

- hex head, 7/16" - 14 NC x 1", used with L103414 bracket

1шт.

7a

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex head, 3/8" - 14 NC x 1", used with L60898 bracket

2шт.

8

L79092

WASHER

- 7/16", special, used wth L103414 bracket

1шт.

8a

D41740

WASHER

- 3/8", special, used with L60898 bracket

2шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

R24718

WASHER

- special

3шт.

12

L103839

STRAP - bracket support, used before tractor SN 9150700

1шт.

12

L60899

STRAP

- bracket support, used on tractor SN 9150700 and after

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

17

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

1шт.

18

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

19

L73154

PULLEY

- air compressor

1шт.
