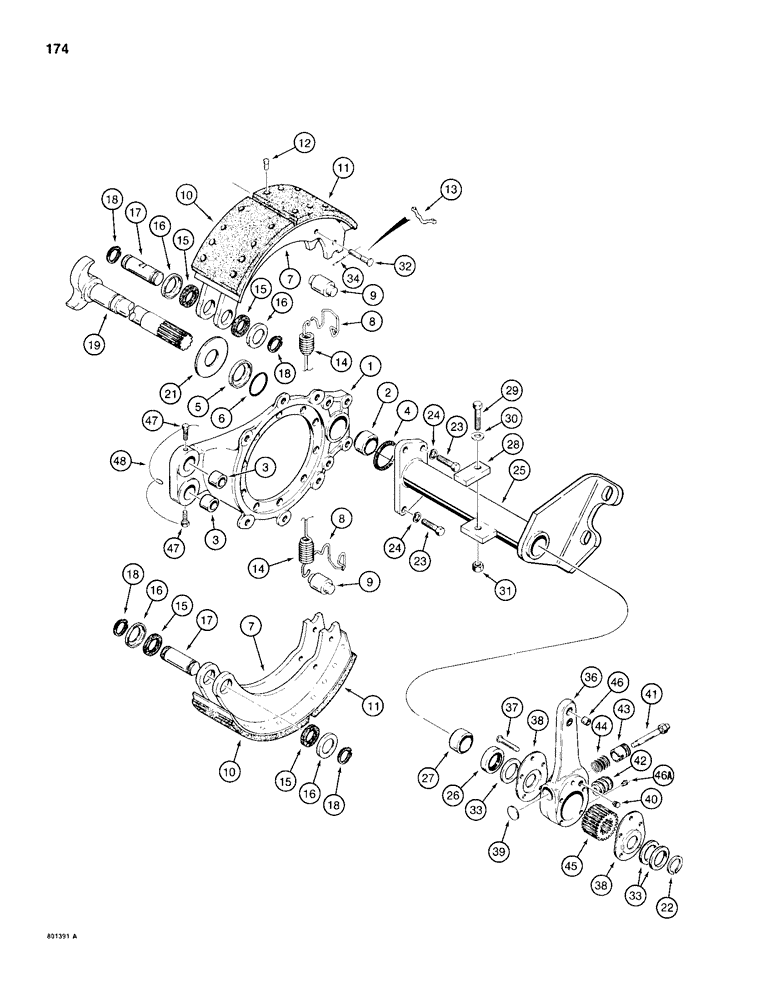

Запчасти Case 680H (174) - L61205 REAR AXLE, REAR BRAKES AND ADJUSTERS (06) - POWER TRAIN

L61205

CENTER AXLE

AXLE ASSEMBLY - complete, rear, Rockwell No. PRS-264-P104/15.59, Includes: Ref. 1 - 46B

1шт.

D87282

BRACKET

ASSEMBLY - brake mounting, Includes: Ref. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - brake

1шт.

2

L35560

BUSHING

- cam

1шт.

3

D77629

BUSHING

- brake pin

2шт.

4

S89827

GASKET

- bracket assembly

1шт.

5

D77627

RETAINER

- O-ring

1шт.

6

D77626

O-RING

- shaft seal

1шт.

D86576

SHOE (ASSY)

SHOE AND LINING ASSEMBLY - brake, Includes: Ref. 7 - 13

4шт.

7

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

8

L35589

RETAINER

- roller

1шт.

9

L35590

ROLLER

- shoe

1шт.

10

NSS

NOT SOLD SEPARAT

LINING - shoe, anchor end

1шт.

Part of kit P/N D66415.

1шт.

11

NSS

NOT SOLD SEPARAT

LINING - shoe, cam end

1шт.

Part of kit P/N D66415.

1шт.

12

NSS

NOT SOLD SEPARAT

RIVET - brake lining

16шт.

Part of kit P/N D66415.

1шт.

13

L35588

AXLE PIN

PIN - anchor, alternate to Ref. 32, if used

1шт.

14

D87283

SPRING

- return, brake shoe

2шт.

15

L35566

FELT

- anchor pin

8шт.

16

L35567

CAP

RETAINER - felt

8шт.

17

D77625

AXLE PIN

PIN - anchor, brake shoe

4шт.

18

F62020

SNAP RING,#125, Ext

Ring, Snap, , anchor pin #125, Ext

8шт.

19

L35961

SHAFT

CAM AND SHAFT - left-hand brake adjustment

1шт.

20

L35962

SHAFT

CAM AND SHAFT - right-hand brake adjustment, not shown

1шт.

21

L35706

WASHER

- flat, cam head

2шт.

22

R13338

SNAP RING,#150, Ext

Ring, Snap, , cam groove #150, Ext

2шт.

23

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

24

92-8

LOCK WASHER,1/2"

8шт.

D87279

BRACKET

ASSEMBLY - mounting, left-hand brake chamber, not shown, Includes: Ref. 25 - 27

1шт.

D87280

BRACKET

ASSEMBLY - mounting, right-hand brake chamber, not shown, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

BRACKET - mounting, brake chamber, right-hand or left-hand

1шт.

26

N6395

OIL RESERVOIR

OIL SEAL - bracket

1шт.

27

L35560

BUSHING

- cam and shaft

1шт.

D66415

BRAKE LINE

KIT - brake lining and rivets, for two wheels, Includes: Ref. 10, 11 and 12

1шт.

28

L35577

PLATE ASSY.

PLATE - mounting, chamber bracket, welded to axle housing

2шт.

29

26-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8

- hex head, 9/16" - 12 NC x 1-3/4", grade 8

2шт.

30

N6183

WASHER

- special

2шт.

31

25-109

NUT,9/16"-12, G5

- hex, 9/16" - 12 NC

2шт.

32

L35705

AXLE PIN

PIN - anchor, alternate to Ref. 13, if used

4шт.

33

L35573

WASHER

- special

1шт.

34

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), , If used 3/32" x 1"

4шт.

35

S89827

GASKET

- bracket, not shown

2шт.

L35572

ADJUSTER

- slack, brake shoe, may be riveted or welded construction, Includes: Ref. 36 - 46B

2шт.

Bushing L35602 and grease fitting 219-1 are the only items serviced on welded slack adjuster assemblies.

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - adjuster

1шт.

37

L35598

RIVET

- adjuster body

10шт.

38

L35600

COVER ASSY

COVER - adjuster gear

2шт.

39

41-10

PLUG

- expansion, 5/8"

1шт.

40

L35597

AXLE PIN

PIN - lock

1шт.

41

L35594

SHAFT

- drive, worm gear

1шт.

42

L35595

GEAR WHEEL

DRIVE GEAR - worm

1шт.

43

L35593

LOCK ASSY

LOCK - worm gear shaft

1шт.

44

L35592

VALVE SPRING

SPRING - lock, worm

1шт.

45

L35601

GEAR WHEEL

DRIVEN GEAR - worm, splined

1шт.

46

L35602

BUSHING

- adjuster body

2шт.

Bushing L35602 and grease fitting 219-1 are the only items serviced on welded slack adjuster assemblies.

1шт.

46a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

Bushing L35602 and grease fitting 219-1 are the only items serviced on welded slack adjuster assemblies.

1шт.

46b

221-1849

PLUG

- 1/8" NPT, hex socket head, not shown

1шт.

47

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

SCREW - lock, anchor pin

4шт.

48

391-751

ELECTRICAL WIRE

WIRE - lock, anchor pin lock screw

2шт.
