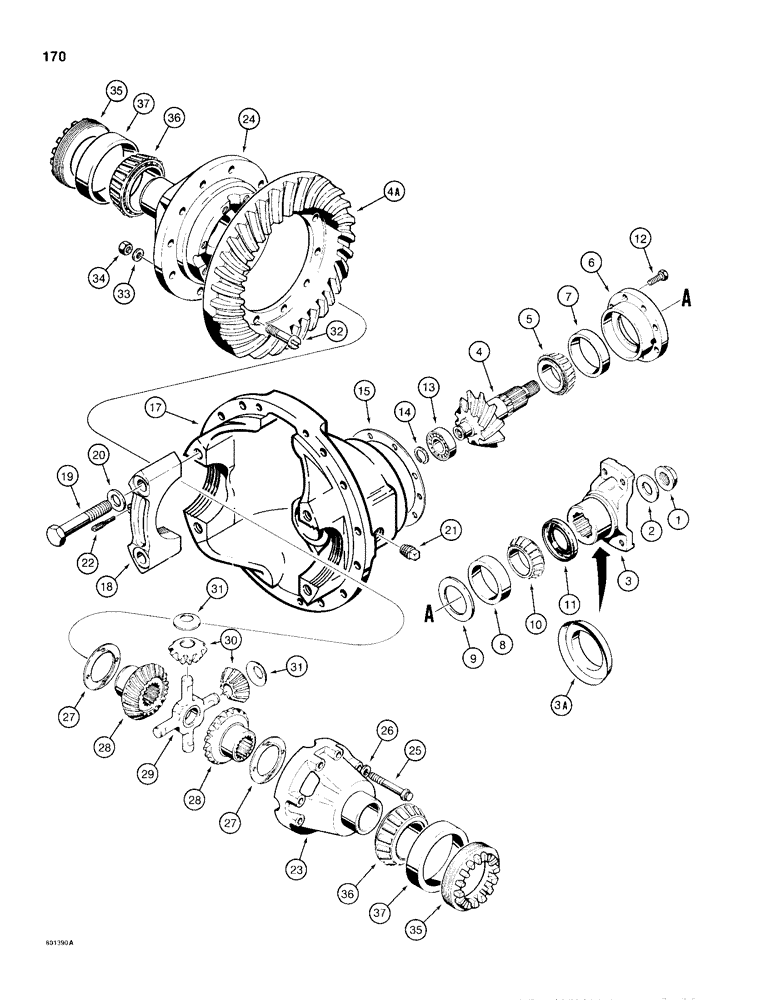

Запчасти Case 680H (170) - L61205 REAR AXLE, DIFFERENTIAL (06) - POWER TRAIN

L61205

CENTER AXLE

AXLE ASSEMBLY - complete, rear, Rockwell No. PRS-264-P104/15.59, Includes: Ref. 1 - 37

1шт.

N7096

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 1 - 31

1шт.

1

L35091

NUT

NUT - hex, yoke to pinion shaft

1шт.

2

A13124

WASHER

- yoke retaining

1шт.

D73687

YOKE

ASSEMBLY - drive shaft, Includes: Ref. 3 and 3A

1шт.

3

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

3a

D73691

COVER

SLINGER - oil, yoke

1шт.

N7097

GEAR WHEEL

GEAR SET - ring gear and pinion gear, Includes: Ref. 4 and 4A

1шт.

4

NSS

NOT SOLD SEPARAT

PINION GEAR - axle

1шт.

4a

NSS

NOT SOLD SEPARAT

RING GEAR - axle

1шт.

5

R10276

ROLLER BEARING,1.686" ID x 1.1669"

TAPERED ROLLER BEARING - inner

1шт.

D73688

BEARING, ROLLER, CYL

CAGE ASSEMBLY - pinion shaft bearing, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

7

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - tapered roller bearing, inner

1шт.

8

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - tapered roller bearing, outer

1шт.

9

D74357

SHIM,.153" Thk

- Spacer, bearing (3.886 mm) .153" Thk

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D74358

SHIM,.154" Thk

- bearing (3.912 mm) .154" Thk

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D74359

SHIM,.155" Thk

- bearing (3.937 mm) .155" Thk

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D74360

SHIM,.156" Thk

Spacer - bearing (3.962 mm) .156" Thk

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D74361

SHIM,.157" Thk

Spacer - bearing (3.988 mm) .157" Thk

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D74362

SHIM,.158" Thk

Spacer - bearing (4.013 mm) .158" Thk

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D74363

SHIM,.164" Thk

Spacer - bearing (4.166 mm) .164" Thk

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D74364

TUBE SPACER

SPACER - bearing, .170" (4.318 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

A18362

RING

SPACER - bearing, .176" (4.470 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D74366

SPACER

- bearing, .182" (4.622 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

10

A13160

ROLLER BEARING,1.4375" ID x 0.933"

TAPERED ROLLER BEARING - outer

1шт.

11

D73689

OIL SEAL

- oil

1шт.

12

26-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

- hex head, 7/16" - 14 NC x 1-1/4"

8шт.

13

D82783

ROLLER BEARING

- inner, drive pinion

1шт.

14

A18199

SNAP RING,#106, Ext

Ring, Snap, , roller bearing #106, Ext

1шт.

15

L33676

DISC

SHIM - bearing cage, .003" (0.76 mm) thick

1шт.

15

L33677

DISC

SHIM - bearing cage, .005" (0.127 mm) thick

1шт.

15

L33678

DISC

SHIM - bearing cage, .010" (0.254 mm) thick

1шт.

16

L33675

SPACER

- pinion, not shown

1шт.

D73630

SUPPORT

CARRIER AND CAP ASSEMBLY - differential, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - differential bearing

2шт.

19

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex head, 5/8" - 11 NC x 3-1/4", grade 8

4шт.

20

L30737

WASHER

- special

4шт.

21

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, fill

1шт.

22

A18196

HARDWARE

COTTER PIN - special, locking

2шт.

N7087

CASE

ASSEMBLY - differential, Includes: Ref. 23 - 31

1шт.

23

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

24

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

25

S114341

BOLT (SPREADER)

BOLT - special

8шт.

26

D47366

WASHER

- special

8шт.

27

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

THRUST WASHER - side gear

2шт.

28

D66304

GEAR

BEVEL GEAR - differential side

2шт.

29

A18181

U-JOINT SPIDER

SPIDER - differential

1шт.

30

A18175

PINION

GEAR - differential

4шт.

31

A18176

DISC

BELLEVILLE SPRING - pinion gear

4шт.

32

A47251

DRIVE SCREW

- special, ring gear to differential case

12шт.

33

D47366

WASHER

- special

12шт.

34

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2" - 20 NF

12шт.

35

A18194

RING

- bearing adjusting

2шт.

36

A18173

ROLLER BEARING

TAPERED ROLLER BEARING - differential

2шт.

37

L35931

BEARING CUP

CUP - tapered roller bearing

2шт.
