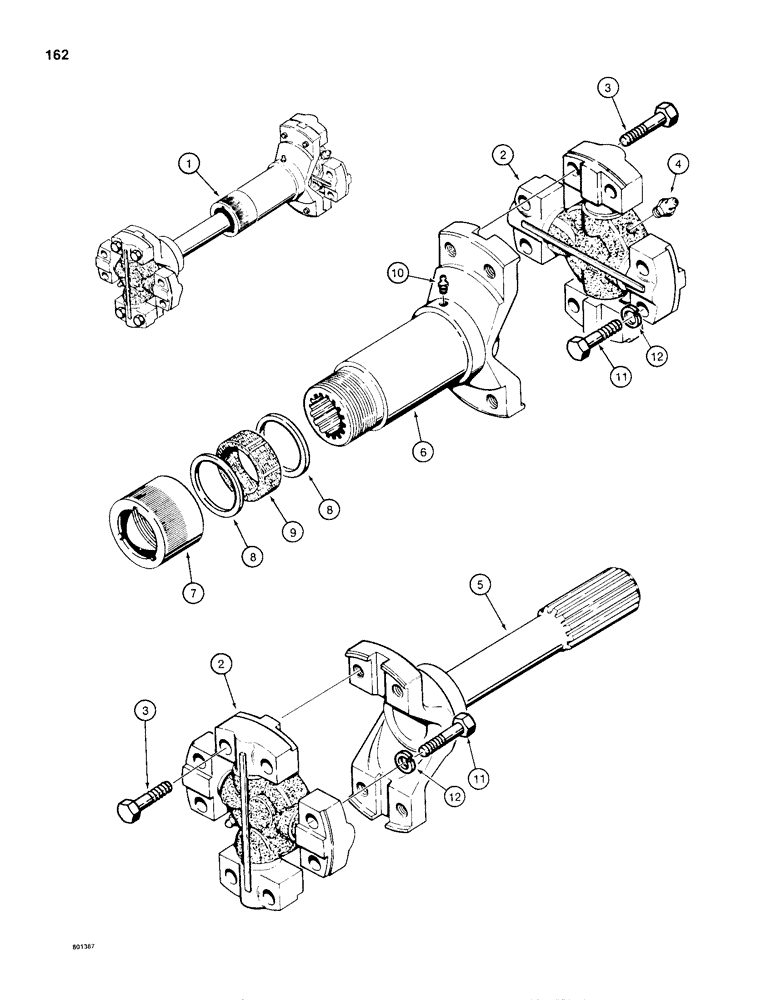

Запчасти Case 680H (162) - L101466 DRIVE SHAFT (06) - POWER TRAIN

1

L101466

SHAFT

DRIVE SHAFT ASSEMBLY - to transaxle, Includes: Ref. 2 - 10

1шт.

L36151

KIT

UNIVERSAL JOINT ASSEMBLY - drive shaft, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - center cross

1шт.

3

A17298

BOLT,Hex, 3/8" x 1 11/16"

- special

4шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

5

N7122

SHAFT

YOKE AND TUBE - external spline

1шт.

D73676

YOKE

SHAFT - internal spline, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

YOKE - sliding

1шт.

7

A19923

CAP

- dust

1шт.

8

D73712

WASHER

- backup

2шт.

9

D73711

FELT SEAL

- felt

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

11

A17298

BOLT,Hex, 3/8" x 1 11/16"

- special

8шт.

12

92-6

LOCK WASHER,3/8"

8шт.
