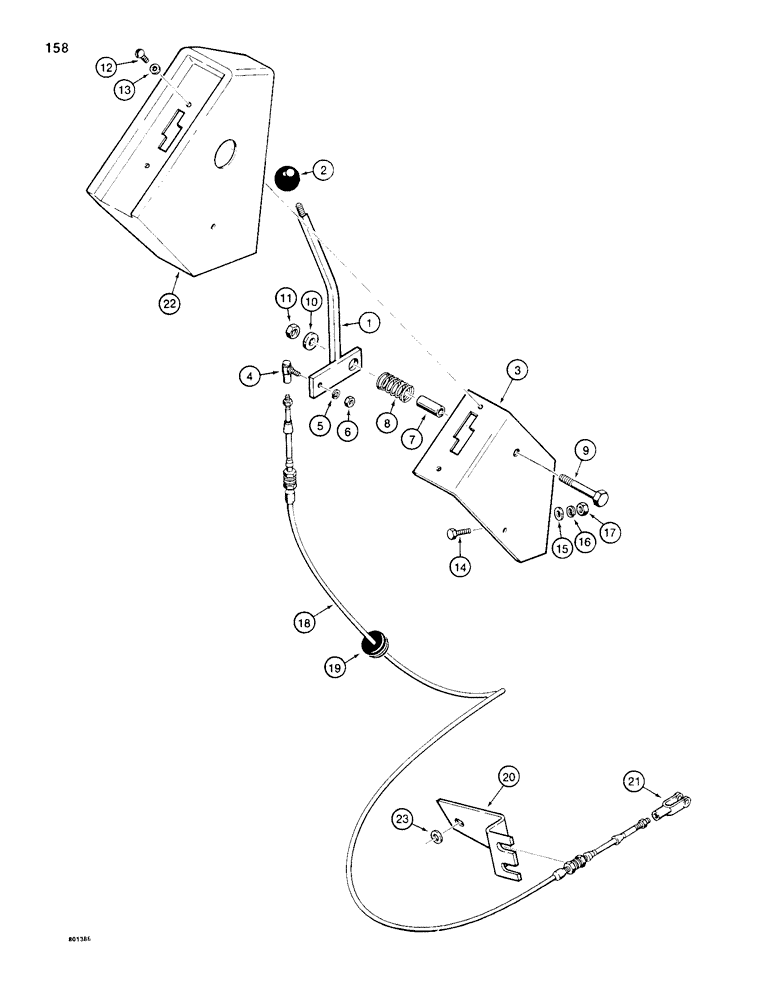

Запчасти Case 680H (158) - TRANSMISSION RANGE CONTROL (06) - POWER TRAIN

1

L101666

LEVER

CONTROL LEVER - range control

1шт.

2

A18852

KNOB

- control lever

1шт.

3

L105156

BRACKET

- mounting, range control lever

1шт.

4

A10329

BALL JOINT,1/4" - 28 x 1"

- control lever

1шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, 1/4" - 20 NC

1шт.

7

L108369

BUSHING

SPACER - control lever mounting

1шт.

8

L101655

VALVE SPRING

SPRING - spacer

1шт.

9

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

10

R24718

WASHER

- special

1шт.

11

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, 1/2" - 13 NC

1шт.

12

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- no. 10 - 24 NC x 3/4"

3шт.

13

F43576

WASHER

- special

3шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

18

L112451

CABLE

- transmission range control

1шт.

19

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

- cable

1шт.

20

L101551

BRACKET

HOLDER - cable shift

1шт.

21

A18709

CLEVIS

- cable

1шт.

22

L105103

COVER

CONSOLE - range control lever, black, if used

1шт.

22

L111760

HOUSING

CONSOLE - range control lever, brown, if used

1шт.

23

95-7

WASHER,7/16"

- flat, 7/16"

2шт.
