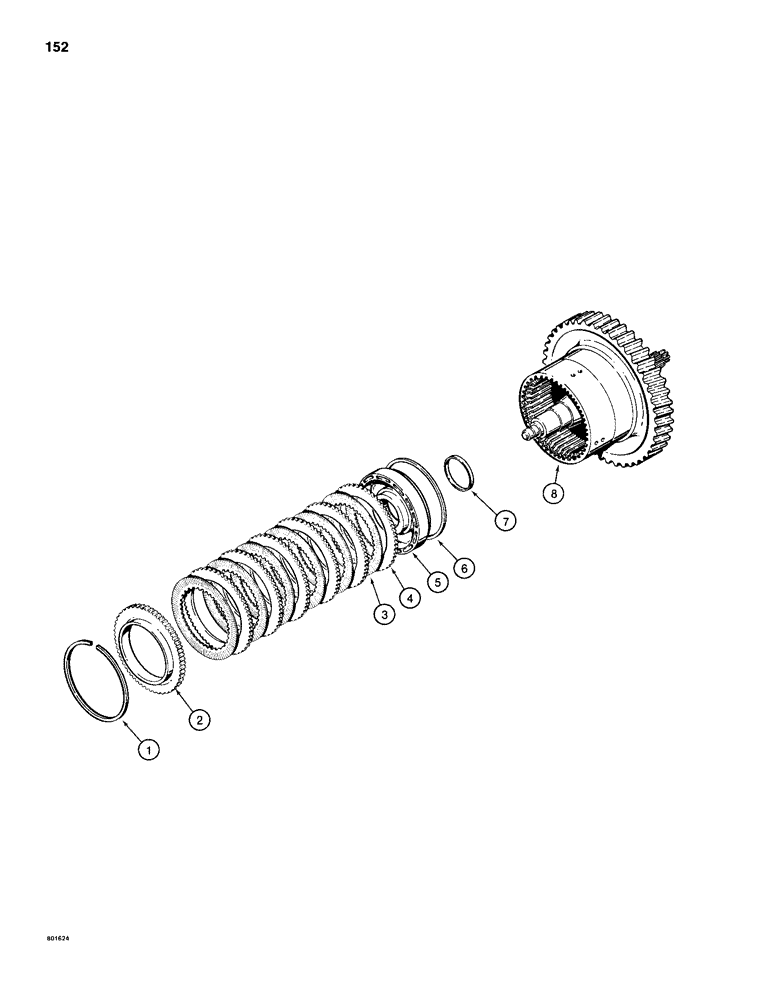

Запчасти Case 680H (152) - TRANSMISSION THIRD CLUTCH SHAFT AND DRUM ASSEMBLY (06) - POWER TRAIN

L101674

TRANSMISSION

ASSEMBLY - forward and reverse, used before tractor SN 9145602, except not used on tractor SN 9145600, Includes: Ref. 1 - 8

1шт.

L109160

TRANSMISSION

ASSEMBLY - forward and reverse, used on tractor SN 9145600, 9145602 and after, Includes: Ref. 1 - 8

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - third, output shaft, Includes: Ref. 1 - 8

1шт.

1

E114380

RING, SNAP

SNAP RING - backing plate

1шт.

2

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

3

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

FRICTION DISC - clutch, inner

6шт.

4

E114383

CLUTCH DISC

DISC - clutch, outer

6шт.

5

E114392

PISTON

- clutch

1шт.

6

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

7

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

8

N7218

GEAR WHEEL

OUTPUT SHAFT AND DRUM - clutch

1шт.
