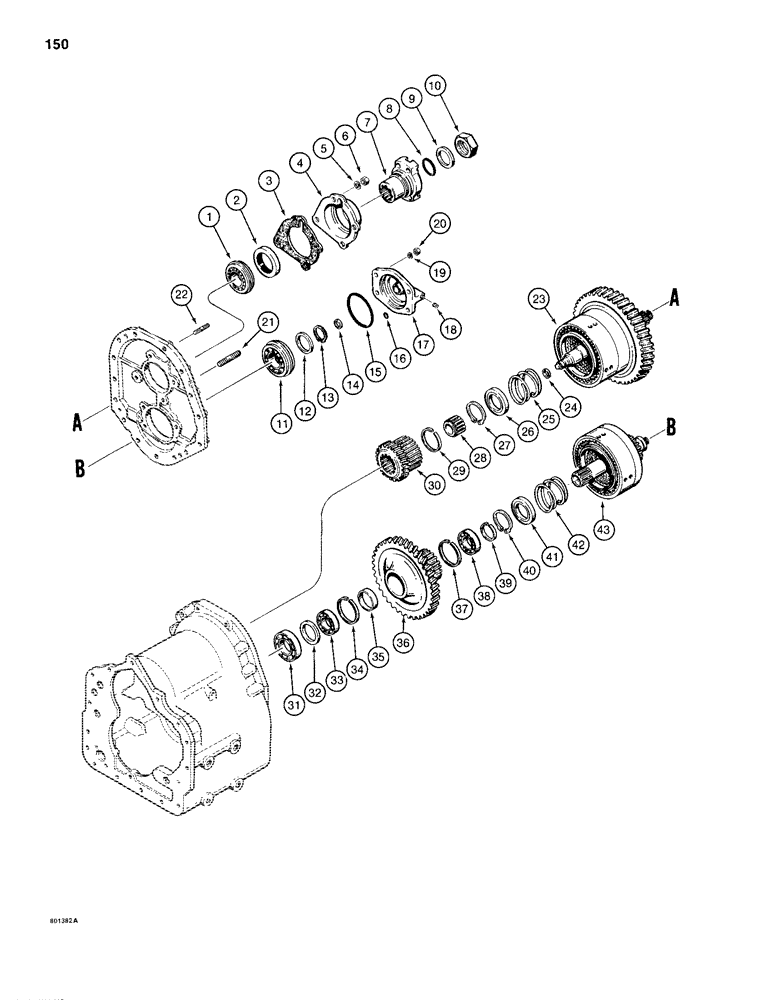

Запчасти Case 680H (150) - TRANSMISSION OUTPUT SHAFT, LOW, AND THIRD GEARS (06) - POWER TRAIN

L101674

TRANSMISSION

ASSEMBLY - forward and reverse, used before tractor SN 9145602, except not used on tractor SN 9145600, Includes: Ref. 1 - 43

1шт.

L109160

TRANSMISSION

ASSEMBLY - forward and reverse, used on tractor SN 9145600, 9145602 and after, Includes: Ref. 1 - 43

1шт.

1

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - rear, output shaft

1шт.

2

E114372

OIL SEAL,53.98mm ID x 79.55mm OD x 9.53mm Thk

OIL SEAL - rear bearing cap

1шт.

3

N7206

GASKET

- bearing cap

1шт.

4

N7207

BEARING CAP

CAP - output shaft rear bearing

1шт.

5

92-9

BEARING WASHER,9/16"

4шт.

6

25-109

NUT,9/16"-12, G5

- hex, 9/16" - 12 NC

4шт.

7

A19928

FLANGE

- output

1шт.

8

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- flange

1шт.

9

A17938

WASHER

- flange, large

1шт.

10

A55863

LOCK NUT

- flange, special

1шт.

11

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

BEARING - rear, low speed shaft

1шт.

12

E114268

BEARING WASHER

WASHER - rear bearing support

1шт.

13

E114334

CLIP

RING - rear bearing retainer

1шт.

14

E114360

RING,16.77mm ID x 19.47mm OD x 3.1mm Thk

PISTON RING - low shaft

1шт.

15

39738

O-RING,4.609" ID x 0.139" Width

- bearing cap, large

1шт.

16

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- bearing cap, rear, small

1шт.

17

N7777

HOUSING

- rear bearing cap

1шт.

18

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Pipe Hex Hd, 3/8"-24 ORB

1шт.

19

92-7

LOCK WASHER,7/16"

4шт.

20

25-117

NUT,7/16"-20, G5

- hex, 7/16" - 14 NC

4шт.

21

N7209

BEARING CAP

STUD - bearing cap

4шт.

22

N7210

STUD

- output bearing cap, rear

4шт.

23

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - third, output shaft, parts list Figure 152

1шт.

24

E114360

RING,16.77mm ID x 19.47mm OD x 3.1mm Thk

PISTON RING - output shaft

1шт.

25

E114331

SPRING

- piston return

1шт.

26

E114332

RETAINER

- spring

1шт.

27

E114328

RING, SNAP

SNAP RING - spring retainer

1шт.

28

N7211

ROLLER CAGE BEARING,38.1mm ID x 47660mm OD x 25.4mm

BEARING - pilot

1шт.

29

S117877

RING

- retainer, third gear

1шт.

30

N7212

HUB

- third gear

1шт.

31

E114340

BALL BEARING

BEARING - front, low speed shaft

1шт.

32

E114341

SPACER

- front bearing

1шт.

33

S89657

BEARING

- gear, low speed

1шт.

34

S89658

RING

- locating, low speed gear

1шт.

35

N7213

SPACER

- low speed gear

1шт.

36

N7214

GEAR

HUB - low gear

1шт.

37

S89658

RING

- bearing

1шт.

38

S89657

BEARING

- low speed gear

1шт.

39

E114334

CLIP

RETAINING RING - bearing

1шт.

40

E114328

RING, SNAP

SNAP RING - spring retainer

1шт.

41

E114332

RETAINER

SPRING - retainer

1шт.

42

E114331

SPRING

- piston return

1шт.

43

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low, parts list Figure 140

1шт.
