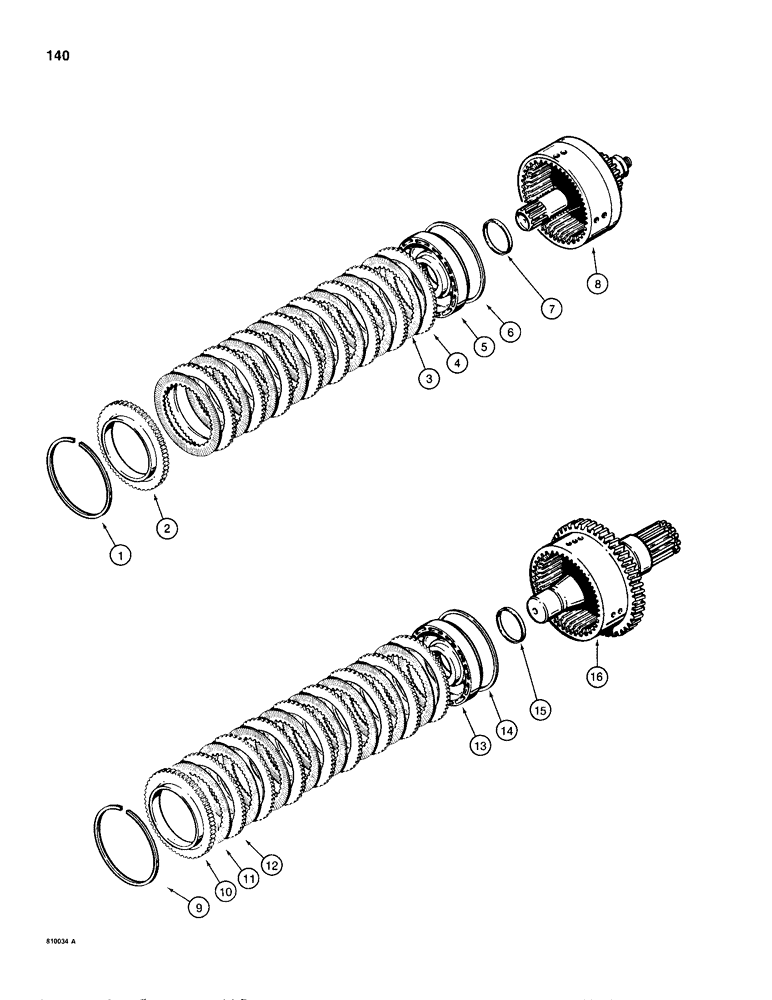

Запчасти Case 680H (140) - TRANSMISSION LOW AND FORWARD CLUTCH ASSEMBLIES (06) - POWER TRAIN

L101674

TRANSMISSION

ASSEMBLY - forward and reverse, used before tractor SN 9145602, except not used on tractor SN 9145600, Includes: Ref. 1 - 16

1шт.

L109160

TRANSMISSION

ASSEMBLY - forward and reverse, used on tractor SN 9145600, 9145602 and after, Includes: Ref. 1 - 16

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low, Includes: Ref. 1 - 8

1шт.

1

E114380

RING, SNAP

SNAP RING - backing plate

1шт.

2

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

3

N7219

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction

8шт.

4

E114383

CLUTCH DISC

DISC - clutch, metal

8шт.

5

E114384

PISTON

- clutch

1шт.

6

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

7

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

8

N7220

DRUM

AND SHAFT - low clutch

1шт.

NSS

NOT SOLD SEPARAT

DRUM AND SHAFT ASSEMBLY - forward, Includes: Ref. 9 - 16

1шт.

9

E114380

RING, SNAP

SNAP RING - backing plate

1шт.

10

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

11

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction

8шт.

12

E114383

CLUTCH DISC

DISC - clutch, metal

8шт.

13

E114384

PISTON

- clutch

1шт.

14

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

15

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

16

51200212

CLUTCH & DISC ASSY

SHAFT - drum, forward

1шт.
