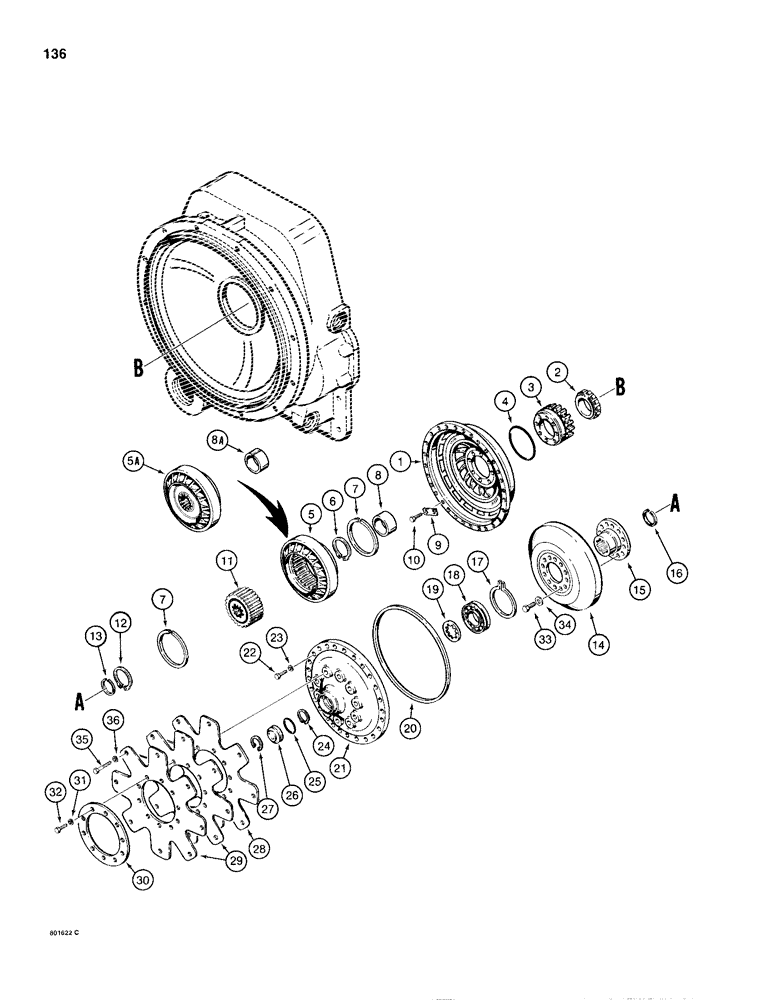

Запчасти Case 680H (136) - TRANSMISSION IMPELLER, TURBINE, AND FLEXPLATE (06) - POWER TRAIN

L101674

TRANSMISSION

ASSEMBLY - forward and reverse, used before tractor SN 9145602, except not used on tractor SN 9145600, Includes: Ref. 1 - 34

1шт.

L109160

TRANSMISSION

ASSEMBLY - forward and reverse, used on tractor SN 9145600, 9145602 and after, Includes: Ref. 1 - 34

1шт.

1

N7192

IMPELLER

- torque converter

1шт.

2

N7257

BEARING, ROLLER, CYL,45mm ID x 74.94mm OD x 18.99mm

BEARING - impeller hub

1шт.

3

N7191

GEAR

- impeller hub

1шт.

4

E114281

O-RING,3.63mm Thk x 92.89mm ID, 75 Duro

- impeller hub

1шт.

5

N7377

MEMBER

HUB - impeller, used with L101674 transmission

1шт.

Part of Clutch and Slator Kit P/N L36228

1шт.

5a

N7688

STATOR

HUB - impeller,used with L109160 transmission

1шт.

6

E114286

CIRCLIP

RETAINING RING - inner race

1шт.

Part of Clutch and Slator Kit P/N L36228

1шт.

7

N7262

RING, SNAP

SNAP RING - outer race

2шт.

Part of Clutch and Slator Kit P/N L36228

1шт.

8

N7193

SPACER

- stator, used with N7377 vane

1шт.

8a

N7687

SPACER

- vane, used with N7688 vane assembly

1шт.

9

E114283

LOCK

TAB - lock, Serial Range: impeller-hub

4шт.

10

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

8шт.

11

N7686

CLUTCH ASSEMBLY

CLUTCH - free wheel, used with L101674 transmission

1шт.

Part of Clutch and Slator Kit P/N L36228

1шт.

12

E114367

CLIP

RETAINING RING - bearing, large, used with L101674 transmission

1шт.

13

N7263

RING

RETAINING RING - bearing, small

1шт.

14

N7379

TURBINE

- shift

1шт.

15

N7378

BRACKET

HUB - turbine

1шт.

16

E114288

RING

RETAINING RING - hub

1шт.

17

E114290

RING

- locating, hub bearing

1шт.

18

E114291

BALL BEARING

BEARING - turbine hub

1шт.

19

E114292

WASHER

- bearing retaining

1шт.

20

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

- impeller to cover

1шт.

Part of Clutch and Slator Kit P/N L36228

1шт.

21

N7380

COVER

- impeller

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

24шт.

23

92-6

LOCK WASHER,3/8"

24шт.

24

E114288

RING

- turbine retaining

1шт.

25

A62193

O-RING,1.424" ID x 1.63" OD

- impeller cover, bore plug

1шт.

Part of Clutch and Slator Kit P/N L36228

1шт.

26

E114296

PLUG

- bore

1шт.

27

K621779

SNAP RING,1.688, Int, #168

Ring, Snap, 1.688", Int, #168, bore plug

1шт.

28

E114298

PLATE

FLEX PLATE - major

1шт.

29

E114299

PLATE

FLEX PLATE - minor

2шт.

30

E114300

PLATE

RING - flex plate

1шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

33

A18033

SCREW

- hex head, 3/8" - 24 NF x 1", special

12шт.

34

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", special

12шт.

35

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex head, 1-3/4" - 24 NF x 3/8"

8шт.

36

92-6

LOCK WASHER,3/8"

8шт.

L36228

KIT - clutch and stator used on L101674 transmission only, Includes: Ref. 5, 6, 8, 11, 20 and 25

1шт.
