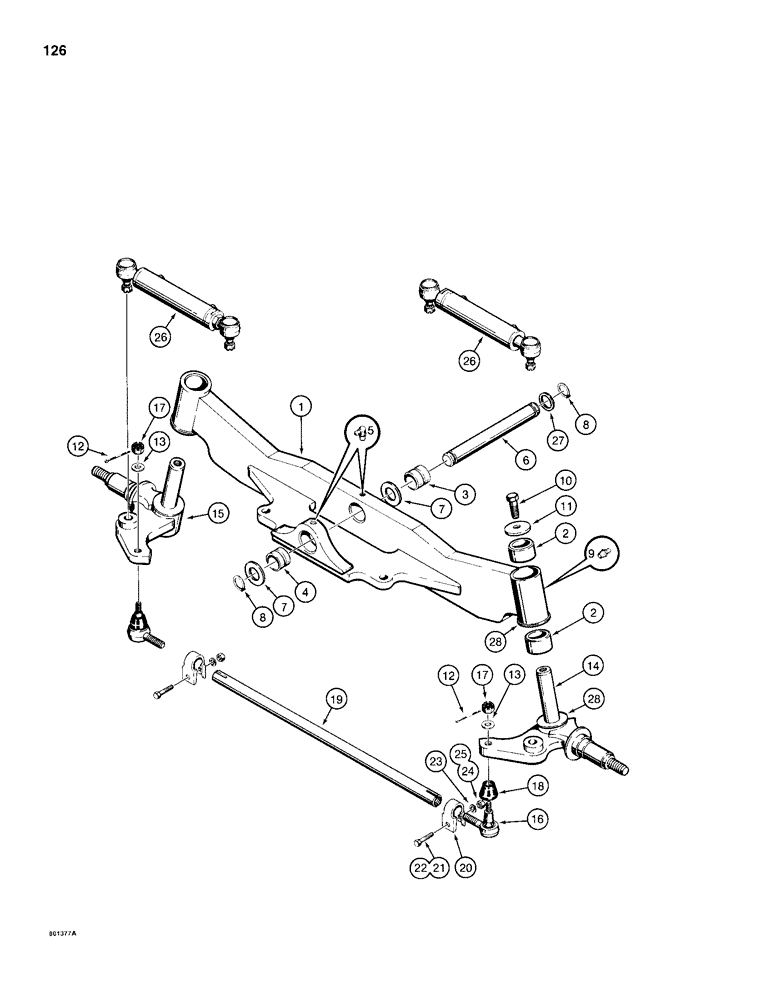

Запчасти Case 680H (126) - FRONT AXLE, SPINDLES, AND TIE ROD (05) - STEERING

1

L73640

CENTER AXLE

AXLE ASSEMBLY - front steering, Includes: Ref. 2 - 4

1шт.

2

L71756

BUSHING,61.98mm ID x 66.65mm OD x 38.1mm L

- steering arm pin

4шт.

3

L109417

BUSHING

-, Serial Range: axle-chassis

1шт.

4

L109415

BUSHING

- axle to chassis, rear

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

6

L101397

SHAFT

PIN - pivot, Serial Range: axle-chassis

1шт.

7

D37449

SHIM,.0747" Thk

- axle to chassis

1шт.

8

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

10

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

11

A61406

WASHER

- steering arm pin

2шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

13

195-45

WASHER,3/4"

2шт.

14

L105731

SPINDLE

AND KING PIN - steering, right-hand

1шт.

15

L105732

SPINDLE

AND KING PIN - steering, left-hand

1шт.

L70639

ROD

TIE ROD ASSEMBLY - front steering, Includes: Ref. 16 - 25

1шт.

D66470

BALL JOINT

ASSEMBLY - tie rod to spindle, right-hand, Includes: Ref. 16 - 18

1шт.

D66467

ARTICULATION

BALL JOINT ASSEMBLY - tie rod to spindle, left-hand, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BALL JOINT - tie rod

1шт.

17

129-610

SLOTTED NUT,5/8"-18, G5

1шт.

18

A31186

BOOT

SEAL - dust cover

1шт.

19

D66468

TUBE

- tie rod

1шт.

20

D75809

CLAMP

- ball joint retaining

2шт.

21

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- hex head, 1/2" - 20 NF x 2-1/2", if used

2шт.

22

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated, if used

2шт.

23

92-8

LOCK WASHER,1/2"

if used 1/2"

2шт.

24

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF, if used

2шт.

25

131-1116

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2" - 13 NC, plated, if used

2шт.

26

G102602

CYLINDER

ASSEMBLY - steering, parts list Figure 124

2шт.

27

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, special

1шт.

28

L71369

SHIM

- thrust, steering

1шт.
