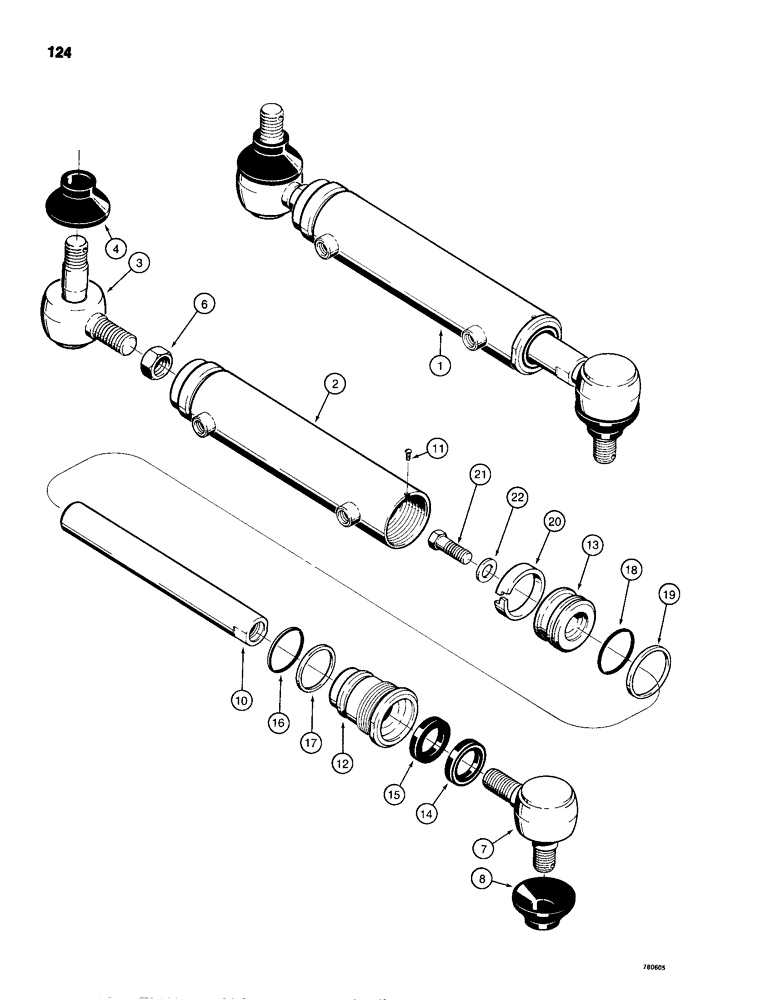

Запчасти Case 680H (124) - G102602 STEERING CYLINDER (05) - STEERING

1

G102602

CYLINDER

- steering, 2-1/8" (54 mm) ID x 7-1/2" (190 mm) stroke, Includes: Ref. 2 - 22

2шт.

2

G34691

CYLINDER BLOCK,2.12" DIA x 12.44" L

TUBE - cylinder body

1шт.

3

L59042

BALL JOINT

ASSEMBLY - closed end, Includes: Ref. 4

1шт.

7/8-14 UNF 2A (both ends)

1шт.

4

D72832

COVER

- dust

1шт.

5

RESERVED

1шт.

6

129-169

JAM NUT,Jam, 7/8"-14, G5

1шт.

7

L59041

BALL JOINT

ASSEMBLY - rod end, Includes: Ref. 8

1шт.

7/8-14 UNF 2A (post end) and 3/4-16UNF 2A (tie rod end)

1шт.

8

D72832

COVER

- dust

1шт.

9

RESERVED

1шт.

10

G34695

ROD

- piston, 1-1/4" (32 mm) OD

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", self-tapping

1шт.

G34820

CYLINDER END CAP

GLAND ASSEMBLY - with seals, Includes: Ref. 12 and 14-17; No longer sold as an assembly, order G34816 gland and G34819 seal kit

1шт.

12

G34816

CYLINDER END CAP

GLAND - cylinder

1шт.

Part of Gland Assembly Kit P/N G34820

1шт.

13

G102604

PISTON

- cylinder

1шт.

G34819

GASKET KIT

SEAL KIT - cylinder repair, Includes: Ref. 14 - 20

1шт.

14

D95141

WIPER SEAL

WIPER - piston rod, U-cup type

1шт.

Part of Gland Assembly Kit P/N G34820

1шт.

15

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, U-cup type

1шт.

Part of Gland Assembly Kit P/N G34820

1шт.

16

A60212

O-RING

- gland

1шт.

Part of Gland Assembly Kit P/N G34820

1шт.

17

A62070

RING

BACKUP RING - O-ring

1шт.

Part of Gland Assembly Kit P/N G34820

1шт.

18

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- piston

1шт.

19

A61430

SEALING RING

RING - piston

1шт.

20

G101837

RING

- wear

1шт.

21

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- hex head, piston, 5/8" - 18 NF x 1-3/4", grade 8

1шт.

22

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special, piston bolt

1шт.
