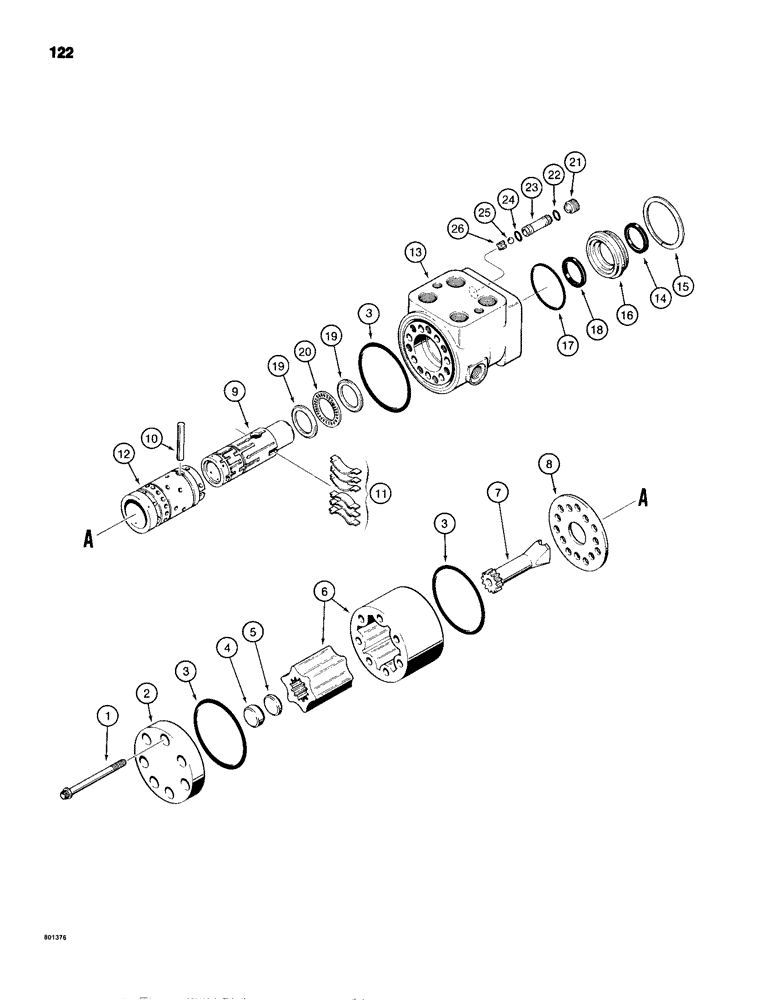

Запчасти Case 680H (122) - L102601 STEERING COLUMN AND CONTROL VALVE (05) - STEERING
№
Артикул
Название
Примечание
Количество
L102601
LOCK VALVE
STEERING COLUMN AND CONTROL VALVE - complete, Includes: Ref. 1 - 26
1шт.
D80622
STEERING COLUMN
COLUMN ASSEMBLY - steering
1шт.
N7160
GEAR
CONTROL VALVE ASSEMBLY - steering, Includes: Ref. 1 - 26
1шт.
1
166-529
12 PT SCREW,Flg, 5/16" - 24 x 2", Gr 8
BOLT - 12 point head, 5/16" - 24 NF x 2"
7шт.
2
D82809
COVER
CAP - end
1шт.
3
N6392
O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro
- housing
3шт.
Part of Seal Kit P/N D82802
1шт.
4
S110168
SPACER
- large
1шт.
5
N7162
SPACER
- small
1шт.
6
N7161
ROTOR
GEAR SET - drive shaft
1шт.
7
L30878
DRIVE SHAFT
- gear set
1шт.
8
S113037
PLATE
- spacer
1шт.
S115563
BODY
HOUSING SPOOL ASSEMBLY - control valve, Includes: Ref. 9 - 13
1шт.
9
NSS
NOT SOLD SEPARAT
SPOOL - sleeve
1шт.
10
L30888
PIN
- sleeve
1шт.
11
L30889
SPRING
- spool
6шт.
12
NSS
NOT SOLD SEPARAT
SLEEVE - spacer plate
1шт.
13
NSS
NOT SOLD SEPARAT
HOUSING - steering control valve
1шт.
14
A28211
OIL SEAL
- bushing
1шт.
Part of Seal Kit P/N D82802
1шт.
15
S110169
WASHER
RETAINING RING - bushing
1шт.
16
S110170
BUSHING
- quad ring
1шт.
17
A14515
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
- housing
1шт.
Part of Seal Kit P/N D82802
1шт.
18
A72029
RING
QUAD RING - bushing
1шт.
Part of Seal Kit P/N D82802
1шт.
19
D82804
RACE
THRUST WASHER - spool
2шт.
20
G13609
THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W
BEARING, THRUST, Needle - Thrust washers
1шт.
21
D82805
SET SCREW
SET SCREW - housing
1шт.
22
A30825
O-RING,0.364" ID x 0.504" OD x 0.07"
- spool
1шт.
Part of Seal Kit P/N D82802
1шт.
23
D82806
VALVE SEAT
SPOOL - ball retainer
1шт.
24
L30893
O-RING,1/16" Thk x 5/16" ID
- spool, 7/16 x 5/16 x 1/16 in
1шт.
Part of Seal Kit P/N D82802
1шт.
25
211-9
BALL,5/16" Dia
- spool
1шт.
26
L35368
RETAINER
- ball
1шт.
D82802
SEAL PACKAGE
KIT - seal, Includes: Ref. 3, 14, 17, 18, 22 and 24
1шт.
