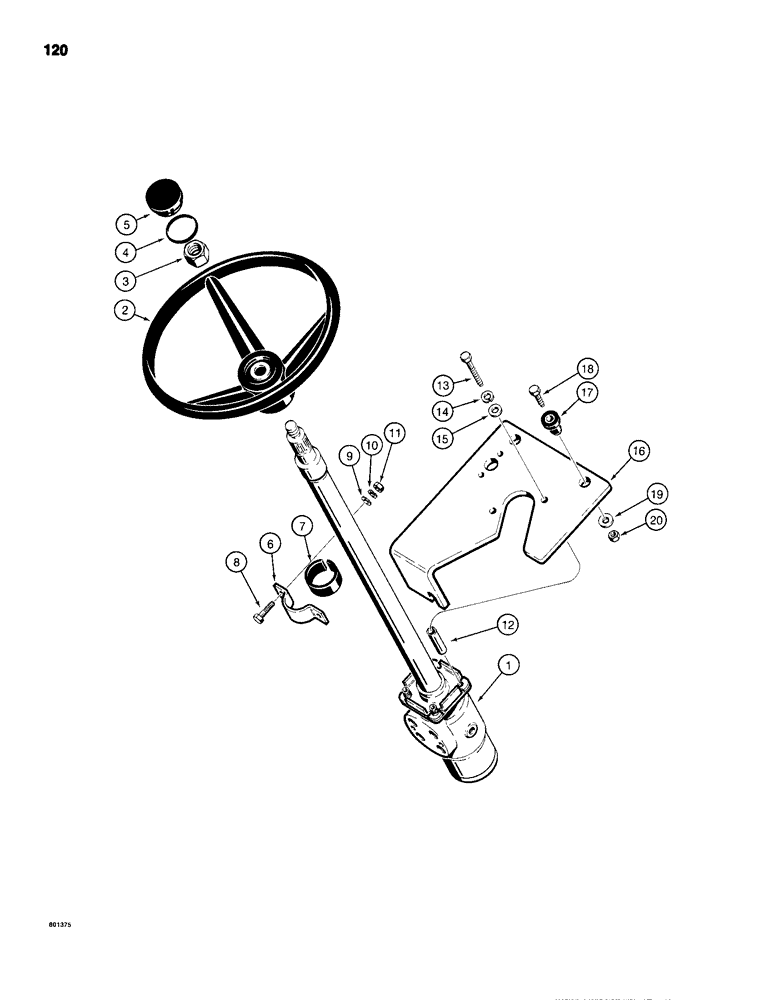

Запчасти Case 680H (120) - STEERING WHEEL, STEERING COLUMN, AND MOUNTING PARTS (05) - STEERING

1

L102601

LOCK VALVE

CONTROL VALVE - steering, parts list Figure 122

1шт.

2

A65544

STEERING WHEEL

1шт.

3

L33715

JAM NUT

- special, steering wheel mounting

1шт.

4

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

- cap

1шт.

5

A62210

PLUG

CAP - steering wheel

1шт.

6

D66049

CLAMP

- steering column

1шт.

7

L102644

COLLAR CLAMP

WRAPPER - column

1шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

2шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

12

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- steering wheel mounting

2шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

16

L102660

PLATE - steering mounting, used before tractor SN 9140716

1шт.

16

L108626

PLATE ASSY.

PLATE - steering mounting, used on tractor SN 9140716 and after

1шт.

17

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT - steering gear

2шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

19

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- special

2шт.

20

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.
