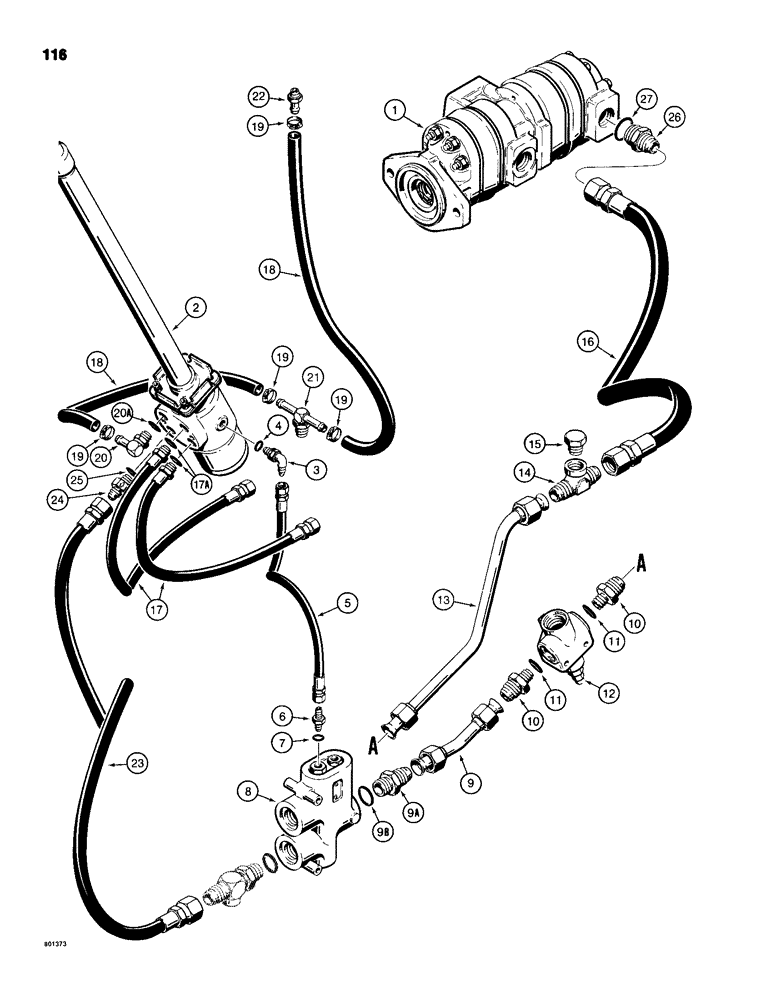

Запчасти Case 680H (116) - STEERING VALVE HYDRAULIC CIRCUIT, PUMP TO STEERING CONTROL VALVE (05) - STEERING

1

D127913

PUMP

HYDRAULIC PUMP - equipment and steering, parts list Figure 270

1шт.

2

L102601

LOCK VALVE

CONTROL VALVE - steering, parts list Figure 122

1шт.

3

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, adjustable, Includes: Ref. 4

1шт.

4

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- fitting

1шт.

5

D52712

HOSE ASSY.

HOSE - flow control valve to steering control valve, 27" (686 mm) long

1шт.

6

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - straight, Incl. Ref. 7

1шт.

7

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- connector

1шт.

8

L102602

LOCK VALVE

FLOW CONTROL VALVE - parts list Figure 266

1шт.

9

L103028

TUBE - relief to flow control 0.75" OD x 6.6, 1.28" L

1шт.

9a

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 9B

1шт.

9b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - straight, male, Includes: Ref. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

12

L106548

VALVE

RELIEF VALVE - parts list Figure 268

1шт.

13

L105220

TUBE,0.75" OD

- supply to relief

1шт.

14

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- pressure check

1шт.

15

S206607

DISC

PLUG - pressure check

1шт.

16

L78021

HOSE

- pump to relief valve, 23" (584 mm) long

1шт.

17

L103395

HOSE,0.38" ID x 18.00", SAE 100R1

- steering cylinders, 18" (457 mm) long, Includes: Ref. 17A

2шт.

18

L55952

HOSE,0.50" ID x 16.00", SAE 100R3

Return 0.50" ID x 16.00", SAE 100R3

2шт.

19

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

20

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 degree, Includes: Ref. 20A

1шт.

21

L100139

TEE

- hose

1шт.

22

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

stem 1/2" Hose X 3/8" NPTF Beaded

1шт.

23

H262048

HOSE ASSY.

HOSE - steering supply

1шт.

24

L104449

LOCK VALVE

CHECK VALVE - steering, Includes: Ref. 25

1шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

17a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose

1шт.

20a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- check valve

1шт.
