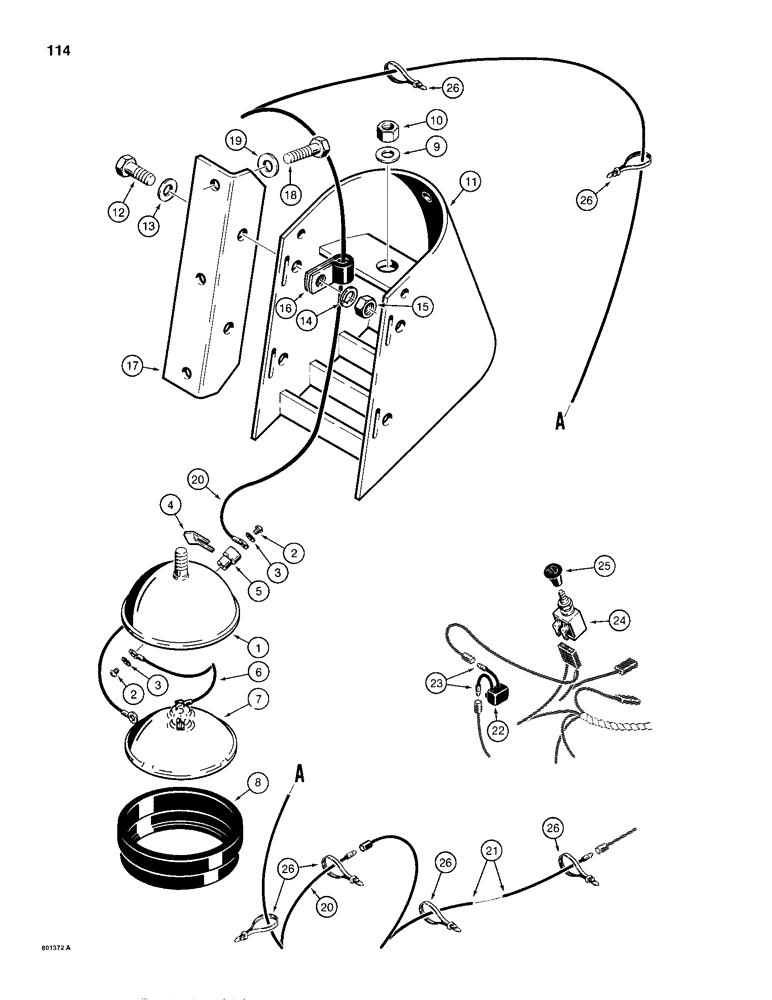

Запчасти Case 680H (114) - DIPPER LAMP, USED WITH EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

L45149

HEADLIGHT

LAMP ASSEMBLY - dipper arm, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head, No. 8 - 32 NC x 1/4"

2шт.

3

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - external tooth lock, No. 8

2шт.

4

10927

SPRING

- lamp

1шт.

5

B50293

TERMINAL CONNECTOR

- lamp

1шт.

6

A40033

ELECTRICAL WIRE

WIRE - lamp

1шт.

7

L10499

LAMP

BULB - sealed beam, 24 volt, No. 4589

1шт.

8

D31441

RETAINER

- lamp

1шт.

9

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

10

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

11

D41427

SHIELD

- dipper lamp

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

13

95-8

WASHER,1/2"

flat 1/2"

4шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

16

49857

CLAMP

- wire

1шт.

17

L101220

BRACKET

- dipper lamp mounting

2шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

19

R24323

WASHER

- special

4шт.

20

L100002

ELECTRICAL WIRE

WIRE - lamp to switch wire

1шт.

21

L104338

ELECTRICAL WIRE

WIRE - dipper lamp

1шт.

22

H335976

CIRCUIT-BREAKER

CIRCUIT BREAKER - 10 ampere

1шт.

23

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - Male

2шт.

24

D74330

SWITCH

- dipper lamp

1шт.

25

D70448

KNOB

- dipper lamp

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
