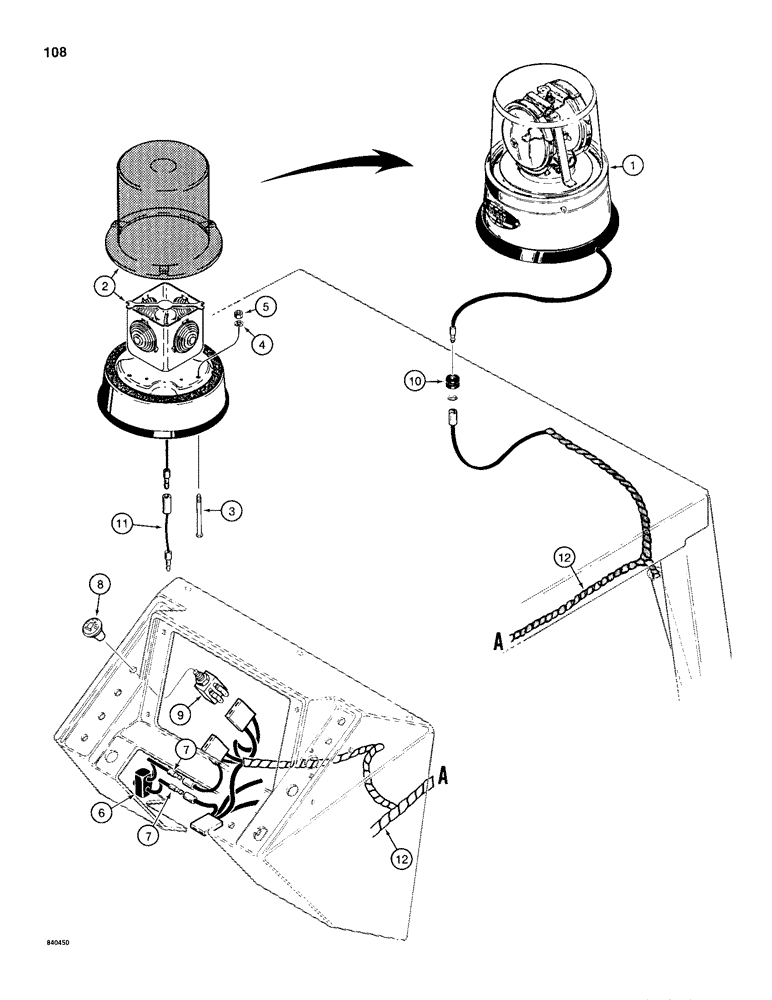

Запчасти Case 680H (108) - ROTATING BEACON - CAB AND CANOPY (04) - ELECTRICAL SYSTEMS

1

L16100

BEACON

ROTATING BEACON - Do-Ray, amber lens, parts list Figure 110

1шт.

1

L16676

BEACON

ROTATING BEACON - Do Ray, red lens, parts list Figure 110

1шт.

2

L110648

LAMP

ROTATING BEACON - Signal Stat, amber lens, parts list Figure 111A

1шт.

3

169-111

SCREW,Sl Fil Hd, #10 - 24 x 3"

MACHINE SCREW - slotted head, No. 10 - 24 NC x 3", used with L110648 beacon

3шт.

4

92-3

LOCK WASHER,#10

WASHER, LOCK, , Used with L110648 beacon #10

3шт.

5

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC, used with L110648 beacon

3шт.

6

H335976

CIRCUIT-BREAKER

CIRCUIT BREAKER - 10 amp

1шт.

7

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - , circuit breaker to harness Male

2шт.

8

D92573

BUTTON

- switch

1шт.

9

D74330

SWITCH

- rotating beacon

1шт.

10

A23870

GROMMET

- wire

1шт.

11

D129852

ELECTRICAL WIRE

WIRE - jumper, used with L110648 beacon

1шт.

12

REF

INSTRUCTION

HARNESS - instrument, see Figure 89

1шт.
