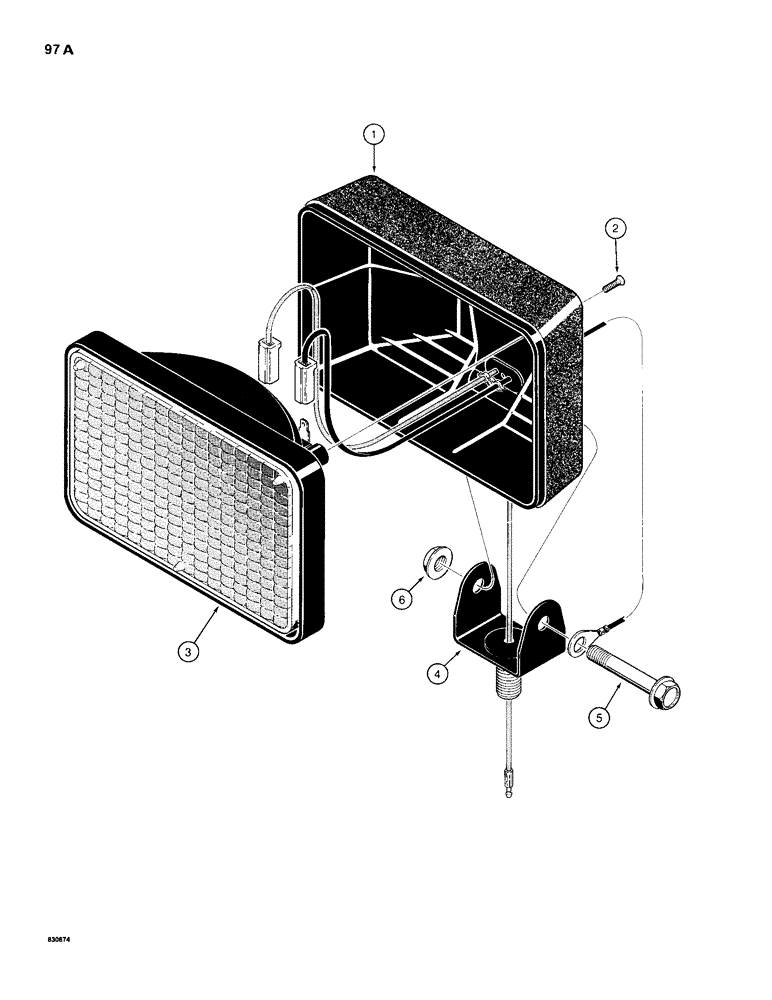

Запчасти Case 680H (097A) - TRACTOR LAMPS (HALOGEN), FRONT DRIVING AND REAR FLOOD LAMPS, USED ON MODELS WITH CAB (04) - ELECTRICAL SYSTEMS

F96875

LAMP BASE

LAMP ASSEMBLY - front driving, without bracket (Ref. 4), Includes: Ref. 1 - 6

2шт.

F96876

LAMP

ASSEMBLY - rear flood, with bracket (Ref. 4), Includes: Ref. 1 - 6

1-2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

2

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat head, No. 8 - 18 NC x 1/2"

2шт.

3

F45305

HEADLIGHT

BULB - sealed beam

1шт.

4

N8347

SUPPORT

BRACKET - lamp, used with rear flood lamp

1шт.

5

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - flange, 5/16"-18 NC, plated

1шт.

F96875 lamp assy - For service order F96876 lamp assy.

1шт.

These lamps are for use w/ brown cab.

1шт.
