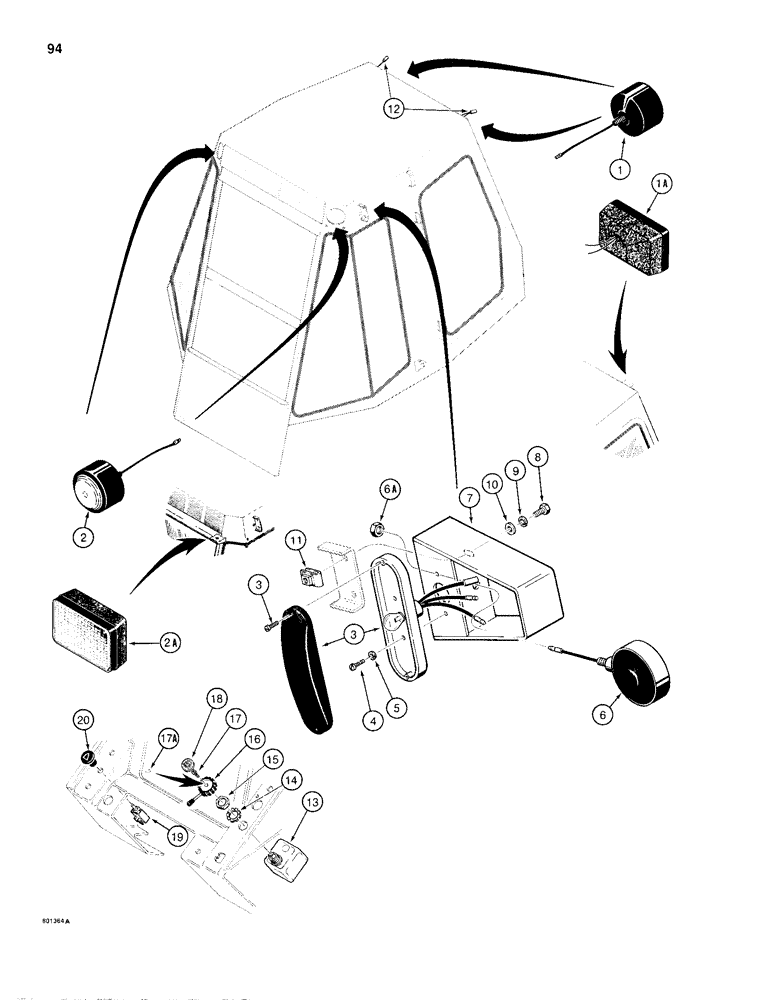

Запчасти Case 680H (094) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

1

F93557

INTERIOR LIGHT

LAMP ASSEMBLY - front driving, incandescent, used on tractors with black cab, parts list Figure 96, for lamp mounting see Figure 360, for cab harness, see Figure 374

2шт.

1a

F96838

LAMP

ASSEMBLY - front driving, halogen, used on tractors with brown cab, used without hinge bracket, parts list Figure 97A, for lamp mounting see Figure 361A, for cab harness, see Figure 374

2шт.

Ref. 1A and 2A - F96838 lamp assy - Should be part nbr F96876.

1шт.

2

F93558

INTERIOR LIGHT

LAMP ASSEMBLY - rear flood, incandescent, used on tractors with black cab, parts list Figure 96, for lamp mounting see Figure 360, for cab harness, see Figure 374

2шт.

2a

F96838

LAMP

ASSEMBLY - rear flood, halogen, used on tractors with brown cab, used with hinge bracket, parts list Figure 97A, for lamp mounting see Figure 361A, for cab harness, see Figure 374

2шт.

3

L103756

LAMP, TAIL

LAMP ASSEMBLY - stop and tail, parts list Figure 98

2шт.

4

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, No. 10 - 24 NC x 1/2"

4шт.

5

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

6

L108118

LAMP

ASSEMBLY - flasher, parts list Figure 100

2шт.

6a

25-158

JAM NUT,Jam, 1/2"-20, G5

JAM NUT - hex, 1/2" - 18 NF

2шт.

7

D88533

BRACKET

- side lamps

2шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

11

131-641

NUT

- U-type, 5/16" - 18 NC

4шт.

12

F44756

HARNESS

- cab, see Figure 374 for cab harness and control panel

1шт.

13

L101702

INDICATOR LIGHT

SWITCH - turn signal

1шт.

L101702 turn signal switch - This is also a flasher switch (subs to L127265).

1шт.

14

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

15

D91352

JAM NUT

- special

1шт.

16

A141736

KNOB

- turn signal switch

1шт.

17

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- No. 5 - 40 NC x 1/2"

1шт.

17a

193-3

LOCK WASHER,Int Tooth, #5

WASHER - external tooth lock, No. 5

1шт.

18

A160035

PLATE

- knob, turn signal switch

1шт.

19

D74330

SWITCH

- flasher, see Figure 88 for front and rear light switches

1шт.

20

D88134

KNOB

- flasher switch

1шт.
