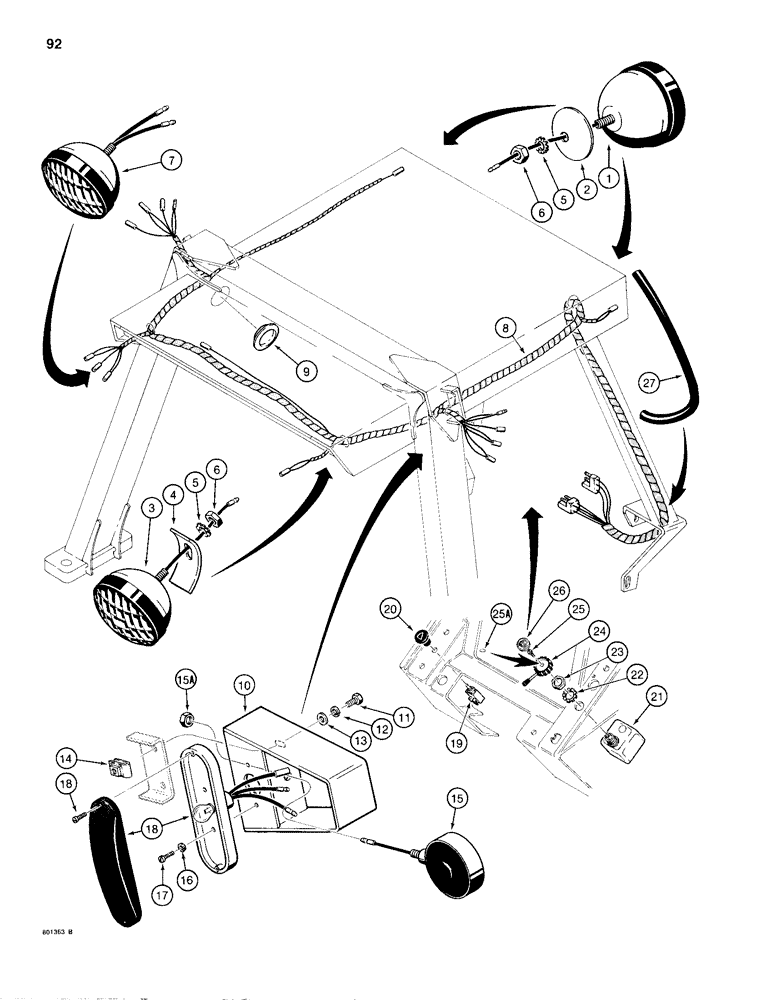

Запчасти Case 680H (092) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CANOPY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L103264
LAMP
ASSEMBLY - front driving, parts list Figure 96
2шт.
2
A59702
RETAINER
WASHER - retainer, front driving lamp
2шт.
3
L103263
LAMP
ASSEMBLY - rear flood, parts list Figure 96
1-2шт.
4
D90092
RETAINER
- rear flood lamp
1-2шт.
5
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, Ext-Int Tooth, 1/2"
3-4шт.
6
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC
3-4шт.
7
L104605
LAMP
ASSEMBLY - stop and tail, used on models without flasher lights only, see Refs. 15 and 18 on this Figure, for parts list see Figure 98
1шт.
8
L103688
HARNESS
- ROPS canopy
1шт.
9
205-72
HOLE PLUG BUTTON,3"
PLUG - access
2шт.
10
D88533
BRACKET
- side lamps, if used
2шт.
11
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
12
92-5
LOCK WASHER,5/16"
4шт.
13
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16"
4шт.
14
131-641
NUT
- U-type, 5/16" - 18 NC
4шт.
15
L108118
LAMP
ASSEMBLY - flasher, if used, parts list Figure 100
2шт.
15a
25-158
JAM NUT,Jam, 1/2"-20, G5
JAM NUT - hex, 1/2" - 18 NF
2шт.
16
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
4шт.
17
182-516
SCREW,Sl Pan Hd, #10 - 24 x 1/2"
- pan head, No. 10 - 24 NC x 1/2"
4шт.
18
L103756
LAMP, TAIL
LAMP ASSEMBLY - stop and tail, if used, see Ref. 7 above, parts list Figure 98
2шт.
19
D74330
SWITCH
- flasher, see Figure 88 for front and rear light switches
1шт.
20
D88134
KNOB
- flasher switch
1шт.
21
L101702
INDICATOR LIGHT
SWITCH - turn signal
1шт.
L101702 turn signal switch - This is also a flasher switch (subs to L127265).
1шт.
22
193-98
LOCK WASHER,Ext Tooth, 3/4"
WASHER, LOCK, Ext Tooth, 3/4"
1шт.
23
D91352
JAM NUT
- special
1шт.
24
A141736
KNOB
- turn signal switch
1шт.
25
182-567
SCREW,Sltd Pan Hd, #5-40 x 1/2"
- No. 5 - 40 NC x 1/2"
1шт.
25a
193-3
LOCK WASHER,Int Tooth, #5
WASHER - external tooth lock, No. 5
1шт.
26
A160035
PLATE
- knob, turn signal switch
1шт.
27
L105943
HOSE ASSY.
HOSE - harness cover
1шт.
