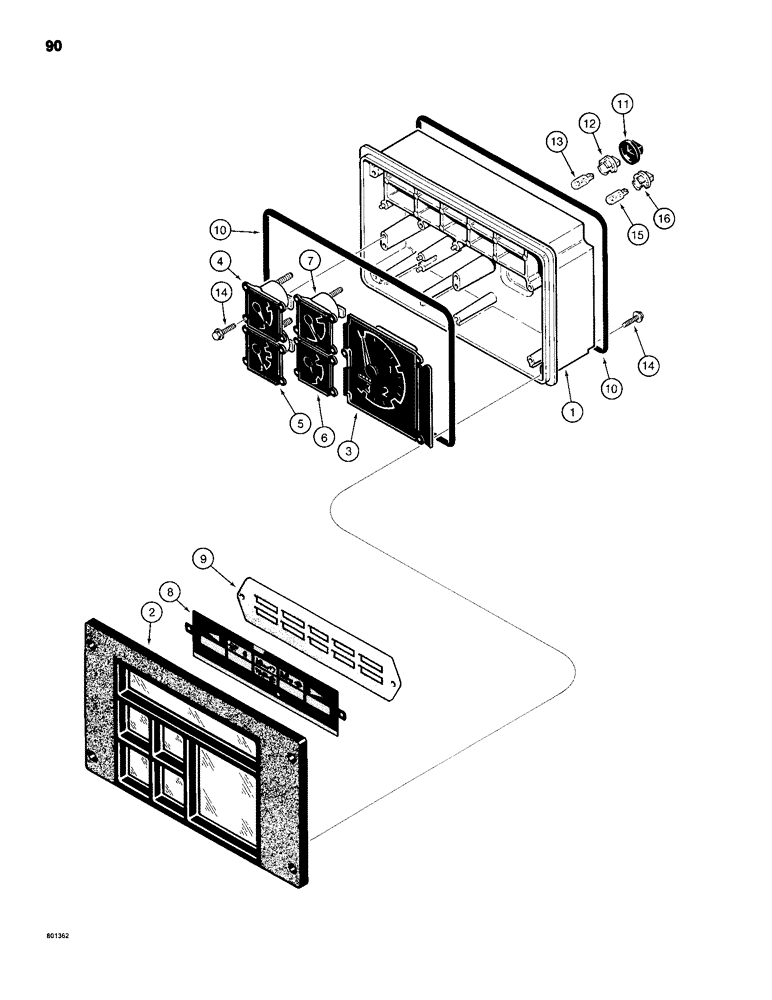

Запчасти Case 680H (090) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

L101485

CLUSTER

INSTRUMENT CLUSTER - 12 volt, used before tractor SN 9145883 and used on tractor SN 9145897, Includes: Ref. 1 - 18

1шт.

L60702

COIL

INSTRUMENT CLUSTER - 24 volt, used on tractor SN 9145883 - 9145896, 9145898 and after, Includes: Ref. 1 - 18

1шт.

1

D71335

CASE ASSY.

HOUSING - instrument cluster, Includes: Ref. 1A

1шт.

1a

H422774

BOARD, PRINTED CIRCU

CIRCUIT BOARD - printed, not shown

1шт.

2

D71334

LENS

- instrument cluster

1шт.

3

N6805

TACHOMETER

GAUGE - tachometer, includes hourmeter

1шт.

4

N7179

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

5

N7180

FUEL GAUGE

GAUGE - fuel

1шт.

6

N7181

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

7

N7182

ELECTRICAL GAUGE

GAUGE - oil temperature

1шт.

8

N6809

INDICATOR

LENS - identification, warning lamps

1шт.

9

D71342

GASKET,3.05mm Thk

- lens

1шт.

10

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

11

D71344

COVER

BOOT - lamp socket

3шт.

12

A47125

PEDESTAL

SOCKET - green lamp, used with L101485 instrument cluster

3шт.

13

W10478

LAMP

- illumination, No. 194, used with L101485 instrument cluster

3шт.

14

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

15

D71346

TAIL LAMP,12V

LAMP - warning, No. 168, used with L101485 instrument cluster

8шт.

D71346 warning lamp - This is the air cleaner restriction lamp.

1шт.

16

A47123

SOCKET/RECEPTACLE

SOCKET - lamp, used with L101485 instrument cluster

8шт.

17

N8330

LAMP

- illumination, used with L60702 instrument cluster, not shown

11шт.

18

N8481

HOLDER

SOCKET - lamp, used with L60702 instrument cluster, not shown

11шт.
