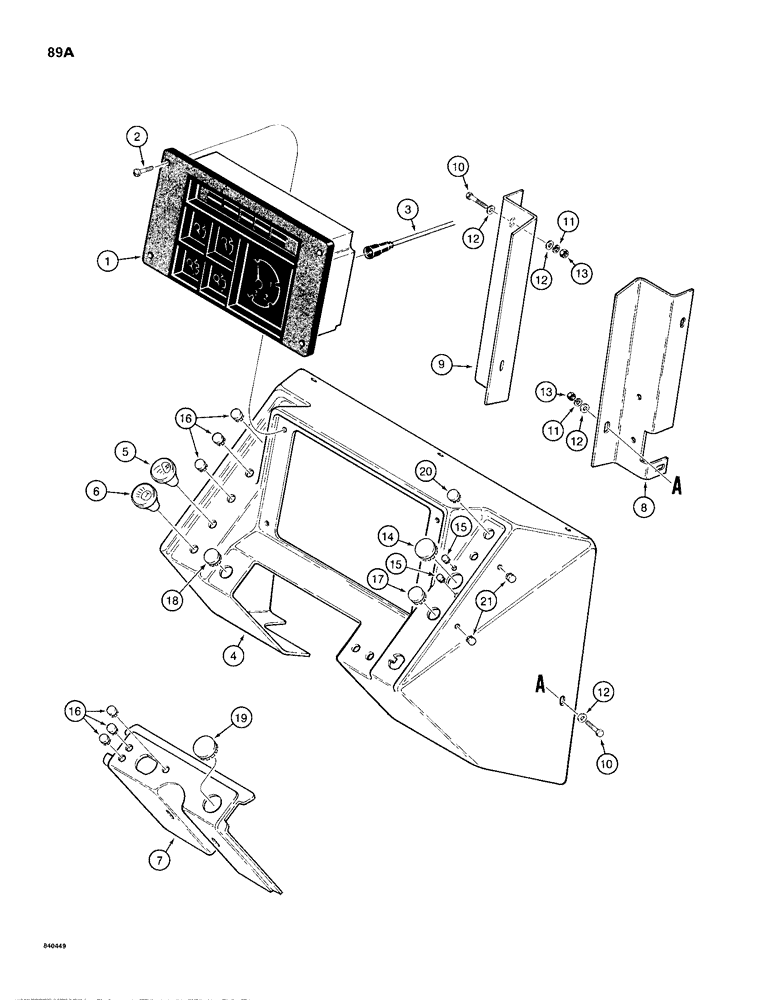

Запчасти Case 680H (089A) - ELECTRICAL SYSTEM, INSTRUMENT CLUSTER AND PANEL (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

INSTRUMENT CLUSTER - instrument panel, parts list Figure 90

1шт.

2

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- No. 10 - 24 NC x 1/2"

4шт.

3

D68851

CABLE

- tachometer flex drive

1шт.

4

D83240

PANEL

INSTRUMENT PANEL - tractor, black

1шт.

4

D123199

PANEL

INSTRUMENT PANEL - tractor, brown

1шт.

5

D70448

KNOB

- flood lamp

1шт.

6

D70446

KNOB

- lamp switch

1шт.

7

D83255

PANEL

INSTRUMENT PANEL - tractor, black

1шт.

7

D123198

PANEL, INSTRUMENTS

BRACKET - instrument panel, brown

1шт.

8

L101678

BRACKET

- instrument panel mounting, right-hand

1шт.

9

L108800

BRACKET

- instrument panel mounting, left-hand

1шт.

10

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

9шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

12

95-4

WASHER,1/4"

- flat, 1/4"

14шт.

13

25-104

NUT,1/4"-20, G5

7шт.

14

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

15

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

16

353-402

PLUG,Dome, .375" hole, Nylon

6шт.

17

353-408

PLUG,Dome, .750" hole, Nylon

- button, 3/4"

1шт.

18

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8"

1шт.

19

353-412

PLUG,Dome, 1.093" hole, Nylon

- button, 1-3/32"

1шт.

20

353-403

PLUG,Dome, .437" hole, Nylon

- button, 3/4"

1шт.

21

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16"

4шт.
