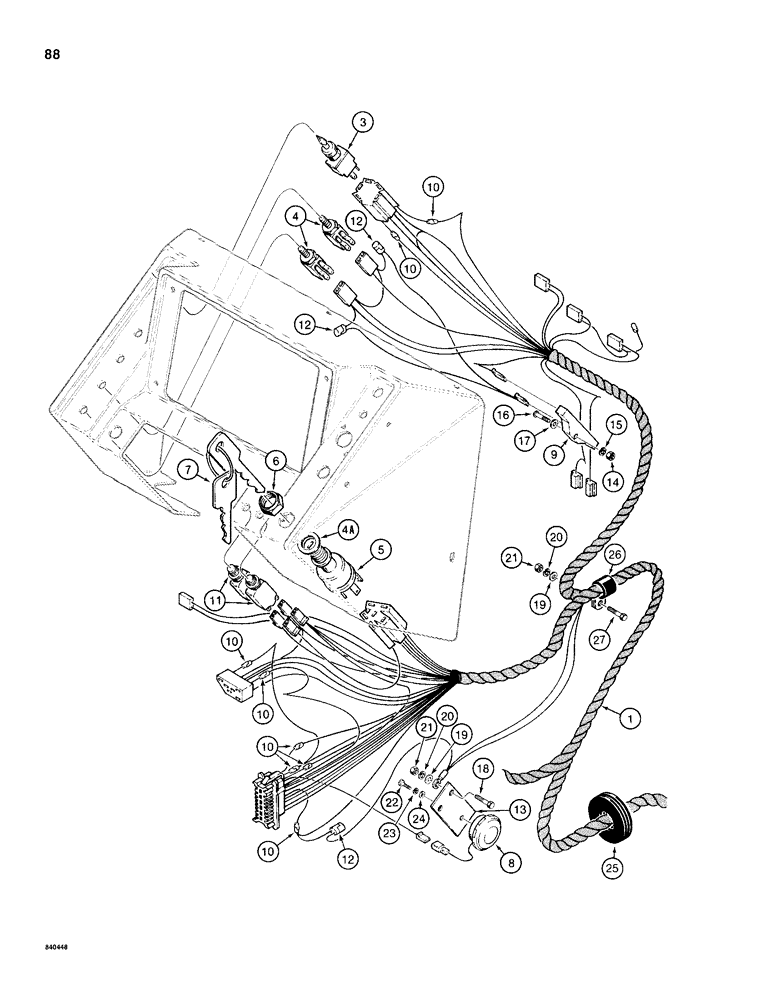

Запчасти Case 680H (088) - ELECTRICAL SYSTEM, INSTRUMENT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

L103427

HARNESS

- instrument, used before tractor SN 9140373, and used on SN 9140374

1шт.

1

L107330

HARNESS

- instrument, used on tractor SN 9140373, 9140375 - 9145882 and used on tractor SN 9145897

1шт.

1

L60760

HARNESS

- instrument, used on tractor SN 9145883 - 9145896

1шт.

L60760 harness - For straight 24V system. Does not use Ref. 10 resistors.

1шт.

9145898 and after, not shown

1шт.

2

L106747

HOLDER - resistor, not shown, used with L107330 instrument harness only

1шт.

L106747 holder is a resistor holder w/16 1/4 male blades. The L73576 fits between these blades

1шт.

3

D75360

SWITCH

- warning lamp check

1шт.

4

D74330

SWITCH

- lamp

2шт.

4a

L31557

WASHER

- special

1шт.

L61053

IGNITION SWITCH

KEY SWITCH ASSEMBLY - includes keys, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

KEY SWITCH - less keys

1шт.

6

A77314

NUT

- key switch mounting

1шт.

7

A77313

SET OF 2 KEYS

KEYS - set of two

1шт.

8

L107892

HORN

BUZZER - warning

1шт.

9

L76800

RESISTOR

- 15 ohm

1шт.

10

L73576

RESISTOR

- 40 ohm

8шт.

L73576 resistors - Used with L106747 holder (not included w/ holder).

1шт.

11

L76929

BREAKER

- 12 amp circuit

2шт.

12

L71879

DIODE ELEMENT,400V, 3A

DIODE - isolation

3шт.

13

L105849

BRACKET

- insulating

1шт.

14

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

1шт.

15

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

16

182-131

SCREW,Sl Pan Hd, #10 - 24 x 1 1/4"

- No. 10 - 24 NC x 1-1/4"

1шт.

17

195-513

WASHER,#10

- flat, No. 10

1шт.

18

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

19

95-4

WASHER,1/4"

- flat, 1/4"

3шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

21

25-104

NUT,1/4"-20, G5

3шт.

22

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- No. 8 - 32 NC x 1/2"

1шт.

23

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

1шт.

24

195-10

WASHER,#8

1шт.

25

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

- panel

1шт.

26

R14668

CLAMP

- harness

1шт.

27

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.
