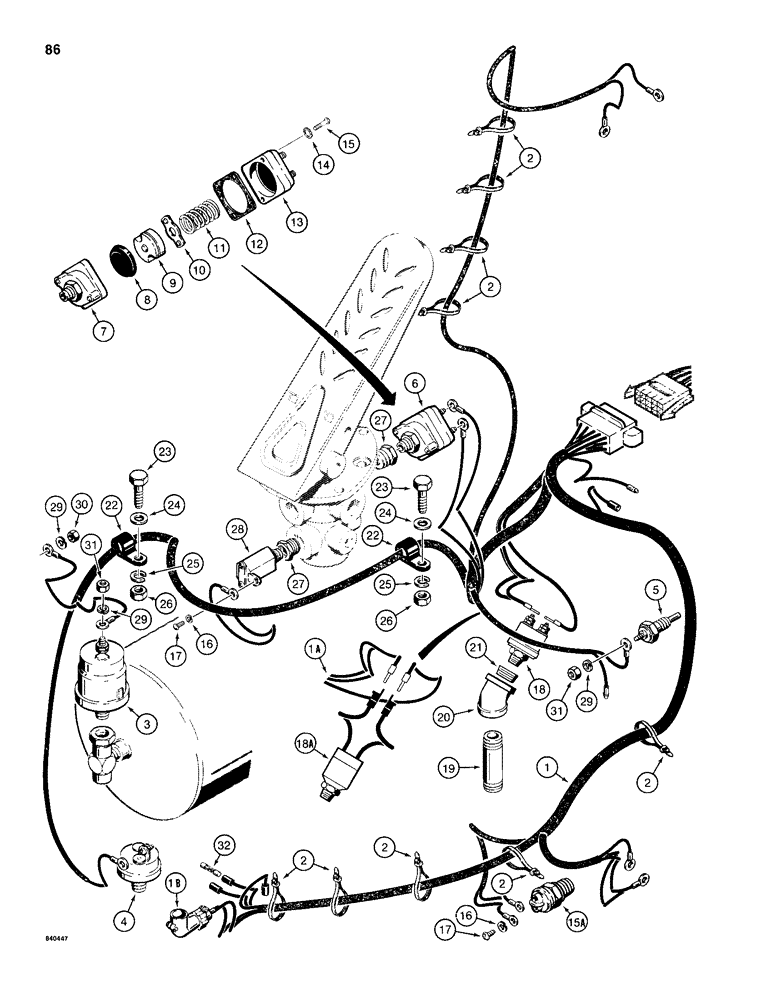

Запчасти Case 680H (086) - ELECTRICAL SYSTEM, REAR HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

L107332

HARNESS

- rear, used before tractor SN 9145883 and used on tractor SN 9145887

1шт.

1a

L110150

HARNESS

- rear, used on tractor SN 9145883 - 9145896 and 9145898 and after, Includes: Ref. 1B

1шт.

1b

N7321

ROD, CONNECTING

CONNECTOR - two pin

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

12шт.

3

L109945

TRANSMITTER

SENDER - air pressure

1шт.

4

L57937

SWITCH

- air parking brake, used before tractor SN 9140373 and used on SN 9140374

1шт.

4

D65457

SWITCH

- air parking brake, used on tractor SN 9140373, 9140375, and after

1шт.

5

L104249

SWITCH

SENDER - converter oil temperature

1шт.

6

L47989

SWITCH

- stop light, Includes: Ref. 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

8

L33201

DIAPHRAGM

- piston

1шт.

9

L33202

PISTON

- switch

1шт.

10

L33203

TERMINAL STRIP

STRIP - contact

1шт.

11

L33204

SPRING

- piston return

1шт.

12

L33205

GASKET

- cover

1шт.

13

L33206

COVER

- switch

1шт.

14

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

15

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- slotted pan head, No. 10 - 24 NC x 3/4"

2шт.

15a

E114399

SWITCH

- neutral start

1шт.

The E114399 neutral start switch comes with two removeable terminal posts on it. For applications where connecting wires have two eyelets, unscrew the terminal posts and use the following parts to connect the jumper eyelets to the switch: (2) 182-82 screw, Ref. 17, (2) 192-6 lockwasher, Ref. 16, (2) 193-91 lockwasher. Order of assembly is as follows: the 193-91 lockwasher goes on first, followed by the eyelets on the jumper wire, then the 192-6 lockwasher and finally the 182-82 screw to secure them all. Th

1шт.

16

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

17

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

3шт.

18

L101635

SWITCH

- clutch pressure, threaded terminals (order D109377 and L36238 for service)

1шт.

The L36238 electrical repair kit, not shown, contains instuctions, (4) 223- 59 eyelet, (2) 223-250 splice, (1) 223-61 eyelet, and (2) 353-406 5/8" plug.

1шт.

18a

L109377

SWITCH

- clutch pressure, blade type terminals

1шт.

19

221-138

NIPPLE, LUBE,Nipple, 1/4" NPT x 2 1/2"

NIPPLE - 1/4" NPT, clutch pressure switch

1шт.

20

221-1366

ELBOW

- 1/4" NPT, 45 degree

1шт.

21

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - clutch pressure switch, used with Ref. 18

1шт.

22

49859

CLAMP

- 5/16", harness

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

24

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

27

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

ADAPTER - 1/2" NPT x 1/4" NPT

2шт.

28

L70507

SWITCH

- low air pressure

1шт.

29

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

30

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10

1шт.

31

129-37

NUT,#10-32

2шт.

32

223-38

FUSE,3 Amp, Type 3AG

- 3 amperes, 3 AG

1шт.
