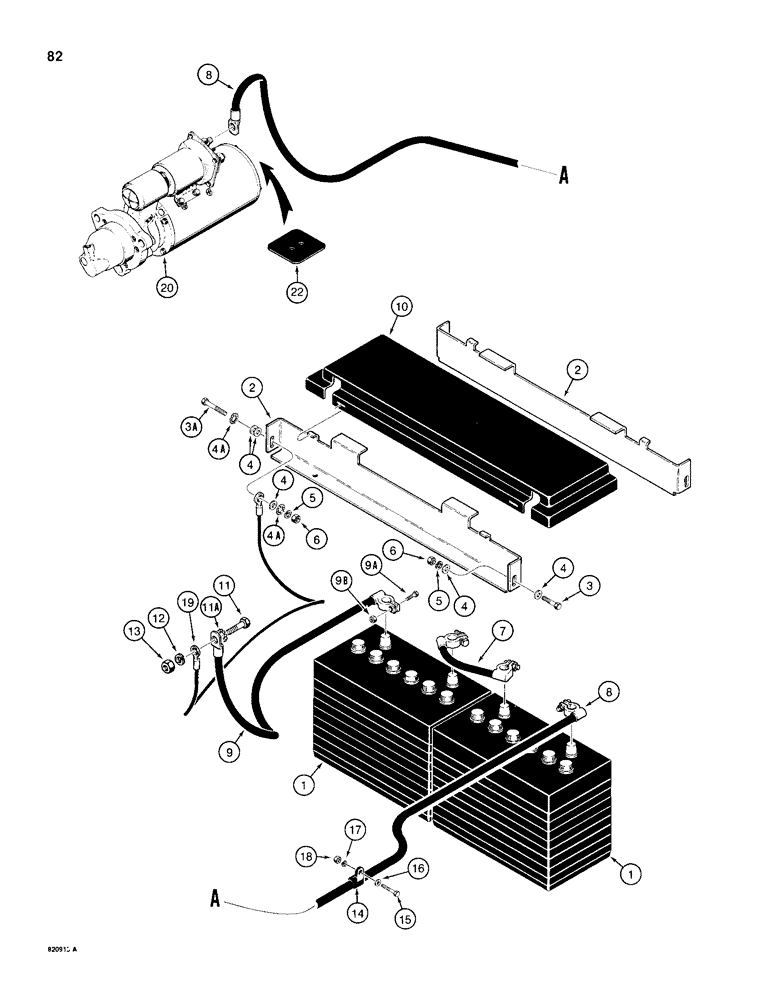

Запчасти Case 680H (082) - BATTERY CABLES AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

A145205

WET BATTERY

- 12 volt, used before tractor, Serial Range: -9145721

2шт.

1

A38411

DRY BATTERY

- 12 volt, used on tractor, Start Serial: 9145721

2шт.

2

L105234

BRACKET

- battery hold down, used with A145205 battery

2шт.

2

L108531

BRACKET

- battery hold down, used with A38411 battery

2шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3a

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

4

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

4a

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

2шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

7

L100781

CABLE

- jumper, Serial Range: battery-battery

1шт.

8

L103059

CABLE

-, Serial Range: battery-starter

1шт.

9

A165027

CABLE

-, Serial Range: battery-ground

1шт.

9a

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- hex head, 5/16" - 18 NC x 1-3/8", used with A165027 cable only

1шт.

9b

129-516

NUT

- hex, 5/16" - 18 NC, used with A165027 cable only

1шт.

10

L105228

COVER

- battery, if used

1шт.

L105228 battery cover - This Ref. was not used on all units and is no longer required.

1шт.

11

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

1шт.

11a

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

12

92-8

LOCK WASHER,1/2"

1шт.

13

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

14

49774

CLAMP

- battery cable

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

16

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

19

L108391

ELECTRICAL WIRE

WIRE - ground

1шт.

20

REF

INSTRUCTION

STARTER - engine, parts list Figures 74 and 76

1шт.

21

RESERVED

1шт.

22

L109571

SHIELD

- starter, if used

1шт.
