Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

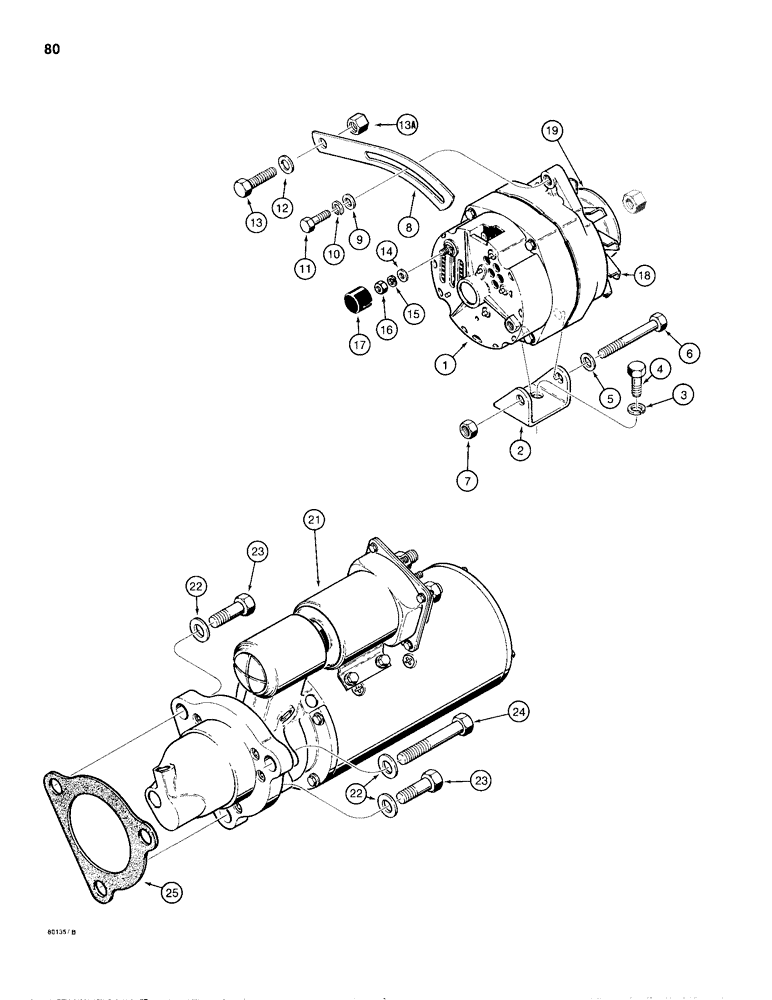

ALTERNATOR ASSEMBLY - parts list Figures 78 and 79A
1шт.
2
A160391
BRACKET
- alternator mounting
1шт.
3
92-6
LOCK WASHER,3/8"
2шт.
4
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
5
95-6
WASHER,3/8"
- flat, 3/8"
1шт.
6
13-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
- hex head, 3/8" - 16 NC x 3-1/4"
1шт.
7
131-6
LOCK NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8" - 16 NC
1шт.
8
A145326
STRAP
- adjusting
1шт.
9
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16"
1шт.
10
892-1108
LOCK WASHER,M8
1шт.
11
814-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex head, 8 mm - 1.25 x 25 mm (8.8)
1шт.
12
95-6
WASHER,3/8"
- flat, 3/8"
1шт.
13
113-235
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd
1шт.
13a
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8" - 16 NC
1шт.
14
195-16
WASHER,#12
- flat, No. 12
1шт.
15
892-1106
LOCK WASHER,M6
1шт.
16
825-1106
NUT,Hex, M6, Cl 8
- hex, 6 mm - 1.0
1шт.
17
L106774
CAP
- alternator output
1шт.
18
A51560
FAN
- alternator
1шт.
19
L59716
PULLEY
- alternator
1шт.
20
RESERVED
1шт.
21
REF
INSTRUCTION
STARTER - engine, parts list Figures 74 and 76
1шт.
23
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
24
13-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
1шт.
25
A27933
GASKET
- starter to flywheel housing, must be ordered with replacement starter
1шт.
Выбрано товаров: 26
