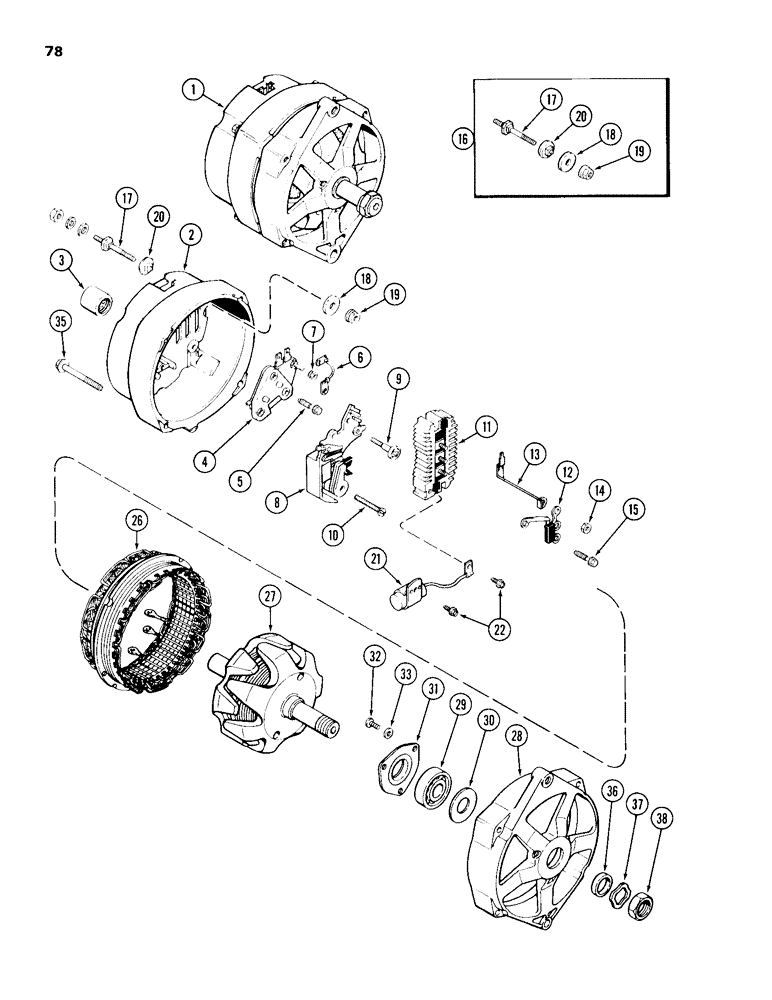

Запчасти Case 680H (078) - L101465 ALTERNATOR, 40 AMP- 24 VOLT, METRIC EXTERNAL THREADS (04) - ELECTRICAL SYSTEMS

A47484

ALTERNATOR

Alternator Assembly - remanufactured, Includes: Ref. 2 - 38

1шт.

A47485

CORE-ALTERNATOR

Return Number - use this part number to return alternator core for credit, Includes: Ref. 2 - 38

1шт.

1

L101465

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, new (Delco-Remy No. 1103123) (without fan and pulley), Includes: Ref. 2 - 38

1шт.

1

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

1

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

2

A47595

FRAME

FRAME ASSEMBLY - slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING - roller

1шт.

4

A46890

REGULATOR

REGULATOR - voltage

1шт.

5

A45073

BUSHING

SCREW - regulator attaching

1шт.

6

A45369

ELECTRICAL WIRE

WIRE LEAD - regulator

1шт.

7

A45368

NUT

NUT - lead to regulator stud

1шт.

8

A47042

HOLDER

HOLDER ASSEMBLY - brush, with brushes

1шт.

9

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder (insulated)

2шт.

10

A47581

SCREW,#8 - 32 x 1.43"

SCREW - brush holder (grounded)

1шт.

11

A45394

RECTIFIER

BRIDGE ASSEMBLY - rectifier

1шт.

12

A48339

DIODE

DIODE - trio

1шт.

13

A47045

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

14

129-16

NUT,#8-32

NUT, #8-32

3шт.

15

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge

1шт.

16

A45225

MULTIPOLE CONNECTOR

TERMINAL ASSEMBLY - battery, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

18

NSS

NOT SOLD SEPARAT

INSULATOR - terminal stud

1шт.

19

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - outer

1шт.

20

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - inner

1шт.

21

A47734

CAPACITOR

CAPACITOR ASSEMBLY - alternator (Replaces A45017 and A45227)

1шт.

22

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor mounting and lead

2шт.

26

A47048

ARMATURE

STATOR ASSEMBLY - alternator

1шт.

27

A47050

TORQ CONV IMPELLER

ROTOR ASSEMBLY - alternator

1шт.

28

A47596

FRAME

FRAME - drive end

1шт.

29

A65781

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball

1шт.

30

A45232

WASHER

SLINGER - grease

1шт.

31

A44433

PLATE

PLATE - ball bearing retainer

1шт.

32

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - round head slotted, No. 10-24 x 3/8 inch

3шт.

33

195-512

WASHER,#10

WASHER - flat, 7/32 x 7/16 x 1/16 inch (6 x 11 x 2 mm)

3шт.

35

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - flanged slotted hex, No. 10-24 NC x 1-1/2 inch

4шт.

36

A47580

COLLAR

COLLAR - rotor shaft

1шт.

37

R16171

SPRING WASHER

WASHER - lock, drive pulley and fan

1шт.

38

A25546

NUT

NUT - pulley and fan retaining

1шт.
