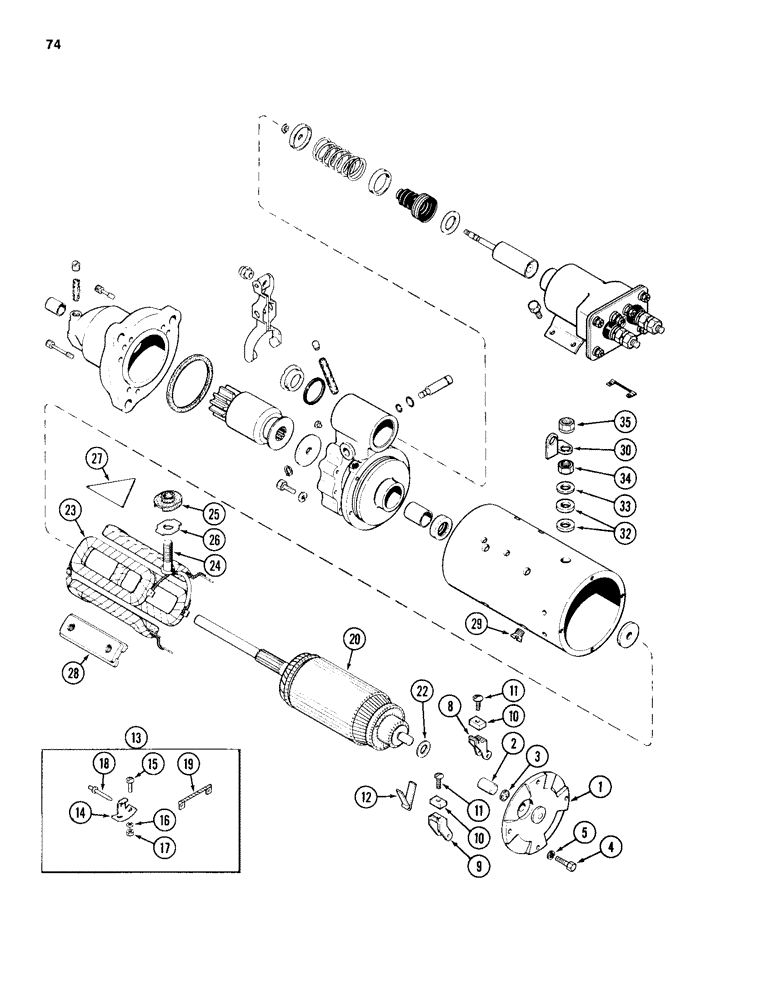

Запчасти Case 680H (074) - R46156 AND L106562 STARTER (04) - ELECTRICAL SYSTEMS

A47498

STARTING MOTOR

STARTER ASSEMBLY - remanufactured, Includes: Ref. 1 - 35 and Ref. 39 - 77 on Figure 76

1шт.

A47499

CORE-STARTER

Return Number, use this part number to return starter core for credit, Includes: Ref. 1 - 35 and Ref. 39 - 77 on Figure 76

1шт.

R46156

STARTING MOTOR

STARTER ASSEMBLY - engine, new (Delco-Remy No. 1113535) Includes: Ref. 1 - 37 and Ref 39 - 77 on Figure 76

1шт.

104213A1R

REMAN-STARTER

Remanufactured, Starter

1шт.

104213A1C

CORE-STARTER

Return Number, Starter

1шт.

A170678

STARTING MOTOR

STARTER ASSEMBLY - engine, new (Delco-Remy No. 1113534) (replaces L106562), Includes: Ref. 1 - 35 and Ref. 39 - 77 on Figure 76

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

1

A45003

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 2 and 3

1шт.

2

A45152

BUSHING

BUSHING - frame

1шт.

3

A47133

WICK

WICK - oil (felt pad)

1шт.

4

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

4шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

A49472

HOLDER

HOLDER - brush, insulated

2шт.

9

A40217

HOLDER

HOLDER - brush, grounded

2шт.

10

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

11

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush, self-tapping

4шт.

12

R15025

SPRING

SPRING - brush tension

4шт.

13

A47072

BRUSH, COMMUTATOR

BRUSH BRUSH SUPPORT KIT - starter, Includes: Ref. 14 - 19

2шт.

14

NSS

NOT SOLD SEPARAT

SUPPORT - brush

1шт.

15

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW - truss head, No. 10 NF x 3/4 inch

4шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

17

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NF

4шт.

18

A47260

PIN

PIN - brush holder

1шт.

19

R15030

ELECTRICAL WIRE

WIRE LEAD - brush

1шт.

20

A40909

ARMATURE

ARMATURE - starter

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust, commutator end

1шт.

23

A43860

COIL

COIL ASSEMBLY - field, Includes: Ref. 24

1шт.

24

A40896

STUD

STUD - field terminal

1шт.

A41925

BUSHING

BUSHING ASSEMBLY - inner, field terminal stud insulating, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud, inner

1шт.

26

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

27

A41977

RUBBER INSULATOR

INSULATOR - field coil

1шт.

28

R15115

SHOE

SHOE - pole

4шт.

29

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoes, flat slotted head

8шт.

30

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

32

D30005

INSULATOR

INSULATOR - field stud, outer

2шт.

33

D30006

WASHER

WASHER - terminal stud

1шт.

34

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

1шт.

35

A47890

NUT

NUT - terminal stud, special

1шт.

A Nippendenso starter is also available as service Ref. as follows :

1шт.

8-44720 instruction sheet

1шт.

L300024 battery to starter cable

1шт.

D129493 starter motor (24V, 7.5KW)

1шт.
