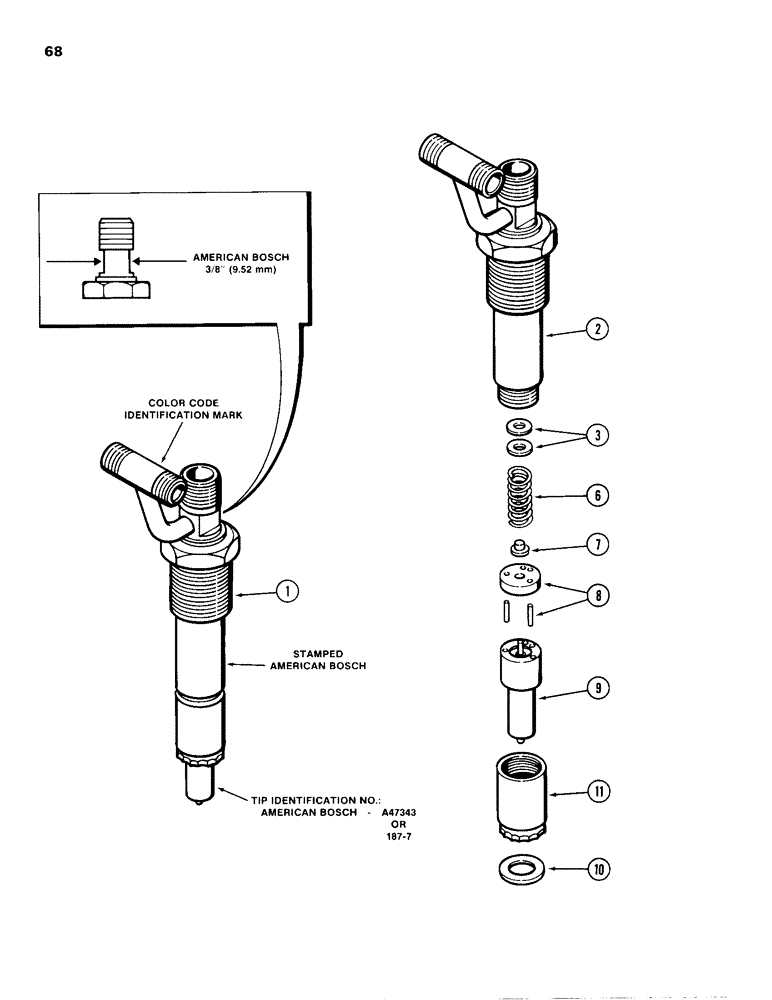

Запчасти Case 680H (068) - FUEL INJECTOR NOZZLE, 336BD DIESEL ENGINE, BLUE COLOR CODE IDENTIFICATION (03) - FUEL SYSTEM

1

A156323

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 1 - 11 and Ref. 15 - 27 on Figure 69A

4шт.

A156323R

REMAN-INJECT NOZZLE

680H

4шт.

A156323C

CORE-NOZZLE, INJECT

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch (Order A156323), Includes: Ref. 2 - 11

1шт.

American Bosch and Robert Bosch injector nozzle components are not interchangeable. See illustration for identification.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156323) (See Figure 69A)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit required to repair six nozzles), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 6 in kit, 0.062 inch (1.57 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 80 in kit, 0.002 inch (0.05 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 50 in kit, 0.007 inch (0.18 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 50 in kit, 0.010 inch (0.25 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 20 in kit, 0.025 inch (0.64 mm)

1шт.

6

A44864

SPRING

- nozzle pressure adjusting

1шт.

7

A44863

SEAT

- nozzle pressure adjusting spring

1шт.

A44862

VALVE

STOP - nozzle assembly, with pin

1шт.

9

A47343

NOZZLE CAP

TIP ASSEMBLY - nozzle injector, Includes: Ref. 10

1шт.

10

A76640

GASKET

- nozzle

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
