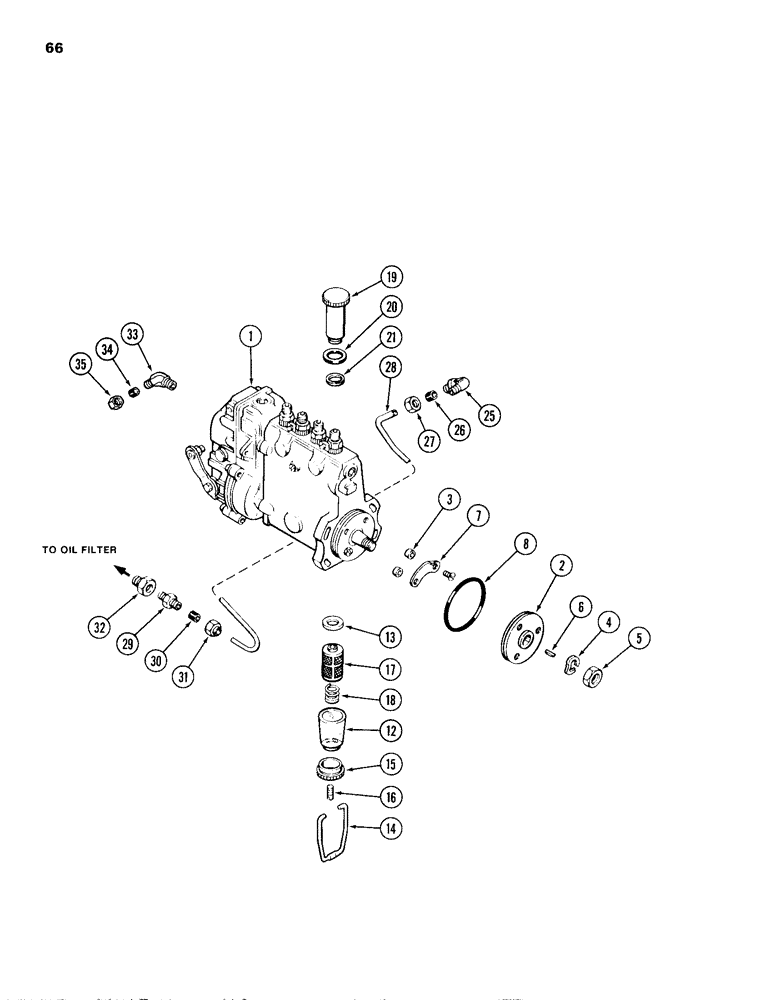

Запчасти Case 680H (066) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

A166087

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection (Replaces A154547), Includes: Ref. 2 - 21

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub retaining

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - hub timing

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- hub

1шт.

12

A43347

BOWL

- filter (Glass)

1шт.

13

A43346

GASKET

- filter bowl

1шт.

14

A43350

CLAMP

BAIL - bowl hanger

1шт.

15

A43348

NUT

BAILNUT - bowl hanger

1шт.

16

A43349

STUD

- bailnut lock and adjustment

1шт.

17

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

18

A43345

SPRING

- element

1шт.

19

A43343

CARTRIDGE

PRIMER ASSEMBLY - hand pump, Includes: Ref. 20

1шт.

20

A45342

GASKET

- hand pump

1шт.

21

A43351

SEAL

- hand pump (copper)

1шт.

25

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degree, 1/4 tube 1/2-24 thread x 1/8 inch PT, Includes: Ref. 26 and 27

1шт.

26

222-102

SLEEVE,1/4" Tube

(6 mm) 1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube (6 mm)

1шт.

28

A136902

TUBE

- pump to oil gallery

1шт.

29

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - straight, 1/4 tube 1/2-24 thread x 1/4 inch PT, Includes: Ref. 30 and 31

1шт.

30

222-102

SLEEVE,1/4" Tube

(6 mm) 1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube (6 mm)

1шт.

32

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducing, 1/4 to 3/8 inch PT

1шт.

33

222-95

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

ASSEMBLY - 45 degree, 3/8 tube 5/8-24 thread x 1/4 inch PT, Includes: Ref. 34 and 35

1шт.

34

222-104

SLEEVE,3/8" Tube

- 3/8 inch (10 mm) tube

1шт.

35

222-114

NUT,5/8"-24

NUT - 3/8 inch (10 mm) tube

1шт.
