Запчасти Case 680H (058) - HAND THROTTLE CONTROL (03) - FUEL SYSTEM

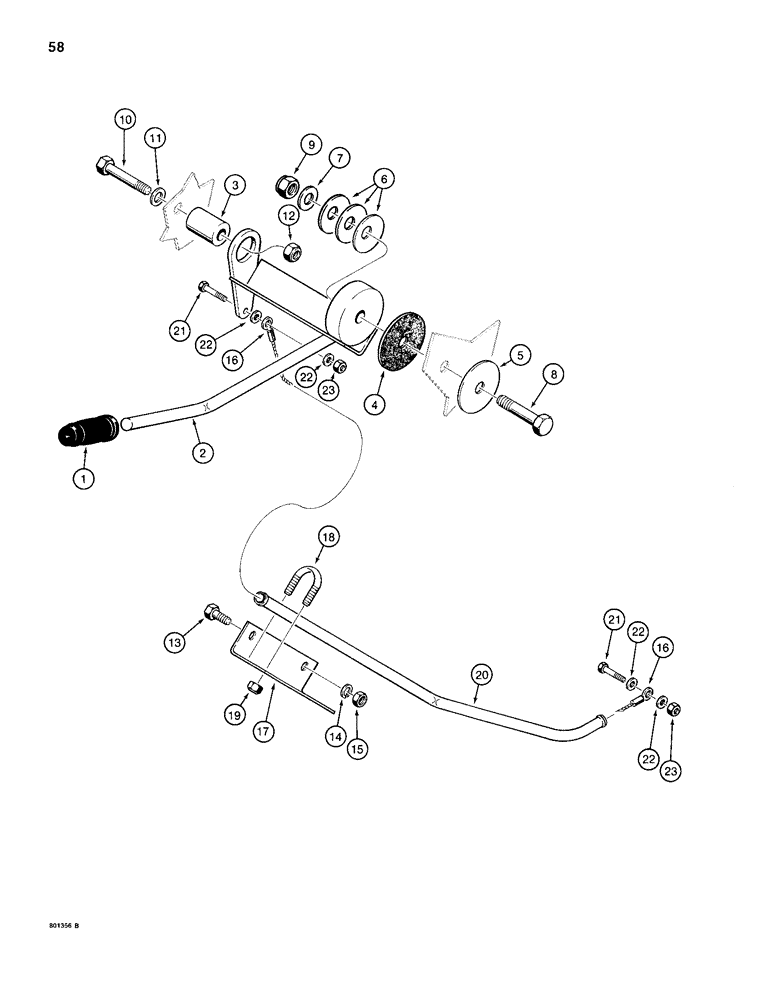

Схема запчастей Case 680H - (058) - HAND THROTTLE CONTROL (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

L52476

HANDLE

- hand throttle lever

1шт.

2

L108300

LEVER

- backhoe hand throttle

1шт.

3

L102794

SPACER

- mounting

1шт.

4

R15071

DISC

- friction

1шт.

5

195-2055

WASHER,17/32" x 2 1/4" x .180"

- flat, special, 2-1/4" OD

1шт.

6

R14771

WASHER

BELLEVILLE SPRING - hand throttle lever

3шт.

7

95-8

WASHER,1/2"

flat 1/2"

1шт.

8

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

9

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

12

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

16

D126821

CABLE

- wire

1шт.

D126821 cable - This replaced part nbr L103880 via sub.

1шт.

17

L103611

BRACKET

- throttle tube holder

1шт.

18

L78949

U-BOLT

- bracket

2шт.

19

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

20

D128905

TUBE

- cable, backhoe hand throttle

1шт.

D128905 cable tube - This replaced L103584 via sub.

1шт.

21

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

22

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

23

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

Both of the above old "L" numbers have been scrapped. The old numbers cannot be mixed with the new as the new nbr cable ends will not fit through the old tube.

1шт.

D126821 was subed to R46465 per ECN D981032 by mistake... R46465 is too long to work in the application. It is recommended to install a knob style hand throttle. Order kit D137517 (See NLB SB 002 87)

1шт.
