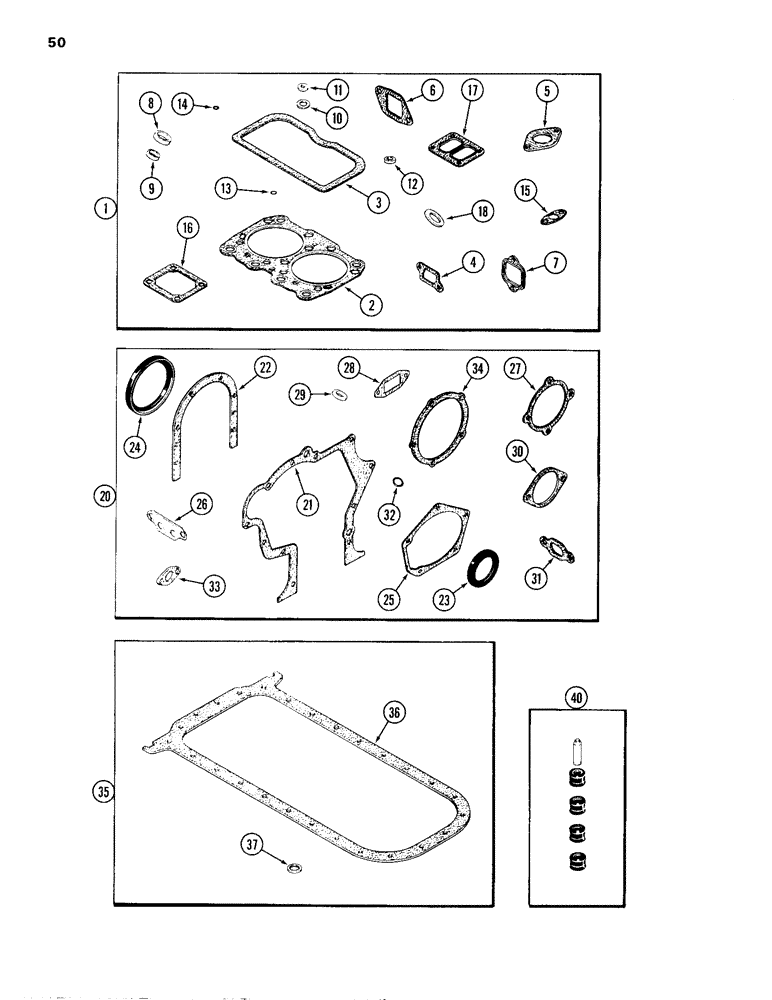

Запчасти Case 680H (050) - ENGINE GASKET KITS, 336BD DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A157302

GASKET

KIT - valve grind, Includes: Ref. 2 - 18

1шт.

For complete engine overhaul order 1-A44075, 1-A157302 and 1-A42221 gasket kits.

1шт.

2

A142483

GASKET

- cylinder head to block (Replaces A138397)

2шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover (Replaces A65734)

2шт.

4

A166147

GASKET

- water manifold (Replaces A58637)

2шт.

5

A166148

GASKET

- thermostat housing (Replaces G46907)

1шт.

A166148 gasket - The illustration shows this part as a single hole gasket. The A166148 gasket is a two hole gasket for dual thermostat application. If single hole gasket is required, order G46907.

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

4шт.

7

A58895

GASKET

- exhaust manifold (steel faced)

4шт.

7

A58666

MANIFOLD GASKET

- exhaust manifold (asbestos faced)

4шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzles

4шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- injector nozzle carbon stop

4шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, lower

2шт.

11

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube, upper (Replaces A34133)

2шт.

12

A142098

GROMMET

- cover studs (Replaces A23684 gasket)

4шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

2шт.

14

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake and exhaust valves (See Ref. 40)

8шт.

15

A58892

GASKET,1.59mm Thk

- (Not used this application)

1шт.

16

A58910

GASKET

- (Not used this application)

1шт.

17

A58899

GASKET,0.45mm Thk

- (Not used this application)

2шт.

18

1342829C1

GASKET

- fuel nozzle; Replaces A76640

4шт.

20

A44075

GASKET KIT

- cylinder block, Includes: Ref. 21 - 34

1шт.

For complete engine overhaul order 1-A44075, 1-A157302 and 1-A42221 gasket kits.

1шт.

21

A58612

GASKET

- timing gear cover

1шт.

22

A32830

GASKET

- rear seal retainer

1шт.

23

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft, front (Replaces A62049)

1шт.

24

A62050

OIL SEAL

- oil, crankshaft, rear

1шт.

25

A58615

GASKET

- fuel pump cover

1шт.

26

A58756

OIL PAN GASKET SET

- oil filter base

1шт.

27

A58646

GASKET

- water, Serial Range: pump-body

1шт.

28

A58649

GASKET

- water pump, Serial Range: body-head

1шт.

29

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

30

A58617

GASKET

- (Not used this application)

1шт.

31

A58670

GASKET

- (Not used this application)

1шт.

32

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- (Not used this application)

1шт.

33

A58680

OIL PAN GASKET SET

- (Not used this application)

1шт.

34

A76656

GASKET

- (Not used this application)

1шт.

35

A42221

GASKET KIT

- oil pan, Includes: Ref. 36 and 37

1шт.

For complete engine overhaul order 1-A44075, 1-A157302 and 1-A42221 gasket kits.

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

37

A27968

RING

- drain plug

1шт.

40

M20614

SEAL KIT

SEAL KIT - valves (Includes 4 seals and installation sleeve)

2шт.
