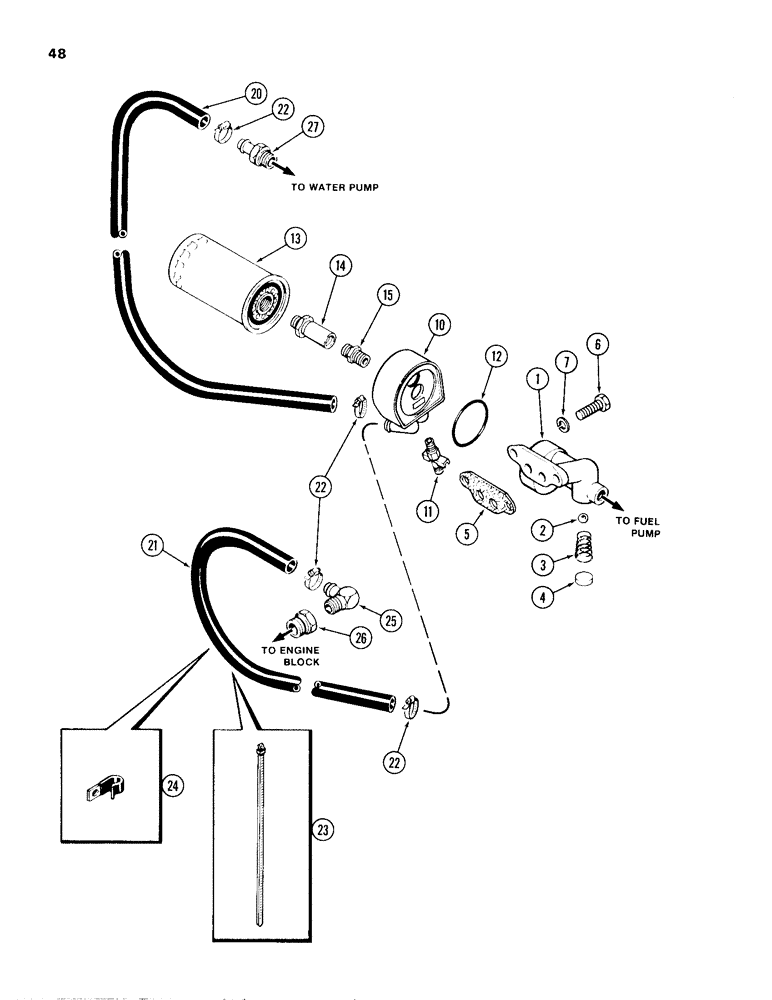

Запчасти Case 680H (048) - OIL FILTER AND COOLER, 336BD DIESEL ENGINE (02) - ENGINE

1

A155956

BASE

ASSEMBLY - oil filter and cooler (See Ref. 30), Includes: Ref. 2 - 4

1шт.

2

211-15

BALL,5/8" Dia

- 5/8 inch (16 mm) diameter steel

1шт.

3

A155953

SPRING

- relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- cup type, 1 inch (25 mm)

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

6

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

10

A66295

COOLER

- oil

1шт.

11

217-107

VALVE

DRAINCOCK - cooler (Discard 1/8 inch pipe plug in cooler)

1шт.

12

A153806

SEALING RING

- oil, Serial Range: cooler-base

1шт.

13

A44081

ENGINE OIL FILTER

FILTER - oil

1шт.

A44081 oil filter - The 680H is shipped from plant with A75294 short oil filter. The A44081 is used for service because it has more filtration media surface and will last longer.

1шт.

14

A66992

ADAPTER

- (A44081 filter to A58757 adapter)

1шт.

15

A58757

ADAPTER

- (A66992 adapter to A66295 cooler)

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - water inlet, 47 inch (1 194 mm) long (Order A42610)

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - water outlet, 25 inch (635 mm) long (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8 inch ID x 1 inch OD x 50 feet (13 x 16 mm x 15 m)

1шт.

(Cut to length required)

1шт.

22

214-353

CLAMP,#46, 2.62"-2.31", T-Bolt

- hose, 9/16 to 1-1/16 inch (15 to 27 mm)

4шт.

23

R38237

STRAP

- hose tie

1шт.

24

A59718

CLAMP

- hose, J Type

2шт.

25

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - 90 degree, 1/2 PT x 5/8 inch hose barb end

1шт.

26

221-60

TUBE

REDUCER - 3/4 to 1/2 inch (in block)

1шт.

27

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - straight, 1/2 PT x 5/8 inch hose bard end

1шт.
