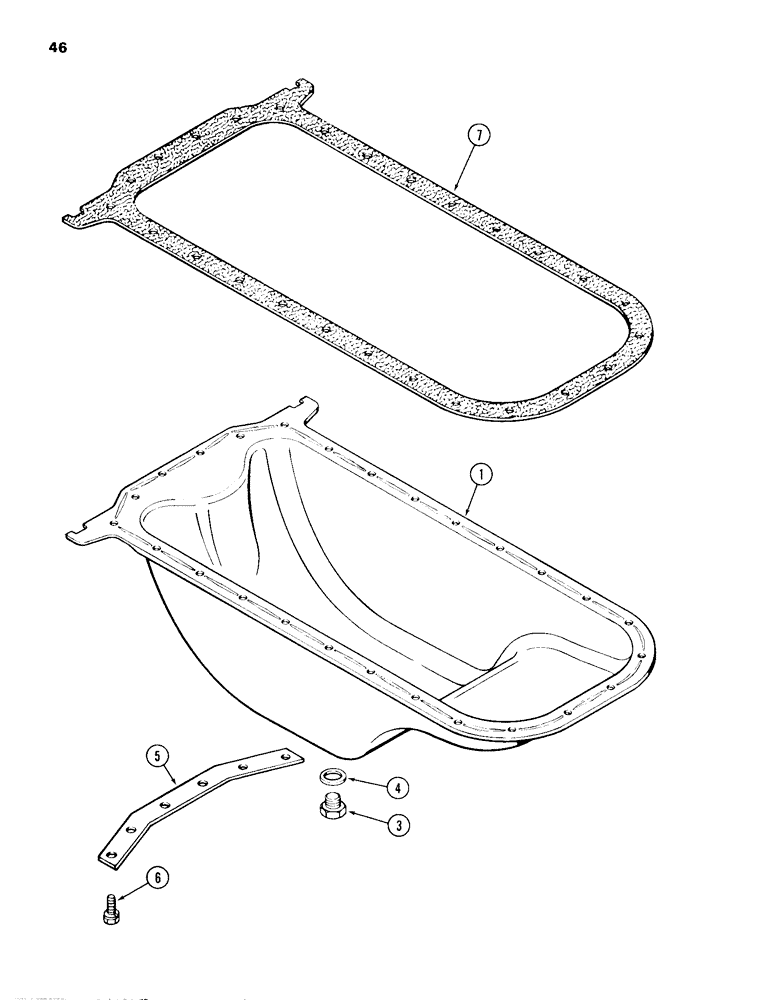

Запчасти Case 680H (046) - OIL PAN, 336BD DIESEL ENGINE (02) - ENGINE

1

A154963

PAN ASSY.

PAN ASSEMBLY - oil, engine

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

4

A27968

RING

- drain plug, copper

1шт.

5

A58932

STRAP

- reinforcing

1шт.

6

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT ASSEMBLY - hex, 3/8 NC x 7/8 inch (with washer)

26шт.

7

REF

INSTRUCTION

GASKET - oil pan (See Figure 50)

1шт.
