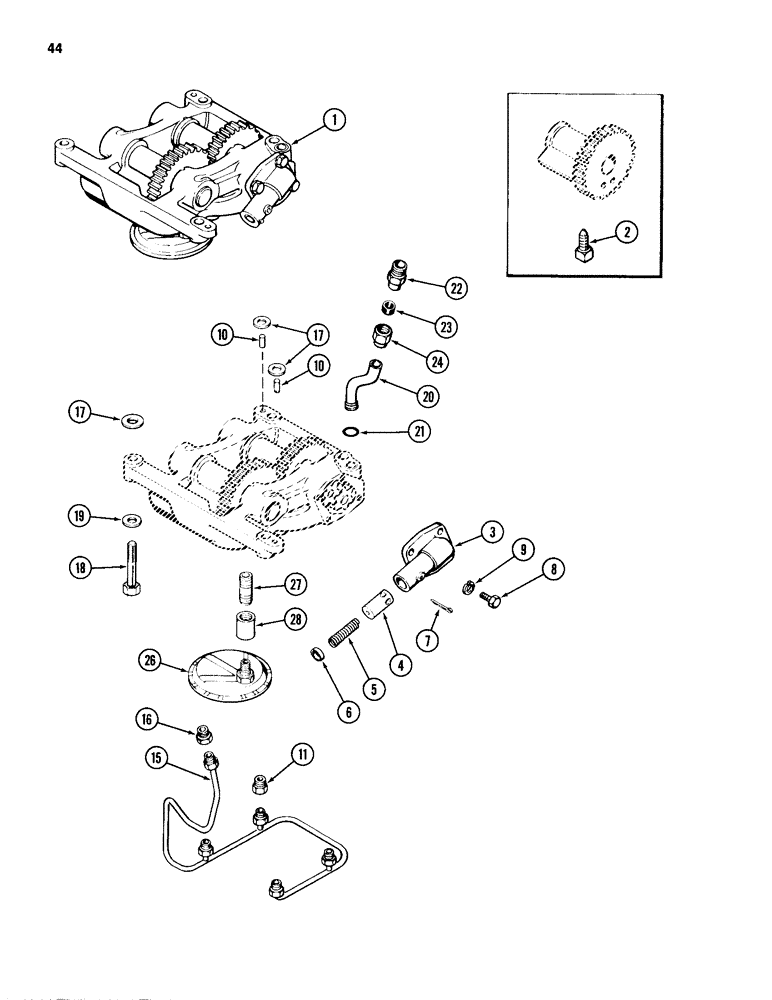

Запчасти Case 680H (044) - BALANCER AND OIL PUMP, 336BD DIESEL ENGINE (02) - ENGINE

1

A66168

PUMP, ENGINE OIL

BALANCER ASSEMBLY - engine, Includes: Ref. 2 - 11

1шт.

2

181-675

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - square head dog point set, 1/2 NC x 1-1/4 inch

4шт.

3

A153795

COVER

- oil pump

1шт.

4

A65083

VALVE

- relief, oil pump

1шт.

5

A151960

SPRING

- relief valve, 2 inch (50 mm) free length

1шт.

6

41-1011

PLUG,Cup, 11/16"

- cup type, 11/16 inch (17 mm)

1шт.

7

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32 x 1-1/2 inch

1шт.

8

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

8

113-176

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

1шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

A8134

PIN

- dowel, balancer locating

2шт.

11

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - 1/4 tube 7/16-24 thread x 1/8 inch PT

4шт.

15

A62002

MANIFOLD

- balancer oil supply

1шт.

16

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - 1/4 tube 7/16-24 thread x 1/8 inch PT

1шт.

17

G49401

SHIM,.005" Thk

Mounting (0.13 mm) .005" Thk

1шт.

17

G49402

SHIM,.010" Thk

Mounting (0.26 mm) .010" Thk

1шт.

17

A166242

SHIM

- mounting, 0.002 inch (0.051 mm)

1шт.

These are used to adjust gear backlash.

1шт.

18

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

18

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

19

A150672

WASHER

- balancer mounting

4шт.

20

A61130

TUBE

-, Serial Range: pump-block

1шт.

21

A64436

O-RING,0.549" ID x 0.755" OD

- tube

1шт.

22

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSEMBLY - straight, 5/8 tube 1-18 thread x 1/2 inch PT, Includes: Ref. 23 and 24

1шт.

23

222-106

SLEEVE,5/8" Tube

- for 5/8 inch tube

1шт.

24

222-116

TUBE NUT,1"-18

NUT - for 5/8 inch tube

1шт.

26

A22590

FILTER SCREEN

SCREEN ASSEMBLY - oil inlet

1шт.

27

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2 PT x 2 inch

1шт.

28

221-338

COUPLING,Pipe, 1/2" NPT

- half, 1/2 inch PT

1шт.
