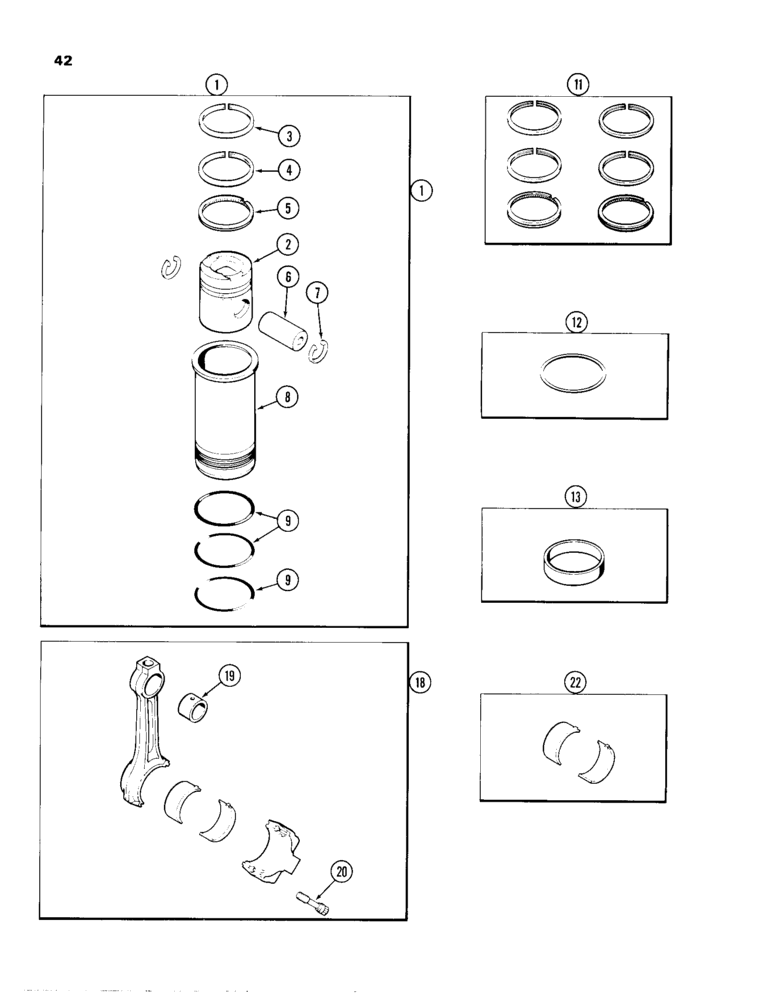

Запчасти Case 680H (042) - PISTONS, 336BD DIESEL ENGINE, CONNECTING RODS (02) - ENGINE

1

A166134

SET

PISTON AND SLEEVE ASSEMBLY - engine (Replaces A156931), Includes: Ref. 2 - 9

2шт.

2

A166122

PISTON

PISTON - cylinder (Replaces A66531)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref. 11) (Reference No. A166110)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref. 11) (Reference No. A66509)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref. 11) (Reference No. A66530)

2шт.

6

A140607

PISTON PIN,41.27mm OD x 93.34mm L

PIN - piston

2шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston (cylinder liner) (Three Groove)

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

O-RING - sleeve packing

6шт.

11

A48320

SET

RING SET - piston re-ring (Set of 1) (Replaces A44060)

4шт.

12

A148553

SHIM

SHIM - sleeve, 0.010 inch (0.254 mm) (Repairs Only)

1шт.

12

A148554

SHIM

SHIM - sleeve, 0.005 inch (0.127 mm) (Repairs Only)

1шт.

13

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs Only)

1шт.

18

A62954

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 19 and 20

4шт.

18

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

4шт.

18

AC62954

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number, N.A. Only

4шт.

19

A61241

BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L

BUSHING - piston pin

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod bearing cap

2шт.

22

A43173

BEARING LINER

INSERT KIT - connecting rod bearing, Standard (Set of 2)

4шт.

22

A43174

BEARING LINER

INSERT KIT - connecting rod bearing

1шт.

*

0.002 inch undersize (0.06 mm) (Set of 2)

4шт.

22

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - connecting rod bearing

1шт.

*

0.010 inch undersize (0.26 mm) (Set of 2)

4шт.

22

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - connecting rod bearing

1шт.

*

0.020 inch undersize (0.51 mm) (Set of 2)

4шт.

22

A43177

BEARING LINER

INSERT KIT - connecting rod bearing

1шт.

*

0.030 inch undersize (0.77 mm) (Set of 2)

4шт.
