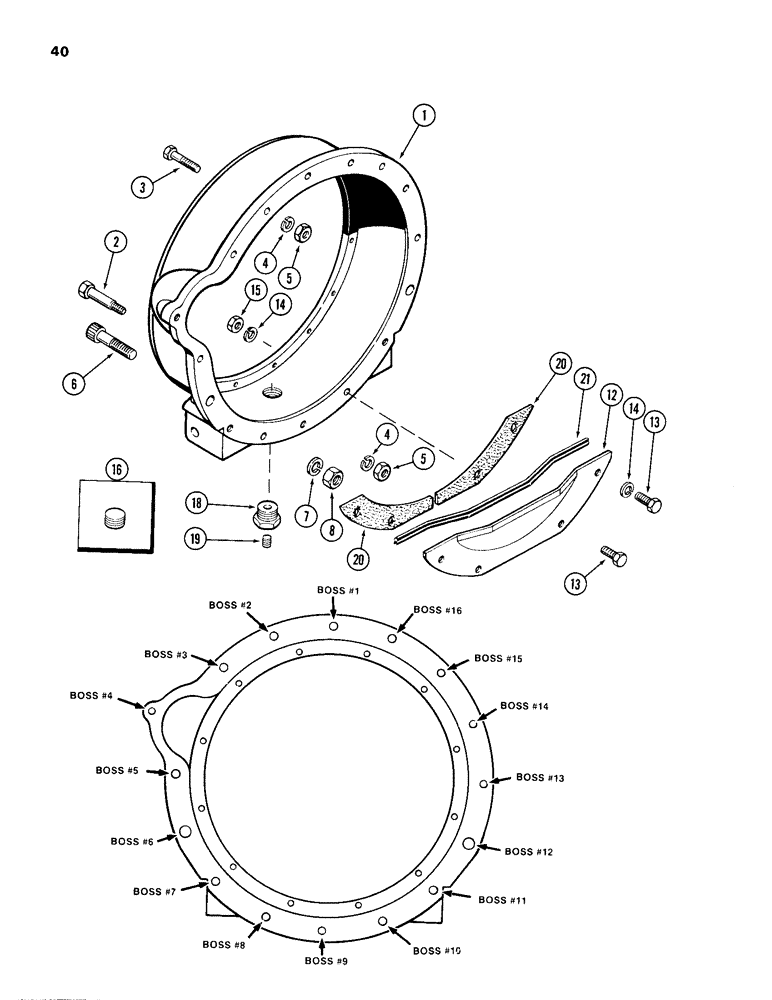

Запчасти Case 680H (040) - FLYWHEEL HOUSING, 336BD DIESEL ENGINE (02) - ENGINE

1

A166156

HOUSING

ASSEMBLY - flywheel (Includes: Ref. 18 and 19)

1шт.

2

A149765

STEP BOLT

BOLT - hex dowel, 2-21/32 inch (Hole 5 or 13)

1шт.

2

A149764

STEP BOLT

BOLT - hex dowel, 3-9/64 inch (Hole 5 or 13)

1шт.

3

113-824

BOLT,Hex, 7/8" - 9 x 4-1/2", Gr 5

- hex, 1/2 NC x 1-3/8 inch (Holes 1, 2 and 16)

3шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (Holes 3, 4, and 15)

3шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

5шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 12 point head, 3/4 NC x 3 inch (Holes 6 and 12)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-137

NUT,3/4"-10, G5

2шт.

12

A58931

GUARD

SHIELD - dust, flywheel

1шт.

13

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

(Holes 8 and 10) Hex, 1/2"-13 x 3/4", G5, Full Thd

2шт.

13

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Holes 7 and 11) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

129-108

NUT,3/4"-10, G5

- hex, 1/2 inch NC

2шт.

16

221-1036

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - square socket head pipe, 1 inch PT

1шт.

18

221-1062

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - hex reducer, 1 to 1/4 inch PT

1шт.

19

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square socket head pipe, 1/4 inch PT

1шт.

20

L111430

GASKET

- dust shield, flywheel

2шт.

21

L109461

SEAL

- dust shield, flywheel

1шт.
