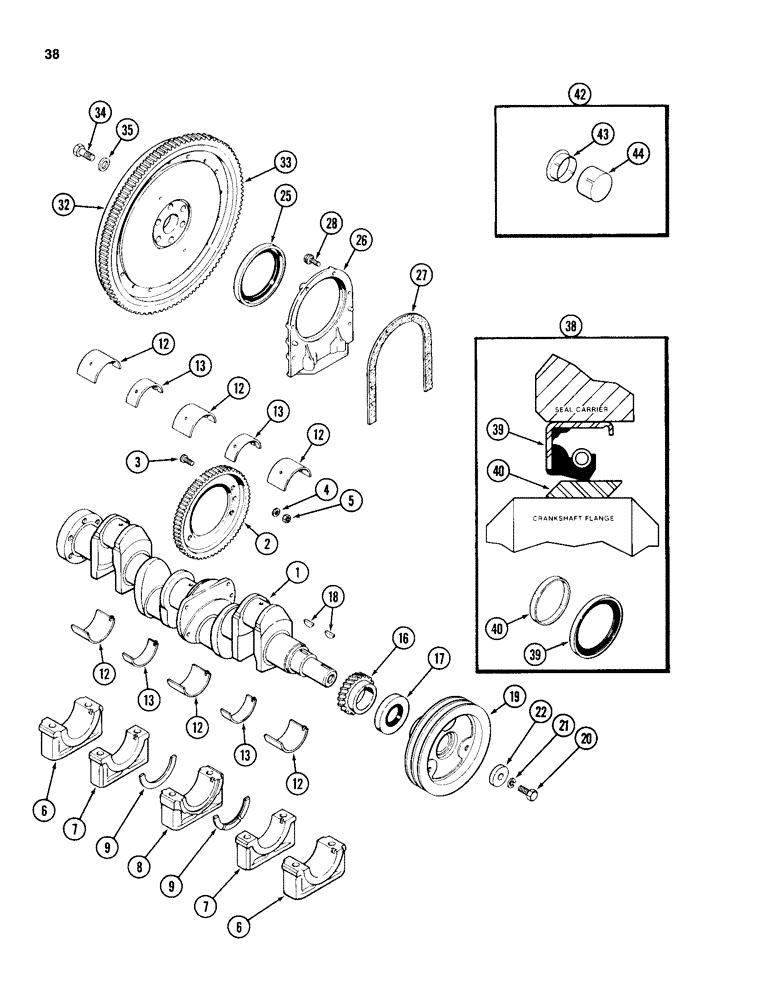

Запчасти Case 680H (038) - CRANKSHAFT AND FLYWHEEL, 336BD DIESEL ENGINE, WEAR SEAL KIT (02) - ENGINE

1

A166116

CRANK

SHAFT - engine, 0.010 inch (0.26 mm) undersize journals

1шт.

1

A166001

CRANKSHAFT

- engine (Replaces A58889)

1шт.

2

A157316

GEAR

- balancer drive (Replaces A148425)

1шт.

3

A155438

SCREW,Torx, 3/8" - 24 x 1 1/4"

- balancer gear to crankshaft, flat socket head

4шт.

4

A50820

WASHER

- flat, hardened

4шт.

5

A51904

NUT

NUT - hex, 3/8 inch NF Special

4шт.

6

A154391

CAP

- main bearing, front and rear (wide)

2шт.

7

A154390

CAP

- main bearing, intermediate (narrow)

2шт.

8

A154392

CAP

- main bearing, thrust, center (wide)

1шт.

9

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, center bearing, standard, 0.185 inch (0.47 mm)

2шт.

9

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, center bearing, oversize, 0.006 inch (0.49 mm)

2шт.

12

A43163

BEARING LINER

LINER SET - main bearing, wide, standard (Set of 2)

3шт.

12

A43164

BEARING LINER

LINER SET - main bearing, wide, 0.002 inch undersize (0.06 mm) (Set of 2)

3шт.

12

A43165

BEARING LINER

LINER SET - main bearing, wide, 0.010 inch undersize (0.26 mm) (Set of 2)

3шт.

12

A43166

BEARING LINER

LINER SET - main bearing, wide, 0.020 inch undersize (0.51 mm) (Set of 2)

3шт.

12

A43167

BEARING LINER

LINER SET - main bearing, wide, 0.030 inch undersize (0.77 mm) (Set of 2)

3шт.

13

A43158

BEARING LINER

LINER SET - main bearing, narrow, standard (Set of 2)

2шт.

13

A43159

BEARING LINER

LINER SET - main bearing, narrow, 0.002 inch undersize (0.06 mm) (Set of 2)

2шт.

13

A43160

BEARING LINER

LINER SET - main bearing, narrow, 0.010 inch undersize (0.26 mm) (Set of 2)

2шт.

13

A43161

BEARING SET

LINER SET - main bearing, narrow, 0.020 inch undersize (0.51 mm) (Set of 2)

2шт.

13

A43162

BEARING LINER

LINER SET - main bearing, narrow, 0.030 inch undersize (0.77 mm) (Set of 2)

2шт.

16

A66404

GEAR

- crankshaft

1шт.

17

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, front (Replaces A62049)

1шт.

18

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

19

A166097

PULLEY

- fan drive (Replaces A66621)

1шт.

20

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

- hex, 5/8 NF x 1-1/2 inch (Replaces A28028)

1шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A156428

WASHER

- pulley (Replaces A27903)

1шт.

25

A62050

OIL SEAL

- oil, rear (See Ref 38)

1шт.

26

A57457

RETAINER

- rear oil seal

1шт.

27

A32830

GASKET

- rear oil seal retainer

1шт.

28

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - hex Sems, 3/8 NC x 1-1/4 inch

6шт.

32

A153264

WHEEL

FLYWHEEL ASSEMBLY - engine, Includes: Ref. 33

1шт.

33

A27920

GEAR

- ring, starter

1шт.

34

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- hex, 5/8 NF x 1-1/2 inch

6шт.

35

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flywheel bolt

6шт.

38

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, 4-7/8 x 5-3/4 x 1/2 inch (124 x 146 x 13 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - wear, 4-3/4 x 4-7/8 x 9/16 inch (121 x 124 x 14 mm)

1шт.

42

A154684

SLEEVE

WEAR SLEEVE KIT - oil, crankshaft front, Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

44

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
