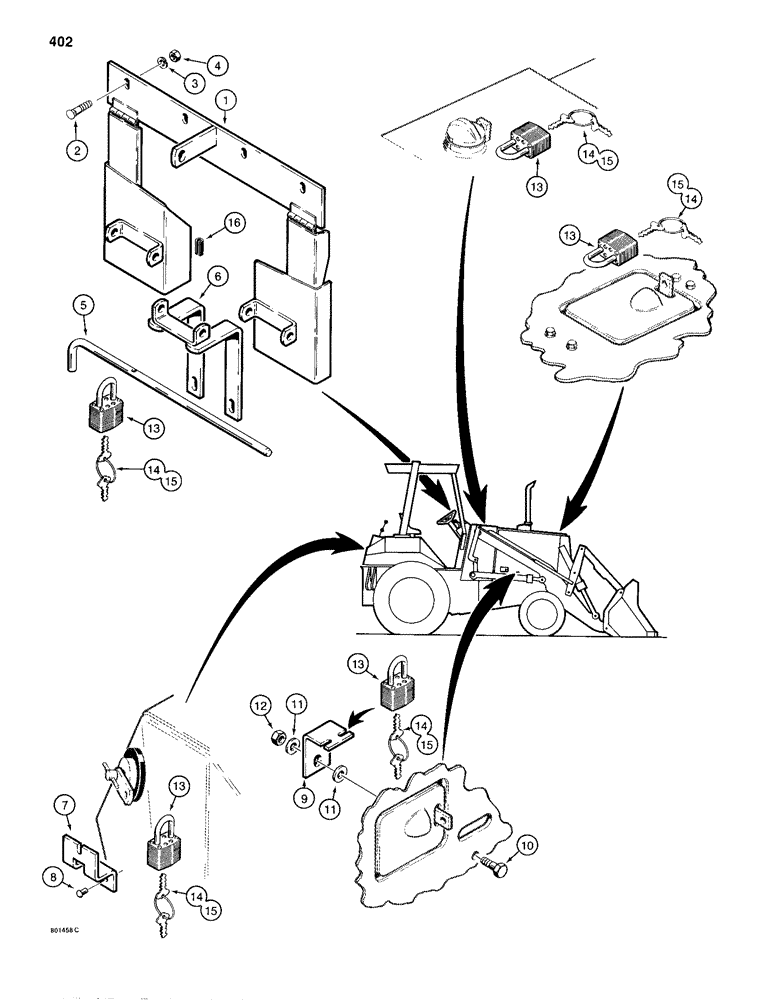

Запчасти Case 680H (402) - LOCKUP PARTS (09) - CHASSIS/ATTACHMENTS

1

L106333

COVER ASSY

COVER - instrument panel cover, if used

1шт.

2

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

5

L106334

HANDLE

- instrument panel cover

1шт.

6

L106905

BRACKET

- instrument panel cover lock

1шт.

7

L105960

BRACKET

- fuel filler cap lock

1шт.

8

151-544

RIVET,Pop, 3/16" x .515"

POP RIVET - filler cap bracket

2шт.

9

L104025

PLATE, LOCKING

BRACKET - engine side panel lock

2шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

12

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

13

D93753

PADLOCK

- includes keys, Includes: Ref. 14 and 15

6-7шт.

This can be either a Master or Yale lock. Production ocasionally used a plain padlock which said "Case" on it. This was a production only lock (P/N D93520) which included the lock and key. The lock was P/N D93750 (not service) and the key was D93751 (still available).

1шт.

14

R29555

KEY

- for Master padlock only

2шт.

15

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

16

D36180

LINING

TRIM - 2-1/4" (57 mm) long, if used

2шт.

Use D52812 (bulk) trim, 83" (2108 mm) long and cut to the required length.

1шт.
