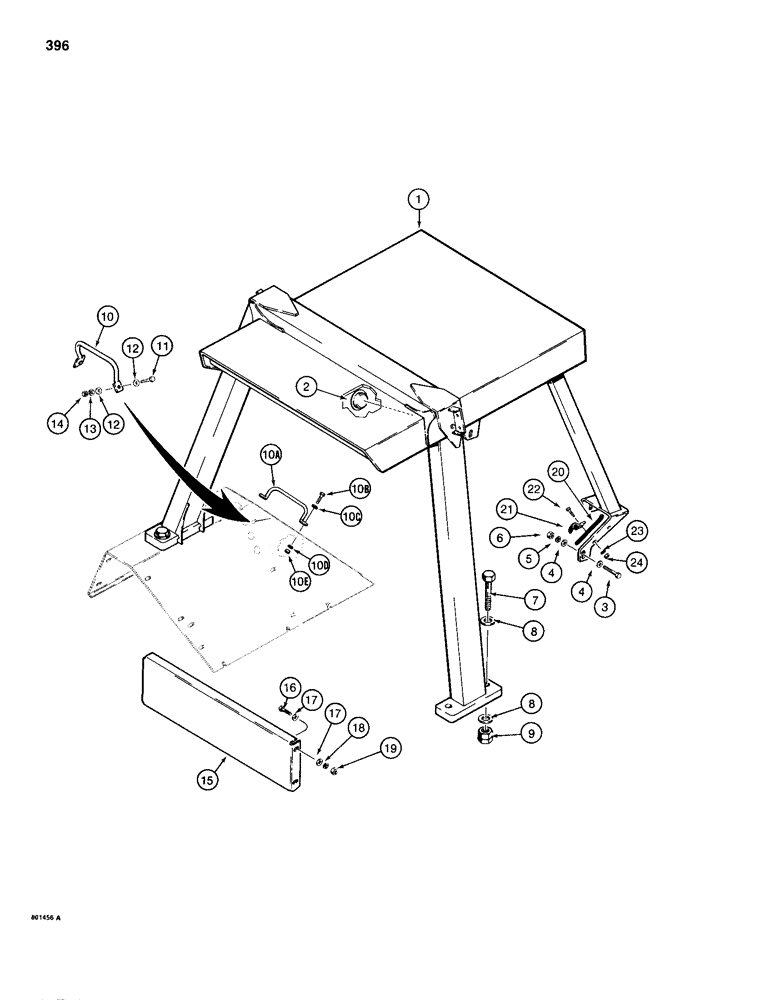

Запчасти Case 680H (396) - ROPS CANOPY AND REAR CLOSURE PANEL (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

ROPS CANOPY - machinery item, see Figure 2 for ordering

1шт.

2

205-72

HOLE PLUG BUTTON,3"

PLUG - button, steel, (76 mm) diameter 3"

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

4

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

7

26-2076

BOLT,Hex, 1-1/4" - 7 x 4-3/4", Gr 8

- hex head, 1-1/4" - 7 NC x 4-3/4", grade 8

4шт.

8

D43536

WASHER

- flat, special

8шт.

9

131-1223

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

4шт.

10

L103866

HANDLE

GRAB HANDLE - canopy, rear left-hand, if used order L36229 kit to convert from fender mounted grab handle to fender shield mounted grab handle

1шт.

10a

L73545

HANDLE

GRAB HANDLE - canopy, rear left-hand, if used

1шт.

Part of Grab Handle Kit P/N L36229

1шт.

10b

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

Part of Grab Handle Kit P/N L36229

1шт.

10c

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

Part of Grab Handle Kit P/N L36229

1шт.

10d

92-6

LOCK WASHER,3/8"

2шт.

Part of Grab Handle Kit P/N L36229

1шт.

10e

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

Part of Grab Handle Kit P/N L36229

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

15

L103520

PANEL ASSY.

PANEL - rear closure, used with ROPS canopy only

1шт.

16

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

20

L105943

HOSE ASSY.

HOSE - harness cover

1шт.

21

49855

CLAMP

- hose

2шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

L36229

KIT

- grab handle, Includes: Ref. 10A-10E

1шт.

Noise suppression headliner for canopy is available as part nbr D124147.

1шт.
