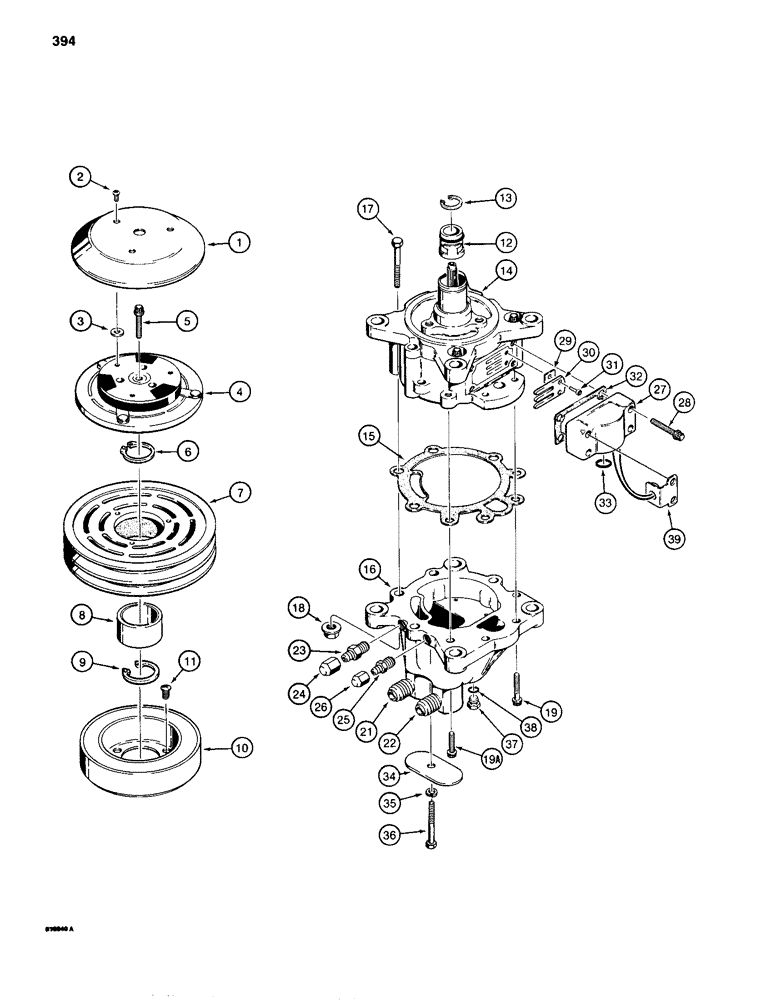

Запчасти Case 680H (394) - L107676 AIR CONDITIONER COMPRESSOR (09) - CHASSIS/ATTACHMENTS

L107676

COMPRESSOR

- air conditioner, York No. VR912RP26, Includes: Ref. 1 - 39

1шт.

L104541

CLUTCH - compressor, Includes: Ref. 1 - 11

1шт.

1

N7246

PLATE - guard

1шт.

2

164-537

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/8"

MACHINE SCREW - 5/16" - 18 NC x 3/8"

3шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

3шт.

4

NSS

NOT SOLD SEPARAT

ARMATURE - compressor

1шт.

5

164-522

SCREW,Btn Hd, #10 - 24 x 1/2"

BOLT - hex socket head, No. 10 - 24 NC

1шт.

6

N7242

SNAP RING -, Serial Range: pulley-compressor

1шт.

7

NSS

NOT SOLD SEPARAT

PULLEY - compressor

1шт.

8

N7244

BEARING - pulley

1шт.

9

N7243

SNAP RING - pulley bearing

1шт.

10

N7245

COIL - compressor

1шт.

11

164-521

HEX SOC SCREW,Btn Hd, #10 - 24 x 3/8"

MACHINE SCREW - No. 10 - 24 NC x 3/8"

3шт.

12

N7164

SEAL ASSEMBLY - shaft, Includes: Ref. 13

1шт.

13

A42256

SNAP RING,0.901", Int, #90

shaft seal 0.901", Int, #90

1шт.

14

NSS

NOT SOLD SEPARAT

COMPRESSOR - cylinder

1шт.

15

N7165

GASKET - sump

1шт.

16

NSS

NOT SOLD SEPARAT

SUMP - oil separator

1шт.

17

113-173

BOLT,Hex, 5/16" - 18 x 1/4", Gr 5

- hex head, 5/16" - 18 NC x 3-1/4"

4шт.

18

9635082

NUT,5/16" - 18, Gr 5

4шт.

19

61-428

HEX SOC SCREW,1/4"-20 x 1 3/4"

BOLT - Ferry head, 1/4" - 20 NC x 1-3/4"

2шт.

19a

61-420

HEX SOC SCREW,1/4"-20 x 1 1/4"

BOLT - Ferry head, 1/4" - 20 NC x 1-1/4"

2шт.

20

16202

O-RING,40544" ID x 13" OD x 1"

- sump to fitting, not shown

2шт.

21

N7166

FITTING - suction

1шт.

22

N7167

FITTING - discharge

1шт.

23

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - 1/8" x 1/4", suction

1шт.

24

218-752

CAP,37 Degree, 7/16"-20

1/4", Service port 37º, 7/16"-20

1шт.

25

218-1021

HYD CONNECTOR,3/8" - 24 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - 1/8" - 3/16", discharge

1шт.

26

218-751

CAP,37 Degree, 3/8"-24

- 3/16", service port

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

28

61-420

HEX SOC SCREW,1/4"-20 x 1 1/4"

BOLT - Ferry head, 1/4" - 20 NC x 1-1/4"

4шт.

N7168

VALVE - kit, discharge, Includes: Ref. 29 - 33

1шт.

29

NSS

NOT SOLD SEPARAT

GUARD - valve

1шт.

30

NSS

NOT SOLD SEPARAT

VALVE - discharge

1шт.

31

165-141

HEX SOC SCREW,#10 - 24 x 5/8"

BOLT - hex socket head, No. 10 - 24 NC x 5/16"

2шт.

32

NSS

NOT SOLD SEPARAT

GASKET - discharge valve

1шт.

33

N7169

O-RING - valve

1шт.

34

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

36

114-258

BOLT,Hex, 3/8" - 24 x 2-1/8", Gr 5

- hex head, 3/8" - 24 NF x 2-1/8", zinc plated

1шт.

37

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Drain, Includes Ref. 38 Hex Hd, 3/8"-24 ORB

1шт.

38

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, plug

1шт.

39

N7369

SWITCH - thermal protector

1шт.
