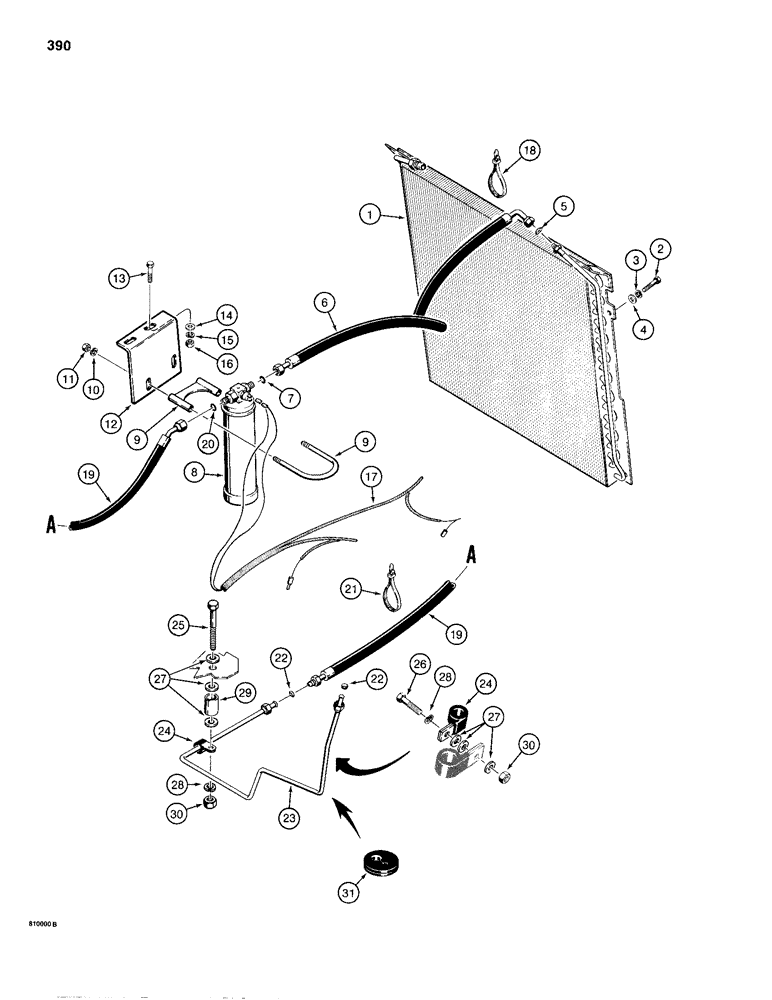

Запчасти Case 680H (390) - AIR CONDITIONING SUPPLY LINES, CONDENSER TO RECEIVER-DRIER AND CAB (09) - CHASSIS/ATTACHMENTS

1

L104391

CONDENSER - refrigerant cooler

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

5

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

6

L104462

HOSE - condenser to receiver-drier, Includes: Ref. 7

1шт.

7

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Hose

1шт.

8

A76312

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

9

L72884

CLAMP

ASSEMBLY - receiver drier, Includes: Ref. 10 and 11

1шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

L107810

BRACKET

- receiver-drier

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

L105078

HARNESS - air conditioning

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

L104371

HOSE - receiver-drier to cab, Includes: Ref. 20

1шт.

20

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Hose

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

23

L107630

TUBE,0.375" OD

- to cab, 3/8" OD

1шт.

24

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- tube

2шт.

25

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

26

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

27

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

6шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

D36524

BUSHING

SPACER - clamp

1шт.

30

9635082

NUT,5/16" - 18, Gr 5

2шт.

31

L104424

GROMMET - tubes, in floor plate

1шт.
