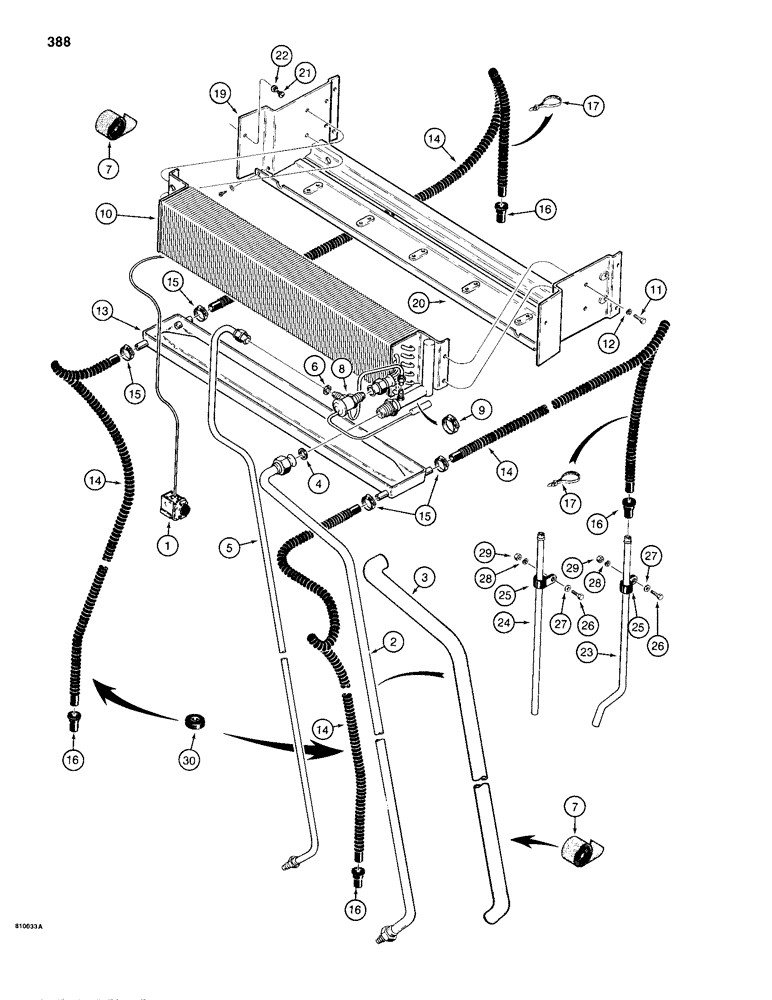

Запчасти Case 680H (388) - CAB AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SWITCH - air conditioning control, see Figure 374

1шт.

2

F44941

TUBE

SPARE PART Suction, 3/4" OD

1шт.

3

F44878

SPARE PART Suction tube, if used 19 mm ID x 36.51 mm OD x 145.5 mm L

1шт.

4

222-996

GASKET,3/4 Tube, Fl, Copper

Suction tube

1шт.

5

F44940

TUBE

SPARE PART Pressure, 3/8" OD

1шт.

6

222-993

GASKET,3/8 Tube, Fl, Copper

Pressure tube

1шт.

7

A42902

SEALING STRIP

TAPE - cork, insulating, bulk roll, 30 ft (914 cm) long

1шт.

8

F64389

VALVE

Expansion

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

10

F44712

CORE

Evaporator

1шт.

11

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

13

F44731

PAN

Condensation

1шт.

14

REF

INSTRUCTION

HOSE - drain, from condensation pan, 100" (2540 mm) long, cut from F64508, see below

4шт.

15

214-300

CLAMP

Hose

4шт.

16

F44790

VALVE

END - drain hose, rubber

4шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

1шт.

18

F96715

SHEET

BRACKET - mounting, core, one piece, no longer used, order Refs. 19 and 20, not shown

1шт.

19

F96821

BRACKET

Mounting, core

1шт.

20

F96820

PANEL

Mounting, core

1шт.

21

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Slotted

6-8шт.

22

193-6

LOCK WASHER,Ext Tooth, #10

6-8шт.

23

L104944

TUBE,0.375" OD

SPARE PART Extension, air conditioning drain, RH

1шт.

24

L104945

TUBE,0.375" OD x 17.5" L

SPARE PART Extension, air conditioning drain, LH

1шт.

25

49852

PTO SHAFT

Drain tubes

4шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

27

95-5

WASHER,3/8" x 7/8" x .083"

Flat, 5/16"

4шт.

28

92-5

LOCK WASHER,5/16"

4шт.

29

9635082

NUT,5/16" - 18, Gr 5

4шт.

30

L15339

GROMMET,5/16" ID x 1 1/4" Groove Dia

Rear drain hoses, in fenders

2шт.

F64508

HOSE,0.43" ID x 100' Bulk

HOSE, - Drain 0.43" ID x 100' Bulk

1шт.
