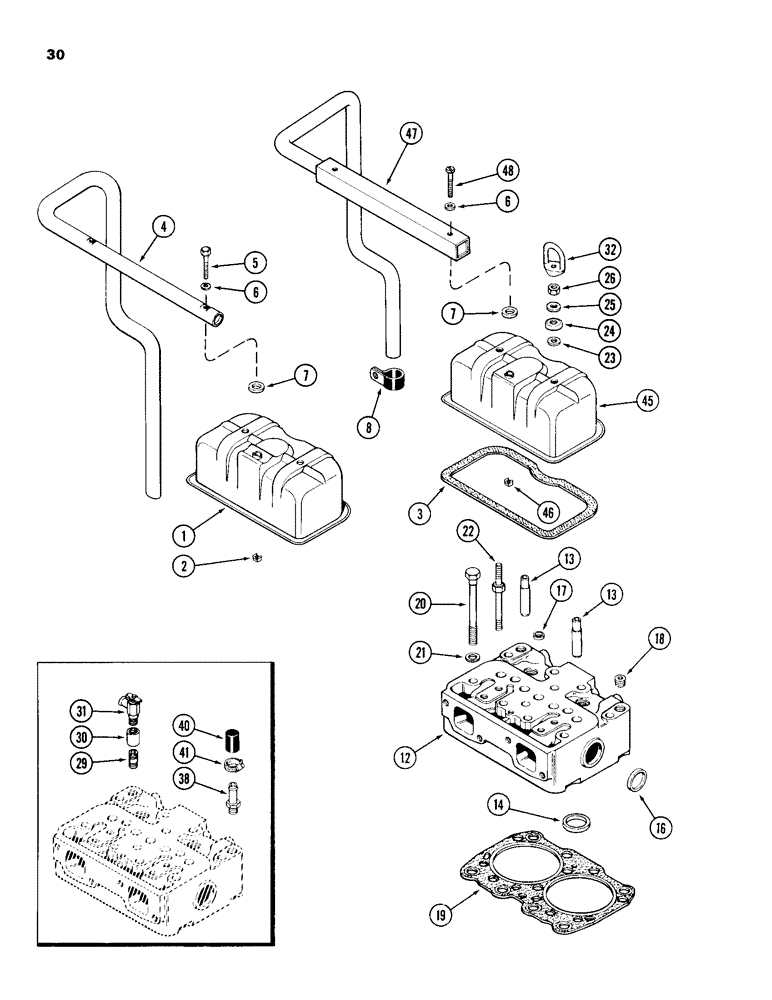

Запчасти Case 680H (030) - CYLINDER HEAD AND COVER, 336BD DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head (See Ref 45), Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - Tinnerman, 1/4 inch NC

1шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

GASKET - cover (Replaces A65734)

2шт.

4

A64994

TUBE

TUBE - breather (See Ref 47)

1шт.

5

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT - hex, 1/4 NC x 2-1/2 inch

2шт.

6

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - tube, upper (Replaces A34133)

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower

2шт.

8

D34033

CLAMP

CLAMP - breather tube (to flywheel housing)

1шт.

12

A67352

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Casting No. A67351), Includes: Ref. 13, 14, 16 and 17

2шт.

12

AR148939

REMAN-CYLINDER HEAD

Cylinder Head

2шт.

12

AC148939

CORE-CYLINDER HEAD

Return Number

2шт.

13

A57448

GUIDE

GUIDE - intake and exhaust valves (Replaces A41783)

4шт.

14

A58619

INSERT

INSERT - exhaust valve seat

2шт.

16

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - cup type, 1-3/8 inch (35 mm)

2шт.

17

A58620

PLUG,Cup, 3/4", Stainless

PLUG - cup type, 3/4 inch (19 mm)

3шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - hex socket head, 3/8 inch PT

3шт.

19

REF

INSTRUCTION

GASKET - cylinder head, with fire rings (See Figure 50)

2шт.

20

A62732

STEP BOLT

BOLT - cylinder head

20шт.

21

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - head bolt

20шт.

22

A67121

STUD

STUD - cylinder head cover and rocker arm bracket, 6-7/16 inch

4шт.

23

A142098

GROMMET

GROMMET - cover stud (Replaces A23684 gasket)

4шт.

24

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - cover stud (Replaces A23683)

4шт.

25

195-29

WASHER,7/16"

WASHER - flat, 15/32 x 59/64 x 1/16 inch (12 x 24 x 2 mm)

4шт.

26

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

4шт.

321-6038

DECAL

SPARE PART DECAL - engine data (on cover)

1шт.

29

221-1158

FITTING

NIPPLE - 3/8 PT x 1 inch

1шт.

30

221-337

COUPLING,Pipe, 3/8" NPT

COUPLING - nipple to valve

1шт.

31

A16764

VALVE

VALVE ASSEMBLY - water shut-off

1шт.

32

A60567

EYE

EYE - engine lifting (If equipped)

2шт.

38

2170376

CONNECTOR - straight, 3/8 PTx 5/8 inch hose barb end

1шт.

40

A46201

PLUG

PLUG - tube, rubber

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 44 mm)

1шт.

45

A166170

COVER

COVER ASSEMBLY - cylinder head (If equipped)

2шт.

46

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - Tinnerman, 1/4 inch NC

1шт.

47

A166174

TUBE

SPARE PART TUBE - breather (If equipped)

1шт.

48

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

SCREW - pan head machine, 1/4 NC x 2-1/2 inch

2шт.
