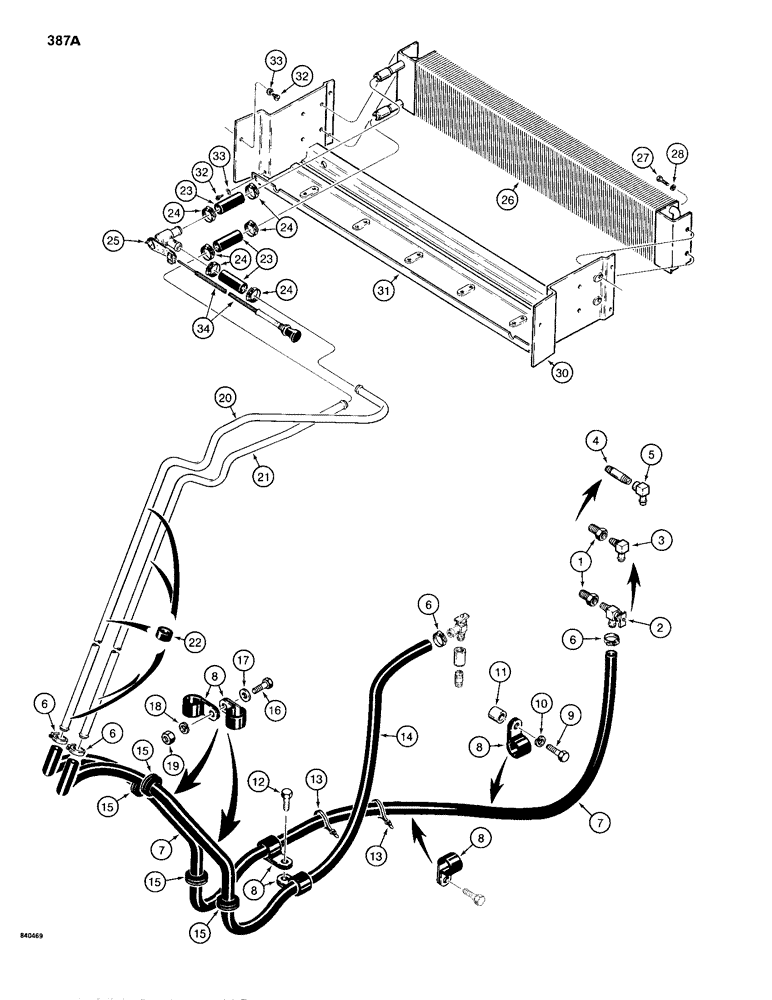

Запчасти Case 680H (387A) - CAB HEATING SYSTEM, USED ON TRACTOR SN 9145600 AND ON TRAC. S/N 945602 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

At engine water pump, if used

1шт.

2

A16764

VALVE

SHUTOFF - at engine water pump, used with Ref. 1 reducer, if used

1шт.

3

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

BARB, used with Ref. 1 reducer, if used

1шт.

4

221-1223

PIPE,Nipple, 3/4" NPT x 6"

At engine water pump, used with Ref. 5 elbow, if used

1шт.

5

L110922

SPARE PART STEM - 90 degree, special, used with Ref. 4 nipple, if used

1шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

Adjustable

4шт.

7

REF

INSTRUCTION

HOSE - heater return to water pump, 138" (3505 mm) long, cut from A42610 bulk

1шт.

8

R21385

CLAMP

P-style, heater hoses

8шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

B18083

BUSHING

SPACER - clamp mounting

1шт.

12

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

1шт.

14

REF

INSTRUCTION

HOSE - heater supply, 88" (2235 mm) long, cut from A42610 bulk

1шт.

15

A7808

GROMMET

Hoses at floor plate and fender

4шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

17

95-5

WASHER,3/8" x 7/8" x .083"

Flat, 5/16"

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

F44939

HEATER TUBE

Return

1шт.

21

F44938

HEATER TUBE

Supply

1шт.

22

F64347

SEAL

INSULATOR - tubes

5шт.

23

REF

INSTRUCTION

HOSE - heater tubes to flow control valve and core, 2" (51 mm) long, cut from A42610 bulk

3шт.

24

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

Adjustable

6шт.

25

F63865

VALVE

FLOW CONTROL - heater

1шт.

26

F45204

HEAT-EXCHANGER

CORE , interchangeable with F44713 and F45210 heater cores

1шт.

27

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

29

F96715

SHEET

BRACKET - heater core, one-piece, no longer used, order Refs. 30 and 31, not shown

1шт.

30

F96821

BRACKET

Heater core

1шт.

31

F96820

PANEL

Lower, heater core

1шт.

32

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Slotted

6-8шт.

33

193-6

LOCK WASHER,Ext Tooth, #10

6-8шт.

34

REF

INSTRUCTION

CABLE - heater control, see Figure 374

1шт.

A42610

LARGE HOSE

HOSE,LARGE Bulk, 50 ft (1524 cm) long

1шт.
