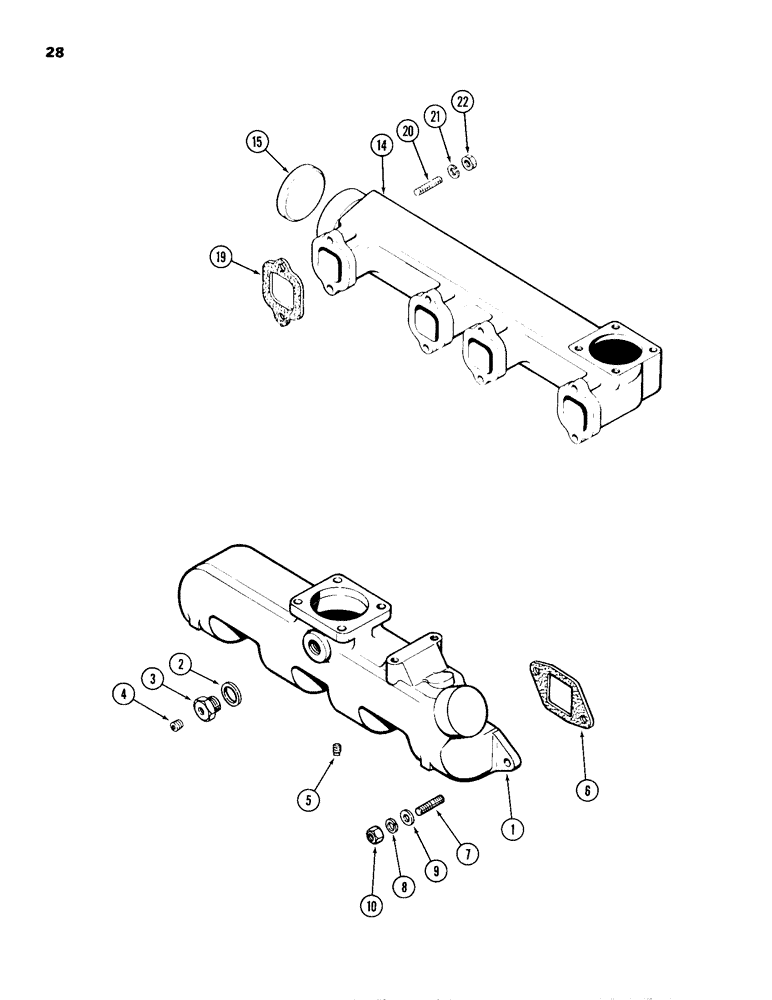

Запчасти Case 680H (028) - MANIFOLDS, 336BD DIESEL ENGINE, INTAKE MANIFOLD, EXHAUST (02) - ENGINE

1

A154149

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 2 - 4

1шт.

2

A20916

MANIFOLD GASKET

GASKET - heater hole plug

1шт.

3

L10283

PLUG

- heater hole

1шт.

4

221-1849

PLUG

- hex socket head pipe, 1/8 inch PT

1шт.

5

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head pipe, 1/8 inch PT

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

4шт.

7

A59077

STUD

- intake manifold, 1-13/16 inch

8шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

195-25

WASHER,3/8"

- flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

8шт.

10

25-166

NUT,3/8"-16, G5, Hvy

- hex, 3/8 inch NC

8шт.

14

A58749

MANIFOLD

- exhaust

1шт.

15

A58750

PLUG,Cup, 3 1/4", Stainless

- cup type, 3-1/4 inch (83 mm)

1шт.

19

A58895

GASKET

- exhaust manifold (Replaces A58666)

4шт.

20

A59077

STUD

- exhaust manifold, 1-13/16 inch

8шт.

21

92-6

LOCK WASHER,3/8"

8шт.

22

131-903

NUT,3/8"-16

NUT - hex Seez-Pruf, 3/8 inch NC

8шт.
